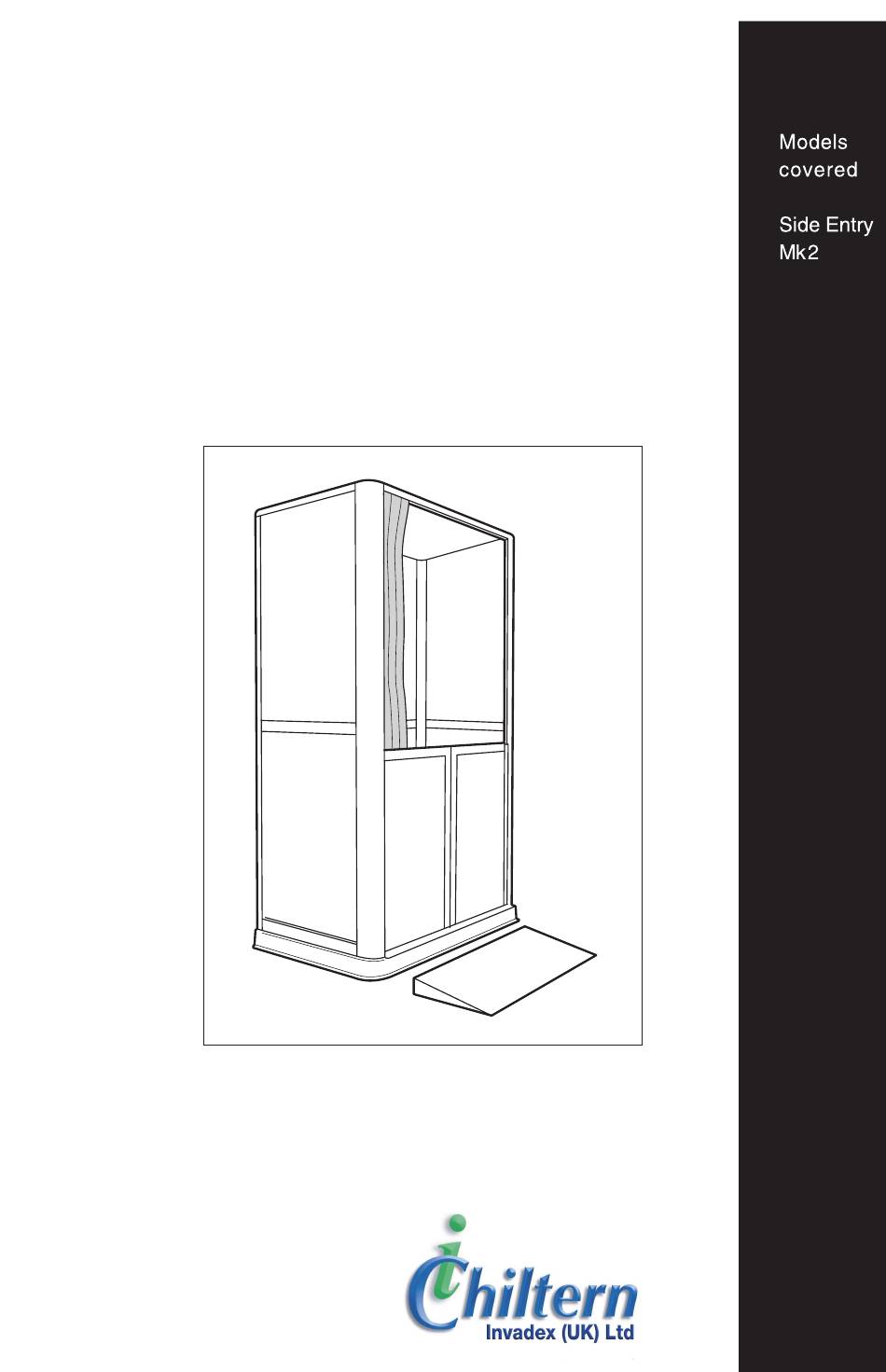

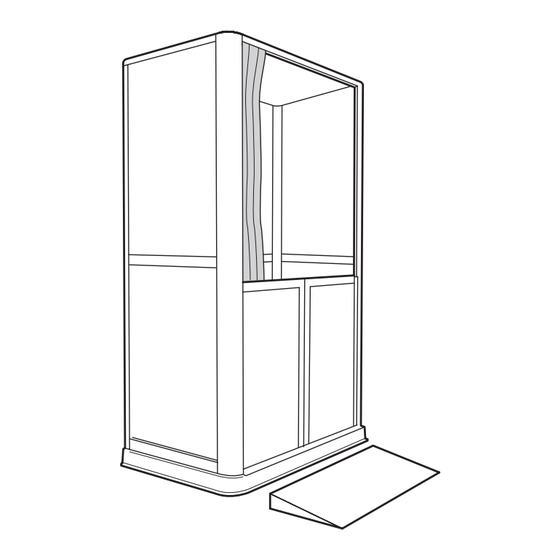

Page 1 Side Entry Mk2 Shower Cubicle user and installation guide...
Page 2: Table Of Contents
User Guide Contents Installation ............2 Cleaning & Maintenance ....... 14 Troubleshooting ..........15 Operation Guide ..........16 Accessories ............ 17 Spare parts ............. 18 Warranty ............20 These products have been designed to the highest standards with safety, strength and quality in mind.
Page 3: Installation
Permissible pressure variations 1 bar - 10 bar (14.5 p.s.i. - 145 p.s.i.). Waste Water (fig 1) The Chiltern Invadex Shower has a 12 volt pump positioned in the rear left hand corner of the cabinet. It pumps the waste water out of the base to a waste stack similar to that used by a washing machine.
Page 4 Fig 1 Fitting Instructions for Side Entry MK2 Shower Toilet The 102mm (4”) pipe in Chiltern Invadex Side Entry MK2 Shower Toilets is connected through the side panel. The toilet waste pipe must also be connected when the side panel is fitted.
Page 5 Electrical shower-(Please refer to manufacturers instructions - supplied separately) Pumped waste-Cable supplied (do not replace cable if faulty. Please call your nearest Chiltern Invadex regional office for replacement) Waste pump technical specification operating voltage 12 volts DC (via transformer) Current rating 3.0 amps maximum...
Page 6 User Guide Electrical Installation Shower & pumped waste The correct wiring installation for the electric shower and pumped waste is shown in Fig 2. Please pay particular attention to the wire sizes. Auxiliary output 230v AC for eg. 230v fan supply Yellow/Green Black...
Page 7 Chiltern Invadex Side Entry MK2 Installation details (use fig 3 with instructions) Fig 3...
Page 8 User Guide Note: Assembling the cubicle in situ is usually easier than moving the assembled unit. 1. Fig 4.0-Ensure that the shower tray is placed on the floor and is level along its length and width. Also ensure that the 4x30mm blocks are inserted in the bottom of all 4 corner...
Page 9 Chiltern Invadex Side Entry MK2 3. Fig 4.2 Locate the large rear back panel (3) into the channel in the corner post. Fig 4.2 4. Fig 4.3 Slide in the second corner section. This section seat fixing plate (with 4 holdes) and is blank i.e without any door...
Page 10 User Guide 5. Fig 4.4 Locate the side panel (5) into the channel in the corner post. Fig 4.4 6. Fig 4.5 Position the corner post (6) repeat as instruction 4. Fig 4.5...
Page 11 Chiltern Invadex Side Entry MK2 7. Fig 4.6 Locate the side panel (with the shower unit on it) (8) into the corner post channel (1) and locate corner post (7). Fix as previous. Fig 4.6 8. Fig 4.7 Position the...
Page 12 The seat can then be fitted using the screws provided. Please contact your Chiltern Invadex regional office if a Fig 4.8 seat is required, but has not been ordered.
Page 13 Chiltern Invadex Side Entry MK2 Door assembly - Swinging doors (standard) 10. Fig 4.9 Slide the doors into the corner posts (6,7), ensuring that the doors open outwards. Secure with the screws and slot covers provided (see Inset). Check that the doors open...
Page 14 User Guide Pumped waste assembly To waste pipe 11. Fig 4.10 Push outlet (waste) hose through the hole in the corner post (1) and secure it to the stack pipe moulded in the base. Do not stretch the waste pipe, allow for possible adjustment.
Page 15: Cleaning & Maintenance
Replace pump cover making sure that the pump cover touches the shower base. For performance regularly clean pump and shower head. Annual We recommend that the unit is serviced by a qualified Chiltern Invadex engineer. This will ensure that the unit complies with current health and safety regulations.
Page 16: Troubleshooting
For further assistance please telephone your nearest Chiltern Invadex Regional Office. Remember that the service calls made after the expiry of the guarantee will be chargeable.
Page 17: Operation Guide
Chiltern Invadex Side Entry MK2 Operation guide If a seat is fitted Fold down the seat, ensuring the feet are firmly placed on the shower tray, then transfer to the seat. All cubicles Pull the mains cord to provide power to the pump/shower.
Page 18: Accessories
User Guide Accessories Folding Shower seat Vinyl seat 445mm Flat padded 445mm 445mm Large horseshoe Large aperture 445mm 445mm Medium horseshoe Medium aperture 445mm 445mm Small horseshoe Small aperture...
Page 19: Spare Parts
Chiltern Invadex Side Entry MK2 Spare parts description part no Shower Base (pumped waste) IDISE03 Grab Rail - V/H (state panel and model) SHSU023SE2 Back Panel SHPA003SEMK2 Roof Light SHSU042 Standard Door SH00478SE2 Bifold Door* SHPA009BSE2 Trifold Doors* 1 SHPA009(L)(R) SE2...
Page 20 User Guide 5, 6, 7 Waste pump Detail...
Page 21: Warranty
Chiltern Invadex for the safety of this product. 6. Chiltern Invadex shall in no event be liable for any damages, costs or expenses arising from any claim made under this warranty (save for any legal liability of Chiltern Invadex for death or personal injury resulting from the company’s negligence in respect of its products).
Page 22 Please fill in the information below for future reference Dealers Name ................Address ................................... Post Code......... Telephone ............Your Serial Number is ........Date of purchase ......
Page 23 Chiltern Invadex (UK) Limited. Copyright © Chiltern Invadex (UK) Ltd The design of the product shown in this guide is vested in Chiltern Invadex (UK) Ltd and should no t be copied or reproduced in anyway whatsoever without the express permission in writing of Chiltern Invadex (UK) Ltd.
