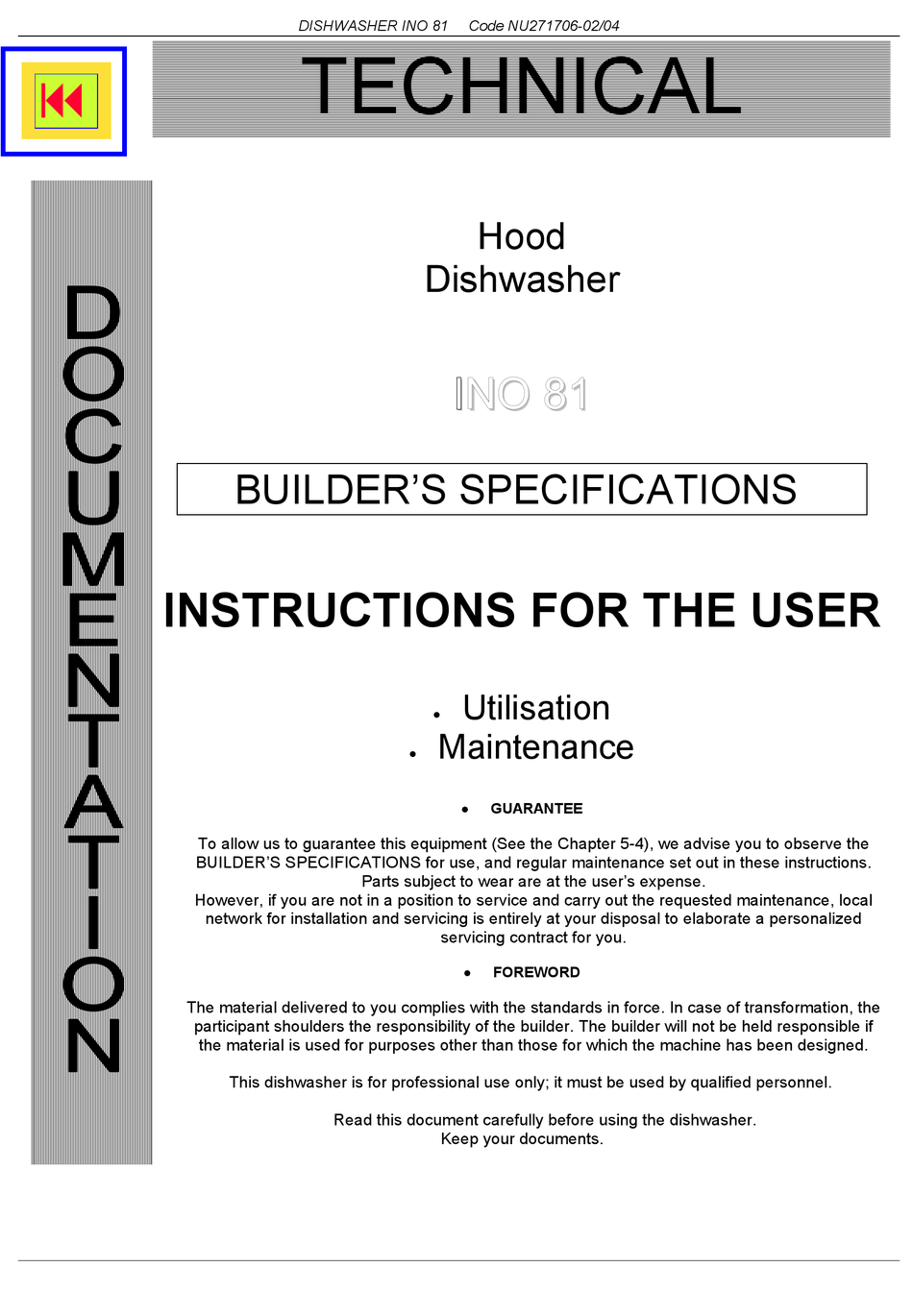

DISHWASHER INO 81
Code NU271706-02/04
TECHNICAL
9
Hood
Dishwasher
INO 81
BUILDER'S SPECIFICATIONS

INSTRUCTIONS FOR THE USER

Utilisation
•
Maintenance
•
•
GUARANTEE
To allow us to guarantee this equipment (See the Chapter 5-4), we advise you to observe the
BUILDER'S SPECIFICATIONS for use, and regular maintenance set out in these instructions.
Parts subject to wear are at the user's expense.
However, if you are not in a position to service and carry out the requested maintenance, local
network for installation and servicing is entirely at your disposal to elaborate a personalized
servicing contract for you.
•
FOREWORD
The material delivered to you complies with the standards in force. In case of transformation, the
participant shoulders the responsibility of the builder. The builder will not be held responsible if
the material is used for purposes other than those for which the machine has been designed.
This dishwasher is for professional use only; it must be used by qualified personnel.
Read this document carefully before using the dishwasher.
Keep your documents.

Advertisement

loading
Need help?

Need help?

Do you have a question about the INO 81 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bonnet INO 81

Summary of Contents for Bonnet INO 81

  • Page 1: Instructions For The User

    DISHWASHER INO 81 Code NU271706-02/04 TECHNICAL Hood Dishwasher INO 81 BUILDER’S SPECIFICATIONS INSTRUCTIONS FOR THE USER Utilisation • Maintenance • • GUARANTEE To allow us to guarantee this equipment (See the Chapter 5-4), we advise you to observe the BUILDER’S SPECIFICATIONS for use, and regular maintenance set out in these instructions.
  • Page 2 DISHWASHER INO 81 Code NU271706-02/04 USER’S INSTRUCTIONS – USER’S INSTRUCTIONS – USER’S INSTRUCTIONS DISHWASHER INO 81 SUMMARY Technical characteristics Installation Putting in service Practical recommendations for use Maintenance Electrical diagrams Hydraulic circuits Other parts necessary for after sales Emergency parts...

  • Page 3: Water Connection

    A220625 EC – A220626 EF Net weight (kg) Gross weight (kg TOTAL INSTALLED POWER (kW) INO 81 hot water (55°C) = 11 kW INO 81 cold water (20°C) = 18.5 kW Wash pump = 2 kW – Rate : 700l/min 42m³/h Option : drain pump = 0.09 kW...
  • Page 4 DISHWASHER INO 81 Code NU271706-02/04 2. INSTALLATION - INSTALLATION - INSTALLATION - INSTALLATION - INSTALLATION Regarding the nature and position of connections, refer to “Technical characteristics” at the beginning of the instructions, chapter 1. 2.1 GENERAL REQUIREMENT The installation, modification or repair of the device must be carried out in a workmanlike manner by a specialist.
  • Page 5 DISHWASHER INO 81 Code NU271706-02/04 2.4 CONNECTION Electrical connection * Electrical connection Before connecting the dishwasher, make sure that the voltage and frequency of the electrical network correspond to those indicated on the manufacturer’s nameplate fitted on the dishwasher. Before connecting to the electrical network, make sure that the supply line is not switched on.
  • Page 6 DISHWASHER INO 81 Code NU271706-02/04 Drainage connection Drainage pump option: When connecting the drainage flexible hose, take the following precautions: • The bend in the flexible hose must be located between 800 to 1000 mm above the floor. • The endings of the flexible hose must be above the water level in the tank.
  • Page 7 DISHWASHER INO 81 Code NU271706-02/04 3. PUTTING IN SERVICE – PUTTING IN SERVICE – PUTTING IN SERVICE – PUTTING IN SERVICE 3.1 DESCRIPTION OF THE CONTROL PANEL ON/OFF LIGHT INDICATOR POS. HEATING INDICATOR SELECTOR : POS UTTING IN SERVICE YCLE SELECTION POS.
  • Page 8 DISHWASHER INO 81 Code NU271706-02/04 3.2. AT THE BEGINNING OF THE SERVICE, MAKE SURE THAT: • The supply of rinsing product is sufficient. • The water inlet valve is opened. • The drainage control knob POS. 7 (option) is in the OUT position.
  • Page 9 DISHWASHER INO 81 Code NU271706-02/04 3.3. BEFORE THE SERVICE. Carry out these operations BEFORE washing the first rack of dirty dishes: • 15 minutes beforehand (if your machine is supplied with hot water) • 1 hour before (if your machine is supplied with cold water).
  • Page 10 DISHWASHER INO 81 Code NU271706-02/04 3.5. AT THE END OF SERVICE. Open the hood. Remove the overflow tube without pulling it out of the filter ; if the dishwasher is equipped with the optional tank drainage pump, press the drainage control knob POS. 8 (position “ON”).The drainage light indicator POS.
  • Page 11 DISHWASHER INO 81 Code NU271706-02/04 4. PRACTICAL RECOMMENDATIONS FOR USE – PRACTICAL RECOMMENDATIONS FOR USE 4.1 WASHING DISHES Remove all food waste or remains or other from the dishes. Empty the recipients. Certain dishes with food stuck in Racks for plates them must be previously soaked to remove it.
  • Page 12 DISHWASHER INO 81 Code NU271706-02/04 5 MAINTENANCE - MAINTENANCE - MAINTENANCE - MAINTENANCE - MAINTENANCE - To enable us to guarantee this equipment, it is necessary to carry out the following maintenance operations: 5.1. RECOMMENDATIONS 5.1.1. At the end of the week in addition to the daily operations Brush and wash the interior of the machine to remove the greasy film which may adhere to the walls.
  • Page 13 DISHWASHER INO 81 Code NU271706-02/04 To enable us to guarantee this equipment, it is necessary to carry out the following maintenance operations: 5.1.5 Dismantling of the rotary arms to free a choked nozzle * Partly unscrew the nut, pull the rotary arm by bearing on the nut then finish unscrewing the nut and remove the rotary arm.
  • Page 14 DISHWASHER INO 81 Code NU271706-02/04 5.3. THE MOST CURRENT CASES OF CORROSION. Cleaning tiling. The cleaning of tiling (at completion of a building yard or on regular cleaning) is often done with very aggressive products. If such products are carelessly sprayed under pressure, splashes at the bottom of the machines lead to the corrosion of bottom and trimmings.
  • Page 15 DISHWASHER INO 81 Code NU271706-02/04 HE USE OF A WATER JET OR A HIGH PRESSURE HOSE IS STRICTLY PROHIBITED N NO CASE MUST THE DISHWASHER BE WASHED WITH A WATER JET HE GUARANTEE CANNOT COVER THE PROBLEMS IN CONNECTION WITH THE NON...
  • Page 16 DISHWASHER INO 81 Code NU271706-02/04 Chap. 6 – Page 1...
  • Page 17 DISHWASHER INO 81 Code NU271706-02/04 Chap. 6 – Page 2...
  • Page 18 DISHWASHER INO 81 Code NU271706-02/04 Chap. 7 – Page 1...
  • Page 19 DISWASHER INO 81 Code NU271706-02/04 OTHER APRTS NECESSAY FOR AFTER SALE SERVICE 907535 White light indicator 907534 Amber light indicator 989301 Rivet of mass 907533 Green light indicator 907510 Wire protection ring 900054 Switch not maintained 900073 Relay 900053 Maintained switch...

  • Page 20: Washing System

    DISHWASHER INO 81 Code NU271706-02/04 8. OTHER PARTS NECESSARY FOR AFTER SALE 917054 Grooved bush 916206 Tube 916150 Suction pipe 916147 Upper delivery elbow 916148 Upper delivery pipe Upper rotary arm flat gasket 983654 Flushing pipe connector 981268 Water supply inlet...
  • Page 21 DISHWASHER INO 81 Code NU271706-02/04 8. OTHER PARTS NECESSARY FOR AFTER SALE 11-19 914136 Double stage manostat 200/210 220/190 981204 Air trap (body) 901019 Protective tube + Nut 966015 Protective tube O’ring 901300 Manostat 60/30 014647M Overflow tube 966011 O’ring...
  • Page 22 DISHWASHER INO 81 Code NU271706-02/04 8. OTHER PART NECESSARY FOR AFTER SALE 241428 Tube fram 989032 Stainless steel H 8x60 srew 900087 Magnet 981273 Bearing 981280 Hood handle 985003 Spring 989103 Stainless steel HU 8 nut 241448 Threaded rod 983008...
  • Page 23 DISHWASHER INO 81 Code NU271706-02/04 9. EMERGENCY PARTS –EMERGENCY PARTS - EMERGENCY PARTS DESCRIPTION CODE Qty. Supporting thrust 983562 Lower bearing block 981263 Upper bearing block 981257 Locking screw 983563 Product dosing unit 914207 Tank inmersion heating element. 903101 Superheater inmersion heating element : 9kw...
