Summary of Contents for Sonnet Digital Audio Acelec Model One

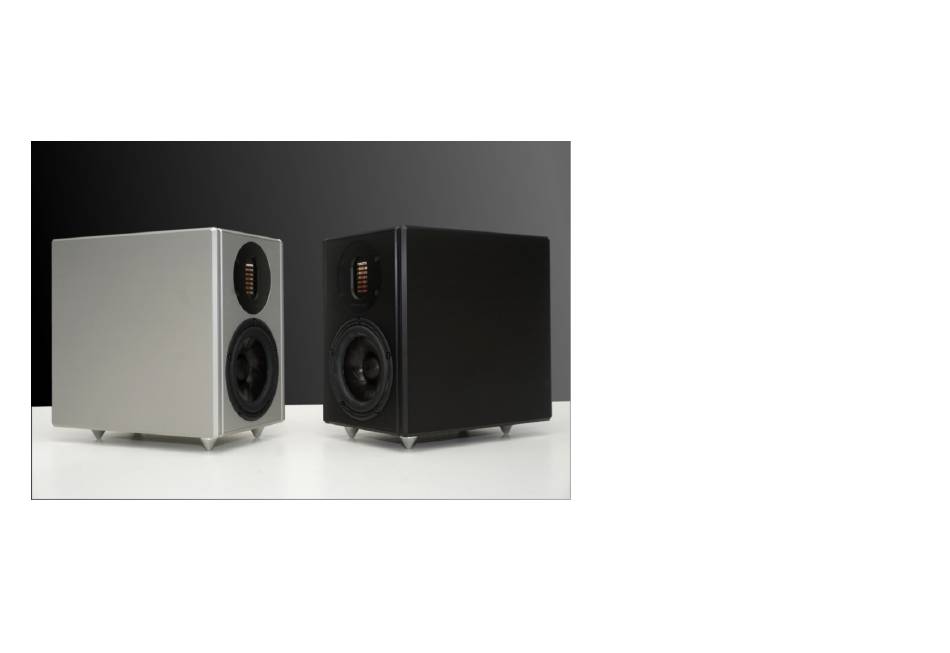

  • Page 1 aCeLeC Model One Model One Model One Model One Owner’s Manual...
  • Page 2 Acelec‘s passion for music. The Acelec brand is made under the hood of Sonnet Digital Audio and is one of very few companies who can realize such loudspeaker concepts through its own in-house development and production facilities.
  • Page 3 aCeLeC Model One Model One Model One Model One Introduction The initial set-up of the Model One loudspeaker is relatively easy. Please take your time reading the guidelines and more detailed instructions on the following pages of this manual after completing the first four steps as listed below.

  • Page 4: Safety Instructions

    aCeLeC Model One Model One Model One Model One Safety Instructions HIGH SOUND PRESSURE LEVELS CAUTION Listening to high sound pressure levels over a longer period of time may harm your hearing.  To avoid auditory effect do not listen to high sound levels over a longer period of time.
  • Page 5 aCeLeC Model One Model One Model One Model One Connecting Connecting the loudspeakers Connect a two-pole (+/-) loudspeaker cable to the binding posts, located at rear of the cabinet (see Fig. 1). The high quality, gold plated binding posts can accommodate different connection systems: –...
  • Page 6 aCeLeC Model One Model One Model One Model One Connecting Connect the other cable ends to the loudspeaker outputs of your switched off power amp (see Fig. 2). Note Please make sure that the red marked post of the speaker is connected to the red marked output of the amp, and the white or black marked post to the white or black marked output accordingly.
  • Page 7 aCeLeC Model One Model One Model One Model One Positioning Acelec loudspeakers consist of classic bass reflex loudspeaker designs with no unusual or extraordinary positioning demands. Every room will still have its own particular sound characteristics. Any room is also shaped and decorated uniquely, and therefore remains independent regarding options for positioning loudspeakers.
  • Page 8 aCeLeC Model One Model One Model One Model One Positioning Distance to back and side walls Every loudspeaker not only disperses sound energy directly into the room, but also to the side and even backwards. As a result, time-delayed reflections occur and add to the original music signal.
  • Page 9 aCeLeC Model One Model One Model One Model One Positioning Floor-standing loudspeaker set-up The floor-standing models feature a special base construction, which offers both an ideal performance and mechanical basis. Integrated into the base plinth are four individual spike assemblies. These stabilize the cabinet on an extremely small contact area, and therefore prevent any wobbling while offering optimal resonance control.
  • Page 10 aCeLeC Model One Model One Model One Model One Positioning Loudspeaker Toe-In Depending on your personal listening environment and room dimensions, the loudspeakers may be angled in towards the listening area to focus the sound radiation. This positioning will typically improve imaging and is especially recommended by Acelec (see Fig.

  • Page 11: Running-In / Care & Maintenance

    Any damage caused under such circumstances is not covered by the Acelec warranty and is easily avoided in the first place by consulting Sonnet Digital Audio for advice regarding the choice of amplifier.
  • Page 12 aCeLeC Model One Model One Model One Model One Running-in / Care & Maintenance The Model One requires no special treatment apart from the kind of careful handling you would normally apply to any high tech product in your home. AGGRESSIVE CLEANING FLUIDS CAUTION All-in-one cleaning materials, aggressive cleaning fluids or special furniture polishes...

  • Page 13: Technical Specs

    Model One Model One Model One Technical specs. Acelec Model One System Format 2-way Housing 15 mm bituminized aluminum Bass Alignment Low Q alignment Vented port system. Frequency Response (-6 dB) 45 Hz – 35 kHz Max. deviation ± 2.5 dB...

  • Page 14: Warranty

    Acelec dealer. All performance criteria are strictly controlled. In the whole production procedure – from raw materials to the final assembly – Acelec thoroughly inspects all parameters along every step of way. acelec is a brand name of: Sonnet Digital Audio BV Daviottenweg 9-11, 5222 BH 's-Hertogenbosch The Netherlands https://www.acelec.nl...
