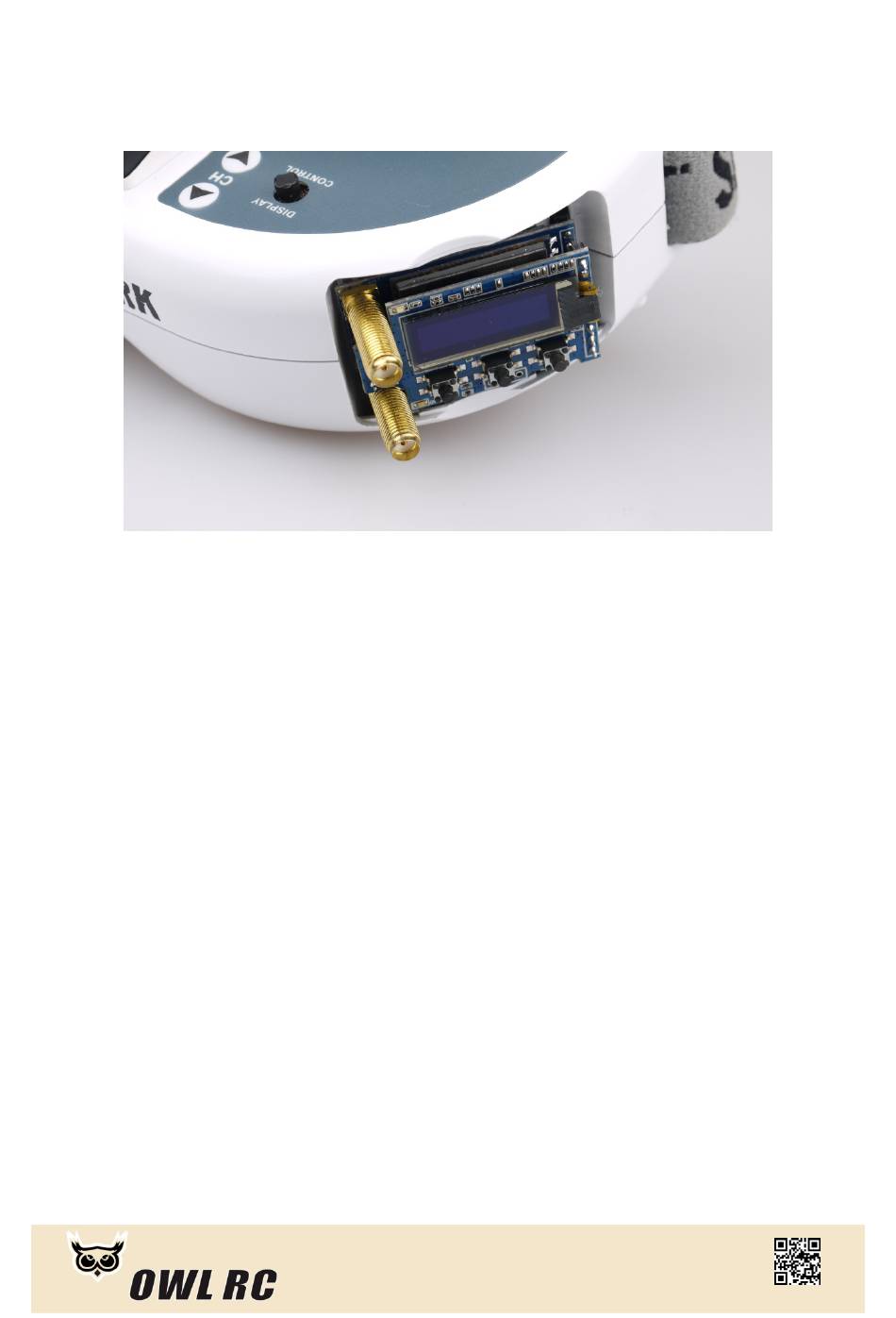

Page 1: User Manual
OWLRX 5.8GHz Goggle Receiver User Manual Ver 1.1 www.owl-rc.com... - Page 2 Introduction OwlRX is an improved diversity receiver that made to provide stable video feed in complicated environments such as indoor, forest or structures with high rate of blocking and multi-pathing areas. How OWLRX work The reason OwlRX performs better than most receivers on market it that...
- Page 3 Specification • Size: 42 * 25 * 23mm • Weight(net): 23g • Compatibility: All Fatshark series goggles (V1,V2,V3,HD1,HD2,HD3,SE,HDO and Attitude V3, V4) • Interface: Touch buttons * 3, 0.91" 128x32 OLED screen, Micro-USB • OSD: Yes • Firmware Updatable: Yes •...
-
Page 4: Main Menu
Main Menu Long press “Select Button” into Main menu Channel: Popular, preset channels Frequency : Free channel selecting ( Stepping 1/10Mhz) Favorites : A folder list of all collected Channels Band Scan: Scan occupied channels or interference from local environment Finder : Track the signal by using bottom Rx. - Page 5 Channel Channel mode includes preset channels as most of video transmitter supported. The channel number x1-x8 is list on the left and signal strength is list on the right. The heart icon means this channel has been added to the favorites list. Up/left buttons Long press: select previous bands Short press: select previous channel...
- Page 6 Frequency Frequency mode is designed for freely chooses any of frequencies that owlrx supported. Stepping precision is 1Mhz when left/right button is pressed. It shows the Channel number if the chosen frequency meet to the preset channel. Rssi A and Rssi B shows signal strength of present frequency .
- Page 7 Favorites Favorites folder lists channels has been marked as favorite on channel mode. Favorites folder can support a maximum of 8 favorite channels. it allows you fast switching between collected channels. Up/left buttons Short press: select previous channel Select buttons Long press: back to main menu Short press: add/remove present channel from favorites folder Down/right buttons...
-
Page 8: Band Scan
Band Scan Band Scan mode is ver y similar to channel mode. The difference is band scan mode allows you swiftly change frequency between bands by short pressing bottons. It also helps detect occupied channels or possible interference on surrounding area. Up/left buttons Short press: Switch to previous bands Select buttons... - Page 9 Finder On Finder mode, the receiver will turn to search mode by using bottom Rx, RSSI A(Top Rx is temporarily disabled)Therefore, patch antenna or any directivity antennas is highly recommended for bottom Rx. Up/left buttons Long press: select previous band Short press: select previous channel Select buttons Long press: back to main menu...
- Page 10 Diversity: when OFF, receiver works with only one reception module Insane: when OFF, owlrx will work as legacy diversity receivers OSD Menu: when OFF, there will be no OSD on goggles's screen OSD RSSI: when OFF, there will be no signal strength indicator on screen - Digits (right side);...
- Page 11 References Information Choice of Antennas: we highly recommended an omni antenna + patch antenna combination for OWLRX. This can cover close or long range flight on most of circumstances. OWLRX works better on goggles: owlrx requires part of analog processing in most of goggles, such as fatshark or skyzone.
