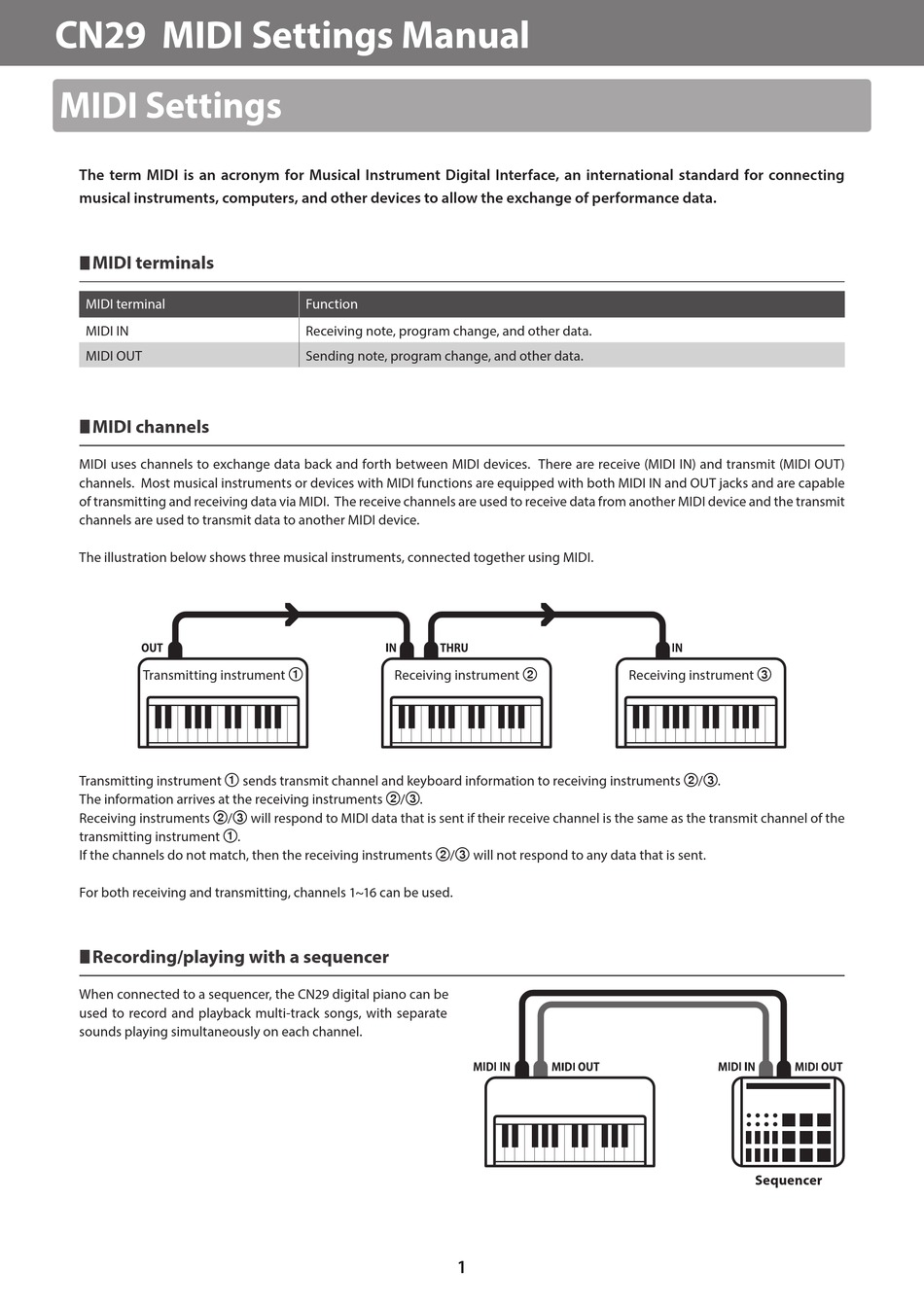

CN29 MIDI Settings Manual
MIDI Settings
The term MIDI is an acronym for Musical Instrument Digital Interface, an international standard for connecting
musical instruments, computers, and other devices to allow the exchange of performance data.
 MIDI terminals
MIDI terminal
MIDI IN
MIDI OUT
 MIDI channels
MIDI uses channels to exchange data back and forth between MIDI devices. There are receive (MIDI IN) and transmit (MIDI OUT)
channels. Most musical instruments or devices with MIDI functions are equipped with both MIDI IN and OUT jacks and are capable
of transmitting and receiving data via MIDI. The receive channels are used to receive data from another MIDI device and the transmit
channels are used to transmit data to another MIDI device.
The illustration below shows three musical instruments, connected together using MIDI.
Transmitting instrument a
Transmitting instrument a sends transmit channel and keyboard information to receiving instruments b/c.
The information arrives at the receiving instruments b/c.
Receiving instruments b/c will respond to MIDI data that is sent if their receive channel is the same as the transmit channel of the
transmitting instrument a.
If the channels do not match, then the receiving instruments b/c will not respond to any data that is sent.
For both receiving and transmitting, channels 1~16 can be used.
 Recording/playing with a sequencer
When connected to a sequencer, the CN29 digital piano can be
used to record and playback multi-track songs, with separate
sounds playing simultaneously on each channel.
Function
Receiving note, program change, and other data.
Sending note, program change, and other data.
Receiving instrument b
1
Receiving instrument c
Sequencer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CN29 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kawai CN29

  • Page 1 For both receiving and transmitting, channels 1~16 can be used.  Recording/playing with a sequencer When connected to a sequencer, the CN29 digital piano can be used to record and playback multi-track songs, with separate sounds playing simultaneously on each channel.
  • Page 2 Receive multiple channel MIDI data from a MIDI-connected * Please refer to the ‘MIDI Implementation Chart’ on page 9 for musical instrument or device. further information regarding the MIDI capabilities of the CN29 digital * Multi-timbral mode setting must be enabled. piano.
  • Page 3 CN29 MIDI Settings Manual MIDI Settings MIDI Channel (transmit/receive) The MIDI Channel setting allows the transmit/receive channel to be specified. The selected channel will function as both the transmit and receive channel (separate transmit/receive channels cannot be specified). 1. Changing the MIDI Channel setting...
  • Page 4: Send Program Change

    CN29 MIDI Settings Manual MIDI Settings Send Program Change The Send Program Change function allows a program change number (ranging from 1 to 128) to be sent to a MIDI device in order to change external device’s sound. 1. Sending a Program Change number...
  • Page 5: Local Control

    Local Control The Local Control setting determines whether the instrument will play an internal sound when the keys are pressed. This setting may be useful when using the CN29 digital piano to control an external MIDI device.  Local Control settings...
  • Page 6: Transmit Midi Program Change

    CN29 MIDI Settings Manual MIDI Settings Transmit MIDI Program Change The Transmit Program Change Number setting determines whether or not the CN29 digital piano will transmit program change information when sounds are changes.  Transmit MIDI Program Change settings Transmit PGM# Description The instrument will NOT transmit program change numbers when changing sounds.
  • Page 7 MIDI Settings Multi-timbre The Multi-timbre setting determines whether or not the CN29 digital piano is able to receive MIDI information on more than one MIDI channel simultaneously. This allows the instrument to play back multi-track, multi-timbral performance data sent from an external MIDI device.
  • Page 8: Program Change Number List

    CN29 MIDI Settings Manual Program Change Number List  Program Change Number List Multi-timbral mode Off Multi-timbral mode On Sound name Program number Program number Bank MSB Bank LSB SK Concert Grand EX Concert Grand Upright Piano Studio Grand Studio Grand 2...
  • Page 9: Midi Implementation Chart

    CN29 MIDI Settings Manual MIDI Implementation Chart  Kawai CN29 digital piano Date : March 2019 Version : 1.0 Function Transmit Receive Remarks At power-up Basic channel Settable 1 - 16 1 - 16 At power-up Mode 3 Mode 1 ** Omni mode is on at power-up.
