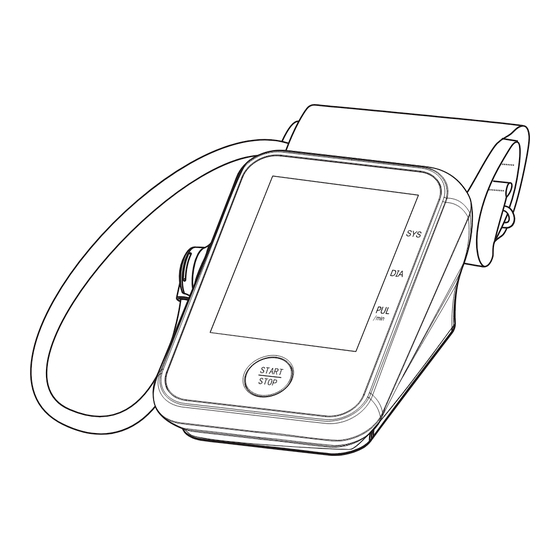

BLOOD PRESSURE MONITOR
BT104O
USER MANUAL
v1.0

Advertisement

Table of Contents
loading

Summary of Contents for Omada Health BT104O

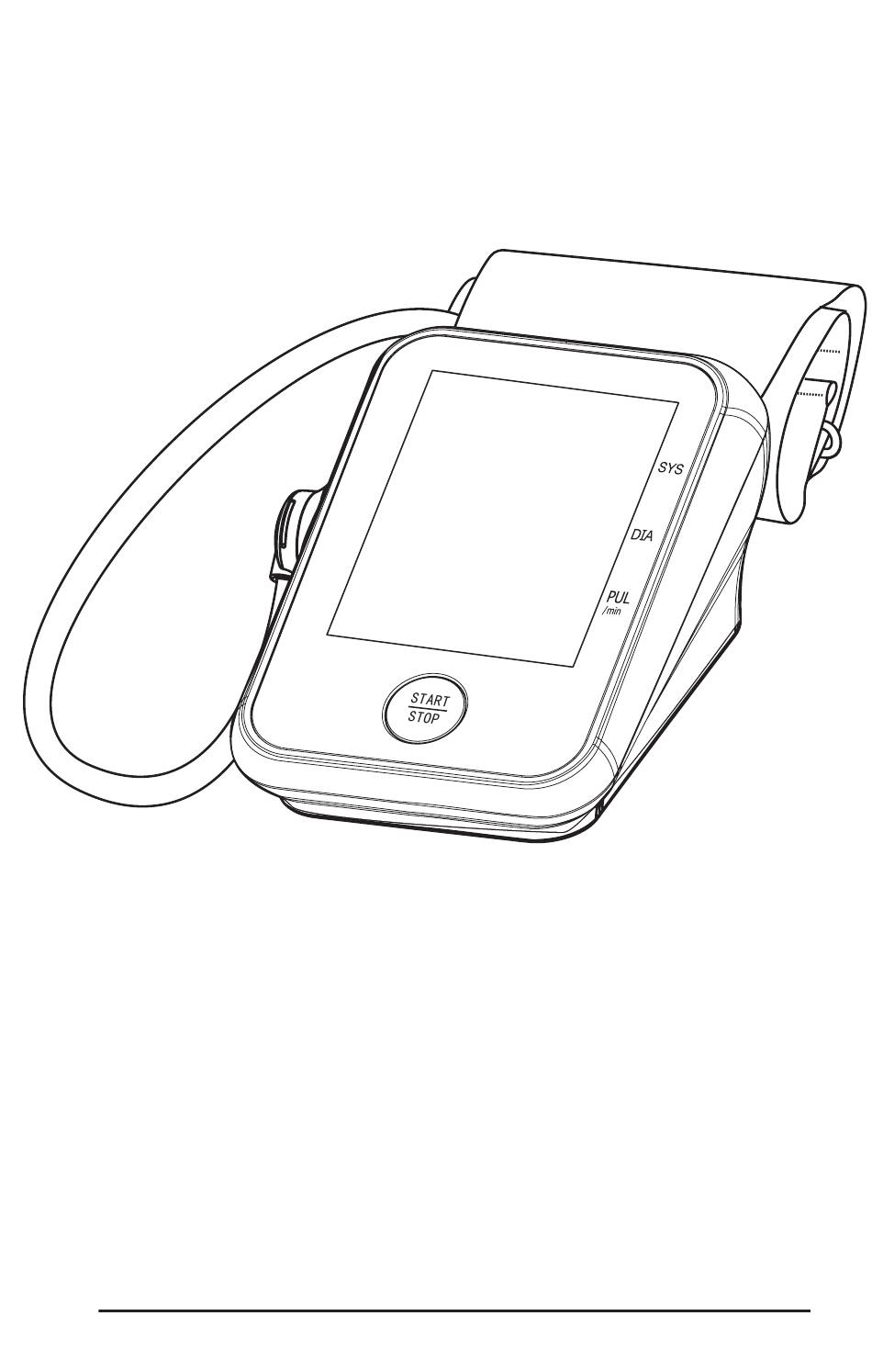

  • Page 1 BLOOD PRESSURE MONITOR BT104O USER MANUAL v1.0...

  • Page 2: Components Of The Device

    Components of the Device CUFF CUFF TUBE CUFF TUBE CONNECTOR DISPLAY START/STOP BUTTON SYSTOLIC MEASUREMENT IRREGULAR DIASTOLIC HEARTBEAT MEASUREMENT INDICATOR PULSE MEASUREMENT BATTERY BATTERY DOOR COMPARTMENT...

  • Page 3: Installing The Batteries

    Installing the Batteries If this is your first time using the device: 1. Slide open the battery door on the back of the device. 2. Install the batteries provided with the device. Follow the diagram inside the battery compartment for correct polarity — the springs should align with the negative sign on the batteries.

  • Page 4: Securing The Cuff

    Securing the Cuff 1. Plug the connector on cuff tube into the device. 2. Expose your left upper arm by removing or adjusting clothing and jewelry. Make sure blood flow is not constricted by a rolled up sleeve. 3. Open the cuff and loosen fully. 4.
  • Page 5 7. Align the Ф marker (located to the right of tube exit) with the center of your arm. Ф 8. Tighten the cuff evenly around your arm by pulling on the end — make sure the Ф marker stays aligned with the center of your arm.

  • Page 6: Taking A Measurement

    Taking a Measurement 10. Lay your arm on a table with your palm facing up. The cuff should be at the same height as your heart. Sit up straight and rest your feet flat on the ground. Make sure the tube is not kinked or pinched. 11.
  • Page 7 15. The device automatically transmits measurement results. During this process an indicator is shown in the middle of the display. Transmission Transmission in progress successful 16. When the measurement is successfully transmitted, the device shows the following indication before powering off Notes: •...
  • Page 8 Precautions • Only use Duracell alkaline AA batteries with this device as these offer the longest battery life. Other brands may not be able provide sufficient power for cellular data transmission. • This device is for adults. Do not use it on children unless otherwise instructed by a medical professional.

  • Page 9: Troubleshooting

    Troubleshooting Problem Possible Reason Resolution Device Batteries Replace batteries doesn’t power on completely drained. with new when START/STOP Duracell AA. button is pressed. Batteries inserted Remove batteries with incorrect and reinstall them Cuff does not polarity. making sure the + inflate.
  • Page 10 Problem Possible Reason Resolution Readings Cuff not positioned Review instructions correctly. on Securing the Cuff, too high or low. and retry measurement. Readings very significantly between Movement during Place your arm on measurements. measurement. a table with your palm facing up. The cuff should be at the same level as your heart.

  • Page 11: Error Codes

    Error Codes Code Description Resolution Er 1 Battery low Replace batteries with four Duracell AAs. Er 2 Movement Avoid moving or talking while taking detected a measurement. After securing the cuff and assuming the correct posture, consider waiting for five minutes to settle down before starting a measurement.
  • Page 12 Code Description Resolution Er 10 Subscription Contact customer support. suspended Er 11 Subscription terminated Er 15- System error Contact customer support.

  • Page 13: Storage And Maintenance

    Storage and Maintenance • Only use Duracell AA batteries with the device. • Store your device and cuff in a clean and dry place. • Avoid exposure to direct sunlight, moisture, extreme heat, cold or humidity. • Avoid exposure to vibration, shaking or other mechanical stresses.
  • Page 14 Symbols Symbol Description Type BF applied part Cuff circumference Date of manufacture Complies with FCC regulations Relative humidity range Caution: consult instructions for use Temperature range Do not dispose of this product as unsorted municipal waste, take it for recycling. Model number Serial number / IMEI Ingress Protection Effective against fingers...

  • Page 15: Technical Specification

    Technical Specification Model BT104O Measurement Oscillometric measurement Method Measurement Systolic pressure: 60 - 230 mmHg Range (8.0 - 30.7 kPa) Diastolic pressure: 40 - 130 mmHg (5.3 - 17.3 kPa) Pulse: 40 - 199 beats/min Rated Cuff 0 - 299 mmHg (0.0 - 39.9 kPa)

  • Page 16: Intended Use

    Intended Use This digital blood pressure monitor was designed to measure the blood pressure and heartbeat rate of adults with an arm circumference of 22 - 42 cm (9 - 17 inches). This device is intended for indoor, home use. Compliance Statement FCC ID: XMR201404UC15 This device complies with part 15 of the FCC Rules.
