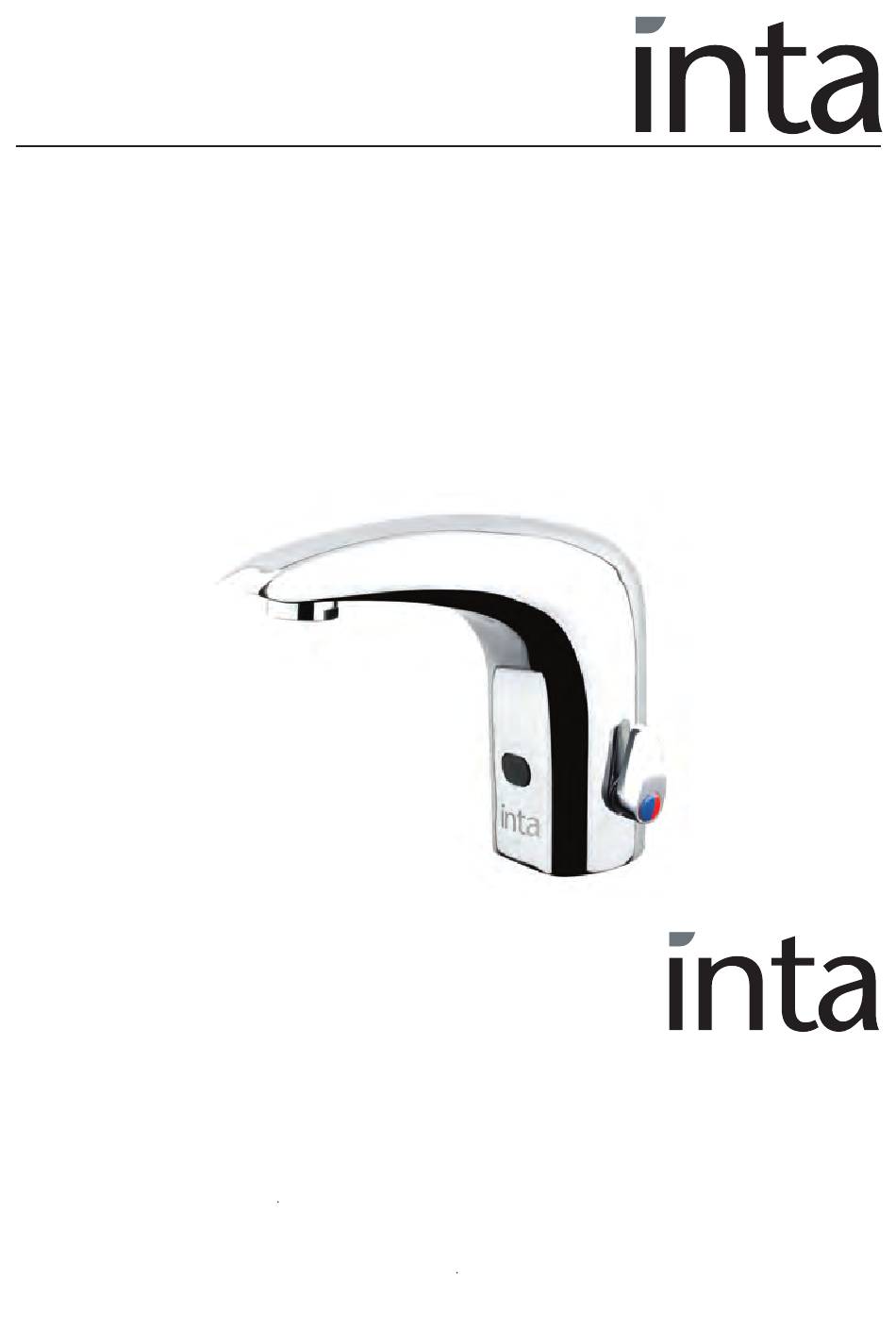

IR180CP.1 Battery Operated
Installation and Maintenance Instructions
In this procedure document we have endeavoured to make the
information as accurate as possible
We cannot accept any responsibility should it be found that in
any respect the information is inaccurate or incomplete or
becomes so as a result of further developments or otherwise
© Intatec Ltd. 2015
Infra Red Basin Tap
Intatec Ltd
Airfield Industrial Estate
Staffordshire
ST18 0PF
Tel: 01889 272 180
Fax: 01889 272 181
email: sales@intatec.co.uk
web: www.intatec.co.uk
Hixon
Advertisement
Table of Contents
Summary of Contents for Inta IR180CP.1
- Page 1 Infra Red Basin Tap IR180CP.1 Battery Operated Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the information as accurate as possible Tel: 01889 272 180 We cannot accept any responsibility should it be found that in...
-
Page 2: Technical Data
Before commencing remove all components from packaging and check each component with the contents list. Ensure all parts are present, before discarding any packaging. If any parts are missing, do not attempt to install your Inta shower valve until the missing parts have been obtained. Technical Data Operating water pressure range:... - Page 3 Dimensions 40.5 © Intatec Ltd 2015...
- Page 4 Components Item Qty Component Item Qty Component Stainless steel flexible hose Fixing kit Inlet nut Battery box Sealing washer Wall plug and fixing screw Power cable © Intatec Ltd 2015...
-
Page 5: Pre-Installation Information
Pre installation Information Warning • Do not install the tap facing a mirror or any other electronic system operated by an infra red sensor. • To prevent reflection problems, it is recommended to keep a minimum distance of 1.5m between the tap and other objects. •... -
Page 6: Safety Device
Activating 1 Check that the sensor windows is cleaned and remove any potential objects. 2 Open the isolation valves on the water supplies. 3 Fit the batteries inside the box/power supply unit, connect cable from the power supply unit (3) to the cable (8) from the tap. 4 The LED in the sensor window flashes: when it stops flashing the taps is ready for use. -
Page 7: Battery Replacement
Maintenance Cleaning TTENTION: Turn of the water supply at the ball valve before removing the filter. Some supplies can contain particles and impurities which could damage the solenoid valve. As part of package, a water supply filter is included which must be kept clean to ensure maximum water flow. -
Page 8: Warranty
Warranty Limited Warranty This product is covered by a limited warranty for one year from the date of purchase. During this period Intatec Ltd undertakes, at its option, to repair or replace any faults caused by defective material or manufacturing that may arise (see Intatec Warranty). The warranty does not cover dame caused by;...
