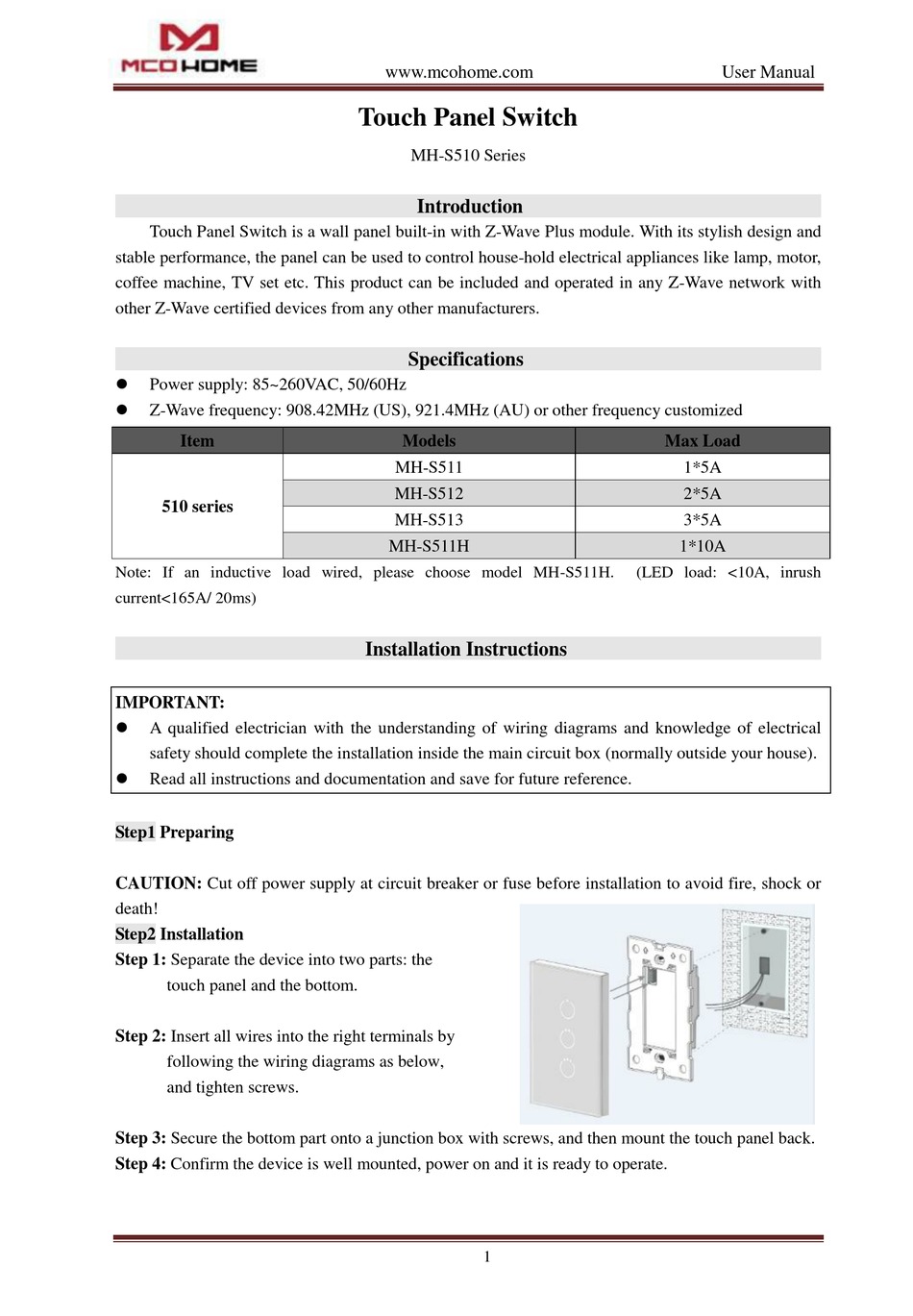

Touch Panel Switch is a wall panel built-in with Z-Wave Plus module. With its stylish design and
stable performance, the panel can be used to control house-hold electrical appliances like lamp, motor,
coffee machine, TV set etc. This product can be included and operated in any Z-Wave network with
other Z-Wave certified devices from any other manufacturers.
Power supply: 85~260VAC, 50/60Hz
Z-Wave frequency: 908.42MHz (US), 921.4MHz (AU) or other frequency customized
Item
510 series
Note: If an inductive load wired, please choose model MH-S511H.
current<165A/ 20ms)
IMPORTANT:
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete the installation inside the main circuit box (normally outside your house).
Read all instructions and documentation and save for future reference.
Step1 Preparing
CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock or
death!
Step2 Installation
Step 1: Separate the device into two parts: the
touch panel and the bottom.
Step 2: Insert all wires into the right terminals by
following the wiring diagrams as below,
and tighten screws.
Step 3: Secure the bottom part onto a junction box with screws, and then mount the touch panel back.
Step 4: Confirm the device is well mounted, power on and it is ready to operate.
www.mcohome.com
Touch Panel Switch
MH-S510 Series
Introduction
Specifications
Models
MH-S511
MH-S512
MH-S513
MH-S511H
Installation Instructions
1
User Manual
Max Load
1*5A
2*5A
3*5A
1*10A
(LED load: <10A, inrush
Advertisement
Table of Contents
Related Manuals for MCO Home MH-S510 Series
Summary of Contents for MCO Home MH-S510 Series
- Page 1 User Manual Touch Panel Switch MH-S510 Series Introduction Touch Panel Switch is a wall panel built-in with Z-Wave Plus module. With its stylish design and stable performance, the panel can be used to control house-hold electrical appliances like lamp, motor, coffee machine, TV set etc.
-
Page 2: Operation
www.mcohome.com User Manual Wiring (standard strip length: 6-8mm) MH-S511, MH-S511H MH-S512 MH-S513 Operation Add the device into Z-Wave network: 1. Set controller into ADD mode. Follow instructions provided by controller manufacturer. 2. Press and hold any key on the panel for 8 seconds or 3 clicks in quick succession. Note: If the ADD is successful, all INDICATION LEDs on the panel will flash 4 times. - Page 3 www.mcohome.com User Manual Correspondence between key and endpoint number: 1. First key correspond to endpoint 1. 2. Second key correspond to endpoint 2. 3. Third key correspond to endpoint 3. Multi endpoint command format: Byte Name COMMAND_CLASS_MULTI_CHANNEL MULTI_CHANNEL_CMD_ENCAP Source End Point Destination End Point COMMAND_CLASS_SWITCH_BASIC or COMMAND_CLASS_SWITCH_BINARY BASIC_SET/BASIC_GET or BINARY_SET/BINARY_GET...
- Page 4 www.mcohome.com User Manual Root device: 1.The gateway controls the root device to open, all end points will open 2.The gateway controls the root device to close, all end points will close 3.When End Point 1 opened, it will report opening status to root device. 4.When End Point 1 closed, it will report closing status to root device.
-
Page 5: Parameters Setting
www.mcohome.com User Manual Command Class supported: (Not supports S2) COMMAND_CLASS_ZWAVEPLUS_INFO, COMMAND_CLASS_TRANSPORT_SERVICE, COMMAND_CLASS_SECURITY, COMMAND_CLASS_SUPERVISION 2.End Point Device Command Class supported : (supports S2 unauthenticated level) COMMAND_CLASS_ASSOCIATION, COMMAND_CLASS_ASSOCIATION_GRP_INFO, COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION, COMMAND_CLASS_SWITCH_BINARY Command Class supported: (Not supports S2) COMMAND_CLASS_ZWAVEPLUS_INFO, COMMAND_CLASS_SECURITY_2, COMMAND_CLASS_SUPERVISION Parameters Setting: size Function description Default... -
Page 6: Restoring Factory Settings
www.mcohome.com User Manual Restoring Factory Settings Press 20 times of any button (the interval time of touching is less than 500 milliseconds and the relay will keep same state after continually touching more than five times) or exclude the device from Z-Wave network, the factory setting will be restored.
