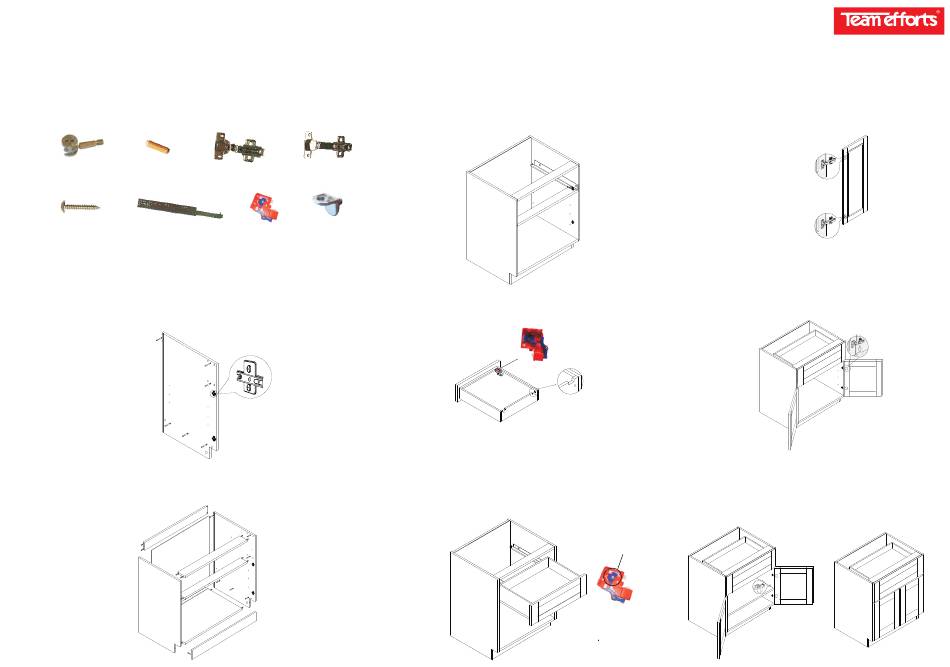

Team efforts Revolution Series Installation Instructions Manual

I.Hardware List：
3/4" overlay soft-close hinges
Cam locks Wood dowels
Undermount soft-close slides
Nickel Round Head screws 4 * 1 "
II.Installation Steps:
Step 1: Install the soft-close hinge plate on upper holes of the side panels;install the 6-way
hinge plate on lower holes of the side panel.
Step 2: Assemble the cabinet using cam locks and wood dowels.Start by screwing in all the male
ends of the cam locks and inserting the wooden dowels.When the sides,bottom base and
braces are loosely connected,tighten everything with the female part of the cam locks.
Finish by sliding the back panels into its groove.
Revolution Series Products Installation Instructions
Step 3: Attach the Undermount soft-close slides onto the side panels using
the pre-drilled holes and the nickel round screws.
3/4" overlay 6-way hinges
Drawer front connectors
Shelf supports
Step 4: ssemble the drawers and install the A
of the bottom panels of the drawers, secure with short screws.
Step 5: Install the drawers.First,extend the arms of the drawer slides and place dawer on top of the
extended arms.There is a notch cut into the bottom of each side of the drawer where the arms
rest.Reach under and pull the arms to meet the drawer front connector. The arms should slide
forward until a "click" is felt.This is a secure connection.After that,a small lever on the
drawer front connector can be used to make small adjustments to correct clearance.
------ Base Cabinet (B)
Step 6: Install the 3/4"overlay soft-close hinges in the upper holes of the doors;Install
the 3/4"overlay 6-way hinges in the lower holes of the doors.
drawer front connector on the underside Step 7: Connect the doors to the box, hinges on the door panels snap into the hinges on the
Front connector
Soft-close slide rabbet
Step : 8 Install the shelf supports at the desired height then place shelves on top of the
Adjust the height of drawer
3/4" overlay soft-close hinges
3/4" overlay 6-way hinges
side panels.
.
supports Adjust the hinges to ensure that the clearance for all doors is the same
,
Finally check the firmness and stability of the cabinet tightening the cam locks
.
as necessary
