Summary of Contents for Detector PC2003

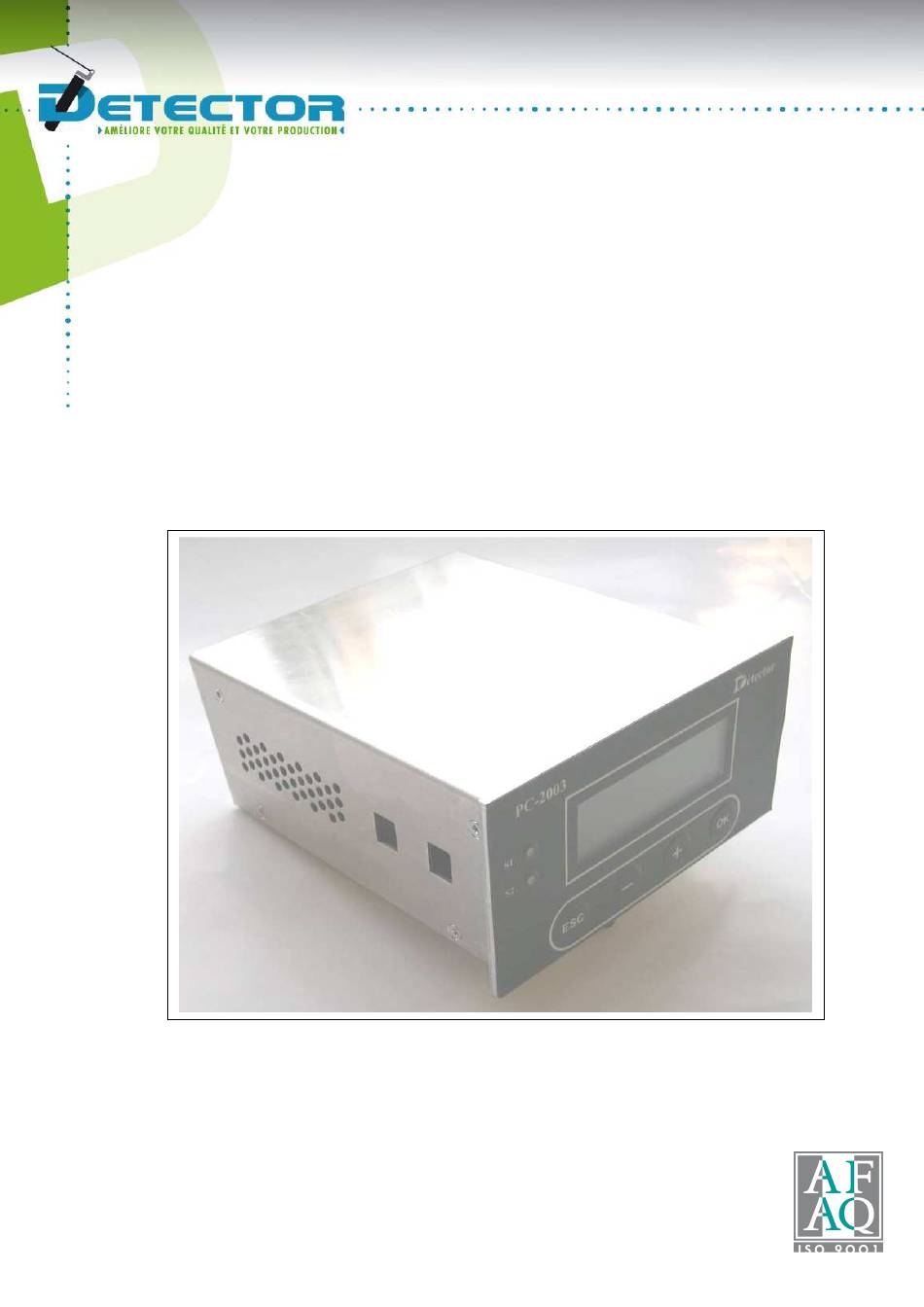

- Page 1 English PC2003 amplifier Programming Manual www.detector-france.com PROPC2003EN – index A...
-
Page 2: Table Of Contents
Programming Manual PC 2003 Amplifier English Pages 1 INTRODUCTION 2 PARAMETER SETTING 2.1 Calibrating the reference 2.2 Adjusting the tolerances 3 CONTROL FUNCTIONS 3.1 Masking a measurement 3.2 Transferring a measurement 3.3 Setting the machine shutdown parameter 3.4 Table of the programming modes Page 1/14 PROPC2003EN –... -
Page 3: Introduction
Don’t hesitate to contact us for additional information or problems, a technician will answer your questions. The PC2003 is designed to measure part length or diameters (depending on the sensor type chosen) using an LVDT linear probe. Three measurement modes are available: Peak , Peak Controlled or Realtime. - Page 4 The PC2003 is suitable for most multi-spindle/single spindle machine tools which are cam driven or numerically controlled. Thanks to the user friendliness of the menus, any user can rapidly plug in and use the amplifier and easily navigate within it.
-
Page 5: Parameter Setting
Programming Manual PC 2003 Amplifier English 2. PARAMETER SETTINGS 2.1 Calibrating the reference Calibrating the reference allows the calibration of the sensor to a reference part on your machine. Calibration must be done only after the amplifier has been correctly wired and your machine correctly adjusted so that the dimension to be measured is a mean and stable dimension (without machine drift). - Page 6 Programming Manual PC 2003 Amplifier English REFERENCE ADJUST REFERENCE ADJUST CHANNEL 1 IN AUTO: CHANNEL 1 IN MANUAL: 2 SAMPLE(S) SENSOR +0.386mm VALIDATE BY OK Define the VALIDATE BY OK number of samples. then This screen shows the instantaneous value of the sensor to adjust the sensor’s reading between 0.3 and 0.5mm.
- Page 7 Programming Manual PC 2003 Amplifier English TOLERANCES TOLERANCES REFERENCE ADJUST -> REFERENCE -> REFERENCE NOM DIMENSION STATISTICS STATISTICS +00.000mm VALIDATE BY OK then REFERENCE ADJUST NOM DIMENSION +19.500mm VALIDATE BY OK TOLERANCES -> REFERENCE STATISTICS CHAN 1 : +0.000mm CHAN 2 : +0.000mm Page 6/14 PROPC2003EN –...
-
Page 8: Adjusting The Tolerances
Programming Manual PC 2003 Amplifier English 2.2 Adjusting the tolerances The tolerances limits define the range of acceptable readings, beyond which the amplifier is going to react by triggering relays to their fault states. These tolerances are adjusted with respect to a reference, which must be set earlier. CHAN 1 : +0.000mm CHAN 2 appears only if you... -
Page 9: Control Functions
Programming Manual PC 2003 Amplifier English 3. CONTROL FUNCTIONS 3.1 Masking a measurement This function allows masking of a measurement during a material feed operation, isolating the fed part (short) without shutting down the machine. The masking of a measurement can be configured: Either inactive (no masking) ;... -
Page 10: Transferring A Measurement
Programming Manual PC 2003 Amplifier English -> MEASURE MASKING MEASURE MASKING ACTION DELAY -> CHANNEL 1 MULTI-PART ACTION CHANNEL 2 Here is an example to get a better understanding of this function: Everything depends on the station which the machine feeds and where the sensor is positioned. - Page 11 Programming Manual PC 2003 Amplifier English MEASURE MASKING -> ACTION DELAY MULTI-PART ACTION This page appears only if you have a PC2003B (dual channel) device. ACTION DELAY -> CHANNEL 1 CHANNEL 2 Define the number of measurements corresponding to the offset CHAN 1 DELAY SIGNAL after which the machine FOR 1 MEASUREMENTS...
-
Page 12: Setting The Machine Shutdown Parameter
Programming Manual PC 2003 Amplifier English 3.3 Setting the machine shutdown parameter Setting the ″machine shutdown″ parameter is very useful if you don’t want to penalize productivity by shutting down the machine even though the measured bad parts are isolated from production by a recovery system controlled by the MIN and MAX contacts. -
Page 13: Table Of The Programming Modes
Programming Manual PC 2003 Amplifier English 3.4 Table of the programming modes This table is a summary of all the menus and the adjustments present in the amplifier. >MEASURE >TOLERANCES TOLERANCES : Adjusting the tolerance in a range of ± 2mm OPTIONS REFERENCE >... - Page 14 Programming Manual PC 2003 Amplifier English Adjustment of the tare of MEASURE >SENSOR PARAMETERS >TARE TARE : the sensor in the probe. OPTIONS ADDITIONNAL DATA MEAS. ARM CORRECT. > CHANNEL 1 >PARAMETERS (See Integration an PROGRAM SETTINGS TOLERANCES MODE > CHANNEL 2 DISPLAYS ADMIN MEASUREMENT MODE...
- Page 15 Maximum 999.999mm In Inch: 2 digits are displayed before the decimal point + 4 digits after the decimal point. Maximum 21.4747in : Screens appear only if you have a PC2003 DUAL CHANNEL device. Page 14/14 PROPC2003EN – Index A...
- Page 16 Manufacturer Detector France 36 route des lacs – PAE des Jourdies 74800 Saint Pierre en Faucigny Tél : +33 (0)450 037 998 Fax : +33 (0)450 036 792 Email : commercial@detector-france.com www.detector-france.com PROPC2003EN – index A...
