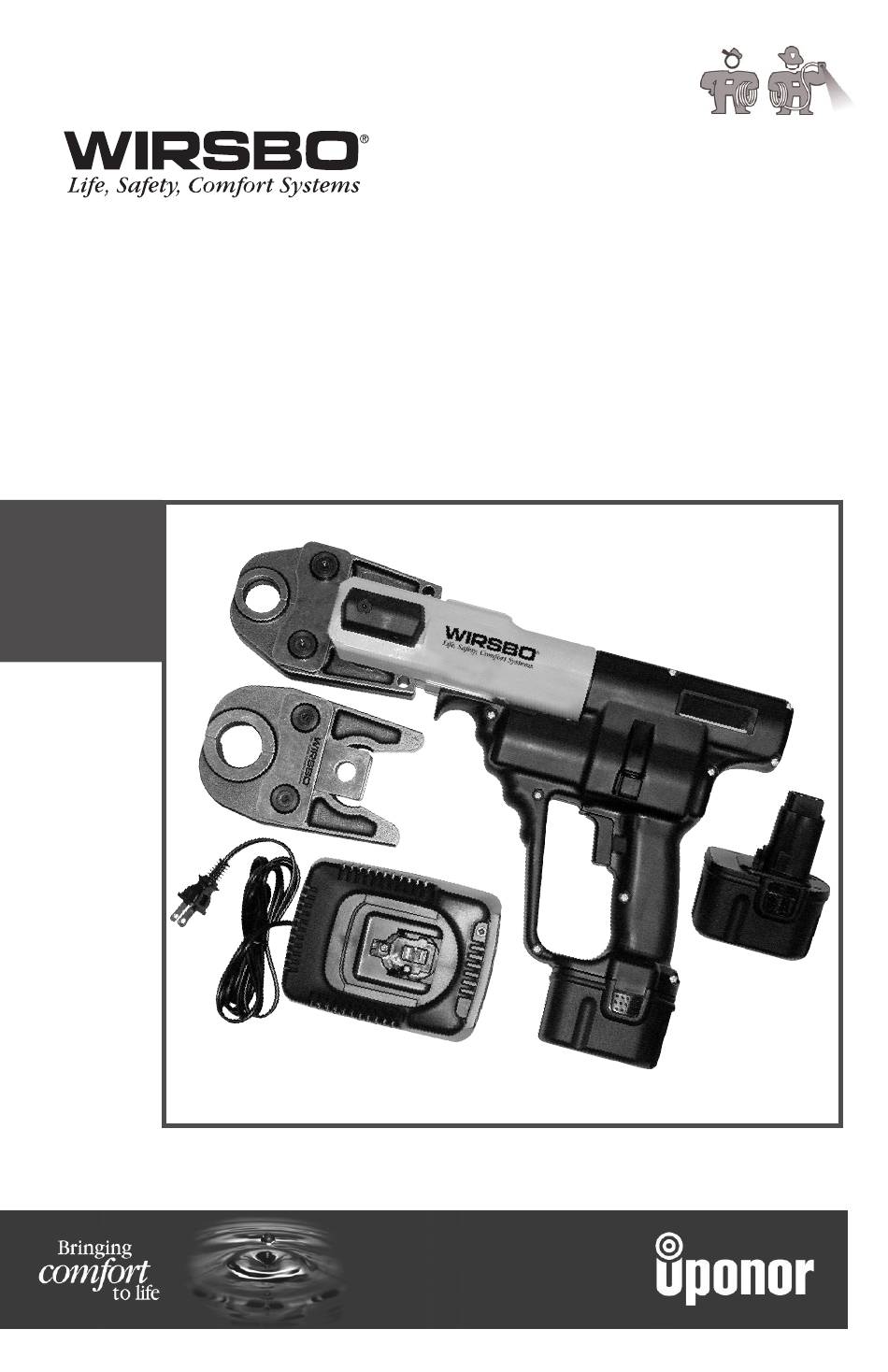

- Page 1 MultiPress Battery Tool Installation Guide...
-
Page 3: Table Of Contents
Table of Contents Section 1 Overview ........2 Tool Components . -
Page 4: Overview
------------------------------------------------------------------ Section 1 ---------------------------------------------------------------- Overview Wirsbo's MultiPress Battery Tool (D6251500), an electro-hydraulic tool, makes fast, easy connections to ¹⁄₂", ⁵⁄₈", ³⁄₄" and 1" MultiCor™ tubing. The tool eliminates the need for air compressors, air hoses and generators — making MultiCor connections easier than ever. -
Page 5: Technical Data
Technical Data Rapid Charger MultiPress Battery Tool Power supply: 120V, 60 Hz, 2 A Dimensions: 13.3" x 11.4" x 3.3" Output voltage: 9.6 to 18 V Weight: 9.9 lbs. with Recharging time: 1 hour battery Weight: 0.8 lbs. Max. MultiCor tubing size: 1"... -
Page 6: Battery Operation
------------------------------------------------------------------ Section 2 ---------------------------------------------------------------- Battery Operation Before Use The battery supplied with the MultiPress Battery Tool and the spare battery are not charged. Charge the battery before initial operation. Only use the battery rapid charger supplied with the tool for charging. Once the battery is inserted into the rapid charger, the red indicator light flashes. - Page 7 • Use Wirsbo-recommended charging procedures. Incorrect use can lead to short circuits, overheating or battery fluid leakage. • To prolong the battery's life, avoid overcharging. Do not charge for more than two days. • Replace the battery if you notice a substantially reduced operating time after proper charging.
-
Page 8: Multipress Tool Operation
------------------------------------------------------------------ Section 3 ---------------------------------------------------------------- MultiPress Battery Tool Operation Use only the press heads supplied by Uponor Wirsbo for the MultiPress Battery Tool. The press heads are identified by their respective tubing size stamped into the head. Comply with the instructions for fitting installation in Section 4 of this manual. -
Page 9: Operational Pre-Check
Operational Pre-check Before use, always perform a test connection with the press head installed and a test fitting in place. The jaws on the press head must close completely. Ensure the jaws at the tip of the press head are completely closed after making the test fitting. Before use, always check the press head, in particular the inside surface of both jaws, for damage or wear. -
Page 10: Safety Guidelines
Safety Guidelines To reduce the risk of electric shock, personal injury and fire, always follow basic safety precautions. Read and comply with all these guidelines before operating the MultiPress Battery Tool. Failure to follow the instructions and installation guidelines as defined in this manual can result in the failure of the MultiPress Battery Tool. -
Page 11: Repairs
• Claims are only acceptable if the complete MultiPress Battery Tool is returned to Wirsbo or to the distributor. • If a warranty claim is necessary, return the product to Wirsbo with transportation charges prepaid. • Include proof-of-purchase date and an explanation of the... -
Page 12: Multipress Fittings Installation Instructions
The fittings are compatible only with Wirsbo MultiCor tubing. 4. Do not use other PEX tubing fittings on Wirsbo MultiCor tubing. PEX fittings are not compatible with Wirsbo MultiCor tubing. 5. Only use MultiCor and MultiPress fittings in radiant heating applications. -
Page 13: Step 2: Install The Multipress Fitting
Step 2: Install the MultiPress Fitting 1. Insert the tubing end into the MultiPress fitting until the tubing is visible through the witness holes on the stainless steel sleeve. Take care not to damage the o-rings. See Figure 4-3. Figure 4-3 2. -
Page 14: Step 3: Installing Multipress Sweat Fitting
Step 3: Installing MultiPress Sweat Fitting (when applicable) 1. If not already disassembled, remove the two o-rings from the fitting prior to sweating. 2. After the sweating, allow the fitting to cool down to room temperature. 3. Reinstall the o-rings in their proper position on the fitting. Position the large o-ring in the groove next to the shoulder of the fitting. - Page 15 MultiPress Battery Tool Installation Guide Published by Uponor Wirsbo 5925 148th Street West Apple Valley, MN 55124 (952) 891-2000 © 2003 Uponor Wirsbo All rights reserved First Edition First Printing August 2003 Printed in the United States of America...
- Page 16 655 Park Street Apple Valley, MN 55124 Regina, Saskatchewan Canada T: (800) 321-4739 S4N 5N1 F: (952) 431-4025 E: info@wirsbo.com T: (888) 994-7726 www.wirsbo.com F: (800) 638-9517 E: info@wirsbo.ca www.wirsbo.ca MPBTHB_0803 Copyright © 2003 Uponor Wirsbo, Printed in the United States...
