USR

Courier

Lite Business Modem

User Guide

USR5686G-PRO

R24.0802.00

Rev 1.0 06/2018

Table of Contents

Need help?

Do you have a question about the USRobotics Courier Lite 5686G-PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for UNICOM USRobotics Courier Lite 5686G-PRO

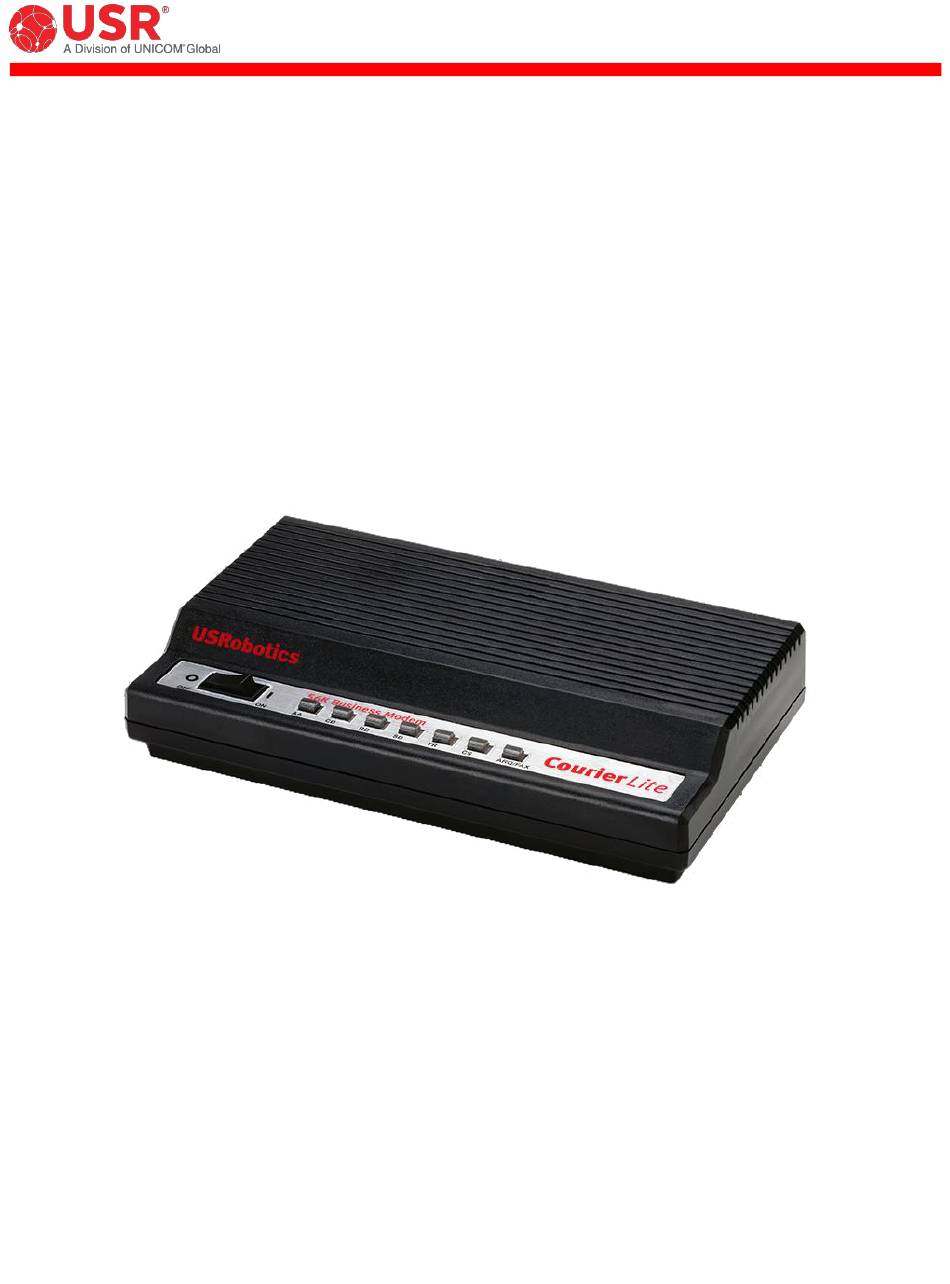

Page 1 ® ® Courier Lite Business Modem User Guide USR5686G-PRO R24.0802.00 Rev 1.0 06/2018...
Page 2: Table Of Contents
Technical Information ....................75 ASCII Chart ......................... 80 Fax Information for Programmers .................. 81 Viewing LEDs ....................... 84 WARRANTY ........................85 REGULATORY ........................89 COPYRIGHT ........................94 Page 2 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 3: Introduction
The modem can be remotely configured and monitored for the convenience of your local office. See “Accessing and Configuring Remotely” part of the Configuration section of this guide. Page 3 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 4: Installation
1. Power Switch LEDs Back 3. Line to wall jack 4. Line to telephone 5. DIP switches 6. Serial port 7. Power input Side 8. Volume dial Page 4 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 5 Step Two: Connect the Modem to the Computer 1. Connect one end of the serial modem cable to modem and the other end to your computer’s serial port. Page 5 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 6 1. Plug the power adapter into the power jack on the modem and the other end into an electrical outlet. 2. Turn on the modem by switching the power switch on the top of the modem to ON. The CS LED should light. Page 6 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 7: Modem Upgrade
Use the Flash Loader application to send the new software to your modem  If the Flash Loader doesn’t find your modem  If your modem doesn’t respond after flashing  Remote flash Page 7 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 8 To flash new firmware into the Courier Lite 56K Business Modem, you must run the USRobotics Flash Loader application on your computer. To get the newest version of the Flash Loader application, go to the customer support web site at http://www.usr.com/support. Page 8 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 9 After you choose the software file that you want to send, the Flash Loader will search your computer’s COM ports for the Courier Lite 56K Business Modem. Note: There must be no other active modems on any of your computer’s COM ports. Page 9 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 10 C. Check that the serial cable connecting the computer’s serial port to the Courier Lite 56K Business Modem is wired with all the RS232 control signals. (i.e. DTR, DSR, CTS, RTS)  Contact USR Technical Support. Page 10 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 11: Configuration
Set DTR to Normal OFF (Default) Ignore DTR Set verbal result code display OFF (Default) Set numeric result code display Disable result codes Enable result codes ON (Default) Page 11 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 12: Accessing And Configuring The Modem Remotely
The Courier Lite 56K Business Modem that will be accessed and controlled by other Host devices. Guest The device that will access and control the host Courier Lite 56K Business Modem. Page 12 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 13 The user can view and change the Courier Lite 56K Business Modem’s configuration. Note: Remote-access passwords can be up to eight alphanumeric characters long, and are not case - sensitive. Page 13 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 14 Note: The administrator of the host device can change the remote -access character using S- Register 42, and the pause duration using S-Register 43. Refer to the S-Registers section for more information. Page 14 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 15 (for example, ATD or ATA). You can also use remote Configure configuration commands. See the next section for examples. CAUTION: Be careful not to send ATZ or ATZ! or you will lose the connection! Page 15 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 16 To change the data format to Command No Parity (8 data bits) AT%F0 Mark parity (7 data bits) AT%F1 Odd Parity (7 data bits) AT%F2 Even parity (7 data bits) AT%F3 Page 16 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 17 Note: Before you disconnect, issue the ATI5 command to the remote modem and check its S41 setting. Make sure S41 is set for a value of 1 or greater. If S41 is set to 0, when you disconnect Page 17 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 18: Dial Security
The account profiles are stored in the host Courier Lite 56K Business Modem’s nonvolatile random access memory (NVRAM). There are two forms of Dial Security; each will be explained later in this section :  Autopass  Password Prompting Page 18 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 19 Note: The AT%An command is automatically written to NVRAM. It does not require you to send &W. WARNING: Do not insert spaces between commas or between fields and commas. Spaces will invalidate the command. Page 19 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 20 Courier Lite 56K Business Modem dial back the device at that number Disable dialback AT%A0=password,y,n,, AT%A0=wombat,y,n,, Note: To enable Dialback, you must enable Dial Security with Prompting. See step 6. Page 20 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 21 Note: You must use the &W command to save the settings in NVRAM. If you don’t, the next time you reset or power off the Courier Lite 56K Business Modem, Dial Security will be disabled. Page 21 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 22 When the host has Password Prompting enabled, it asks guest users for a password. The host modem checks the received password against each of its act ive Security accounts. Page 22 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 23 If the guest did not enable Dial Security, the host will not accept the call unless prompting is enabled on the host Courier Lite 56K Business Modem. Page 23 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 25 [ACCESS DENIED] message is displayed. Remote Configuration Dial Security accounts may be configured remotely. (Refer to Configuring Dial Security Remotely the end of this section .) Page 25 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 26 Enable Dial Security ATS53.0=1 CAUTION: If you do not follow an S-Register setting with &W, the setting will be retained only until the next reset or power off. Page 26 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 28: Testing The Connection
If you send a test command while the modem is in test mode, you will receive an ERROR message. All loopback testing conforms to ITU-T Recommendation V.54. Page 28 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 29 1. Send AT&M0&N3S14.0=0 to prepare the modem for testing. This command disables error control, fixes the connection rate at 2400 bps, and makes the modem return to command mode when you type +++. Page 29 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 30 This command disables error control, fixes the connection rate at 2400 bps, and makes the Courier Lite 56K Business Modem return to command mode when you type +++. Page 30 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 31 3. Send the Courier Lite 56K Business Modem the escape code, +++, to bring it back to Command mode. 4. Send AT&T3 to the modem to enter Digital Loopback mode. Page 31 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 32: Reference
The modem displays the value of an S-Register, as a decimal value between 0 and 255. The modem, however, understands the decimal value as a collection of binary digits (bits). Page 32 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 33 Starting with a string of eight bits, assign each "1" bit a value based on its position. Add the values to come up with the final decimal value. Here’s an example of how bits are converted to decimal values: 01001111 + 64 = 79 Page 33 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 34 Counts and stores the number of rings from an incoming call. Stores the ASCII decimal code for the escape code character. Default character is “+”. A value of 128-255 disables the escape code. Page 34 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 35 Sets the duration and spacing, in milliseconds, of dialed tones. Sets the duration, in fiftieths of a second, of the guard time for the escape code (+++) sequence. Page 35 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 36 Bit-mapped register ( See the beginning of this section for information about setting bit-mapped registers). Value Result Disconnect on escape code. Reserved Reserved Reserved Reserved Reserved Reserved Reserved Page 36 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 37 For testing, refer to the Testing the Connection part of the Configuration section. Value Result Reserved Dial Test. Test pattern. Reserved Reserved Reserved Reserved Reserved Page 37 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 38 Sets the duration, in 20-millisecond units, between pulsed DSR signals when the Courier Lite 56K Business Modem is set to &S2 or &S3. The default is 3 seconds. Sets DTR recognition time in 10-millisecond units. Reserved Page 38 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 39 Disable MNP. Disable V.42 Detection and LAPM. Disable Detection phase, if you know that the remote Courier Lite 56K Business Modem does LAPM, but not the Detection phase. Page 39 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 40 Reserved Reserved Enable V.23. Required for some British connections. Reserved Reserved Reserved Disable V.32 terbo. Display transmit level in dBm with an implied minus sign. Read-only. Page 40 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 41 Bit-mapped register. See the beginning of this section for information about setting bit-mapped registers. Value Result Reserved Reserved Reserved Reserved Reserved Reserved Disable Selective Reject Reserved Page 41 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 42 Disable 2743 symbol rate. Disable 2800 symbol rate. Disable 3000 symbol rate. Disable 3200 symbol rate. Disable 3429 symbol rate. Disable Call Indicate (CI). Disable V.8. Reserved Page 42 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 43 Bit-mapped register. (See the beginning of this section for information about setting bit-mapped registers.) Value Result Reserved Reserved Reserved Reserved Reserved Enables/Disables V.90 Disables V.92 functions Reserved Reserved Page 43 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 44 Enable recognition of Ring B Enable recognition of Ring C Enable recognition of Ring D Enable recognition of Ring E Reserved Reserved Reserved RCID request delay (1/200 sec) Page 44 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 46: Alphabetic Command Summary
Attention prefix: informs a modem that a command is coming. AT must precede all commands except A/, A>, and +++. Force a modem to answer when it is not receiving an incoming call. Page 46 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 47 ITU-T V.25 answer sequence; required to answer all V.34 -type and overseas calls. Bell answer tone; use if the modem is not required to answer V.34- type calls. Page 47 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 48 Command mode echo. Enables or disables the display of your typed commands. Command mode echo OFF. Your typing will not appear on the screen. Command mode echo ON. Your typing will appear on the screen. Page 48 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 49 Online echo ON. (Sometimes called half duplex.) Online echo OFF. (Sometimes called full duplex.) Go on or off hook. Go on hook (hang up). Go off hook (pick up). Page 49 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 50 Return online. Use with the escape code (+++) to toggle between command and online modes. Return online (normal). Return online and retrain. Use O1 if there were errors in a non -ARQ data transfer. Page 50 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 51 At reset use stored profile 1 At reset use factory profile 0 (&F0) At reset use factory profile 1 (&F1) At reset use factory profile 2 (&F2) Page 51 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 52 When answering calls, use the fixed rate for ARQ calls and variable &B2 rates for non-ARQ calls. The serial port rate should be equal to or higher than the &Nn rate. Page 52 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 53 This sets a 550 Hz guard tone, and is used in some European countries. This sets an 1800 Hz guard tone, and is used in the U.K. and some &G2 Commonwealth countries. &G2 requires the B0 setting. Page 53 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 54 Always enable data compression. Selective data compression. The modem negotiates only for V.42 bis &K3 compression, and disables MNP Level 5 (MNP5) compression. Use this setting to transfer compressed files. Page 54 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 55 &M4 operates in Normal mode as though it were set to &M0. ARQ asynchronous mode. The modem hangs up if an ARQ connection &M5 cannot be made. Page 55 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 56 19200 bps n=11 21600 bps n=12 24000 bps n=13 26400 bps n=14 28800 bps n=15 31200 bps n=16 33600 bps n=17 28000 bps n=18 29333 bps Page 56 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 57 45333 bps n=31 46666 bps n=32 48000 bps n=33 49333 bps n=34 50666 bps n=35 52000 bps n=36 53333 bps n=37 54666 bps n=38 56000 bps Page 57 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 58 Same as &S2, but without the CTS signal. &S4 Send the computer DSR at the same time as CD. &S5 Send DSR normally, and follow CTS with CD. Page 58 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 59 Also, do not include modem settings in the &Zn string. If the call requires a special setting, insert it in the command string before the DSn command. Page 59 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 60 We recommend against forcing configuration changes unless it is absolutely necessary. An unreliable connection, or loss of connection, may result. Set a DTMF password. Refer to the Dial Security section. Page 60 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 61 Assign the password in account n in your modem’s security account as your %V=PWn Autopass password Octothorpe (#) Command Set Command Function Display the help panels for the octothorpe (#) command set. Page 61 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 62 (+ER) and before the final result code (e.g., CONNECT). Disable the compression report. Enable the compression report. +DR? Display current +DR setting. +DR=? Display list of valid +DR settings. Page 62 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 63 Disables the error control report. Enables the error control report. +ER? Display current +ER setting. +ER=? Display list of valid +ER settings. Page 63 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 64 (e.g., CONNECT). Turns off the modulation report. Turns on the modulation report. +MR? Display current +MR setting. +MR=? Display list of valid +MR settings. Page 64 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 65 Minimum reception rate, always set to 0. Use automatic reception rate selection. i=300- Maximum reception rate. Default=31200 56000 +MS? Display current +MS setting. +MS=? Display list of valid +MS settings. Page 65 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 66: Flow Control Template
Disable phase 1 and phase 2 of QC +pSS=n Controls short sequences. +pSS=0 Modem decides on short sequences Flow Control Template  Hardware Flow Control  Software Flow Control  No Flow Control Page 66 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 67 Enable V.42bis, Disable V.44 Set Compression Report Mode +DR=0 Disable the report Set V.42 Compression Method Accept V.42bis, don’t disconnect +DS=3,0,2048,32 if fail, 2048 dictionary, 32 string Page 67 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 68 Guard tone &G0 U.S./Canada Transmit data hardware flow &H2 Software flow control control Received data software flow &I2 No pass-thru control Analog data compression &K1 Enabled Page 68 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 69 Items in bold denote the changes to (or differences from) the &F1 template. NVRAM Options Setting Description Handshake option ITU-T answer sequence Command mode echo Enabled Online local echo Disabled Speaker control ON during dial through connect Page 69 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 70 Disable the report Set Modulation Selection V.92, auto, auto, 31.2k max tx,56k +MS=V92,1,0,31200,0,56000 max rx Set Compression Method +DCS=1,0 Enable V.42bis, Disable V.44 Word length* Parity* Even Page 70 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 71: Result Code Meanings And Sets
AT... &W string. Result Code Meanings and Sets Result Code Meanings and Sets  Result Code Meanings  Result Codes Sets for Xn Values  New Connect Messages Page 71 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 72 Requires X3 or higher. Courier Lite 56K Business Modem continues dialing when it detects 5 Wait for an answer (@) seconds of silence on the line. Requires X3 or higher. Page 72 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 73 25/CONNECT 14400 43/CONNECT 16800 85/CONNECT 19200 91/CONNECT 21600 99/CONNECT 24000 103/CONNECT 26400 107/CONNECT 28800 151/CONNECT 31200 155/CONNECT 33600 170/RING A 171/RING B 172/RING C 173/RING D 174/RING E Page 73 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 74 28000/V92 50666/V92 38666/ARQ 28000/ARQ/V92 50666/ARQ/V92 38666/V90 29333/V92 52000/V92 38666/ARQ/V90 29333/ARQ/V92 52000/ARQ/V92 40000 30666/V92 53333/V92 40000/ARQ 30666/ARQ/V92 53333/ARQ/V92 40000/V90 32000/V92 54666/V92 40000/ARQ/V90 32000/ARQ/V92 54666/ARQ/V92 33333/V90 33333/V92 33333/ARQ/V90 33333/ARQ/V92 Page 74 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 75: Technical Information
1200 bps asymmetrical with 75 bps back channel with Frequency Shift Keying ITU-T V.23 (FSK), used by some U.K. and European phone systems. Bell 103 300 bps (ITU-T V.21 optional) asynchronous, Frequency Shift Keying (FSK) Page 75 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 76 230400, 115200, 57600, 38400, 19200, 9600, 4800, 2400, 1200, and 300 bps port rates Serial port DB-25 connector Communications Full- or half- duplex on 2-wire phone lines; symmetrical speeds in V.32 bis. channel Page 76 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 77 - 9 dBm maximum Transmitter .01% Frequency Tolerance FCC approved (Part 15 Class B/Part 68) IC approved Certification UL listed CUL listed CE approved (Class B) Ringer equivalence 0.2B Page 77 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 78 Your modem’s serial port is factory set to signal according to the EIA -232 standard. Wiring a DB-25 to DB-9 Cable DB-9 connectors for PCs should be wired at the computer end of the cable as shown below. Page 78 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 79 If your computer and software support Request to Send and you wish to use Received Data hardware flow control (&R2), Pin 4 (DB-25) or Pin 7 (DB-9) is required. Page 79 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 81: Fax Information For Programmers
Wait for silence, 10 ms. +FTM=n (3,24,48,72,73,74,96,121,122,145,146) Transmit data with carrier. +FRM=n (3,24,48,72,73,74,96,121,122,145,146) Receive data with carrier. +FTH=n (3,24,48,72,73,74,96,121,122,145,146) Transmit HDLC data with carrier. +FRH=n (3,24,48,72,73,74,96,121,122,145,146) Receive HDLC data with carrier. Page 81 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 82 If you want to know more about the supported Class 1 fax commands, refer to the standard for the Service Class 1 fax protocol: TIA/EIA-578-1990 (EIA-578) Asynchronous Facsimile DCE Control Standard - Service Class 1 November 1990 Revision: B Page 82 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 83 Asynchronous Facsimile DCE Control Standard - Service Class 2 April 1998 Revision: A You can obtain copies of these standards by contacting Global Engineering Documents at (800) 854 - 7179. Page 83 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
Page 84: Viewing Leds
Is using V.42 bis error correction Flashing Is retransmitting data to the remote modem ARQ/FAX Blinking Is in fax mode Is not using error control, not retransmitting data, and not faxing Page 84 of 94 Copyright © 2018 USR, a Division of UNICOM Global...
