- Page 1 BOAT LIFT TO BOAT TRAILER MANUAL § 2015-05-08 Page 1 (of 11)
- Page 2 General: Boat lift is a means to lift a boat (motor boat or the like) when loading to or from a boat trailer on land. The lift may not be used for other purposes. To avoid accidents, it is imperative that you read and follow the safety instructions and all other instructions below.
-
Page 3: Technical Data

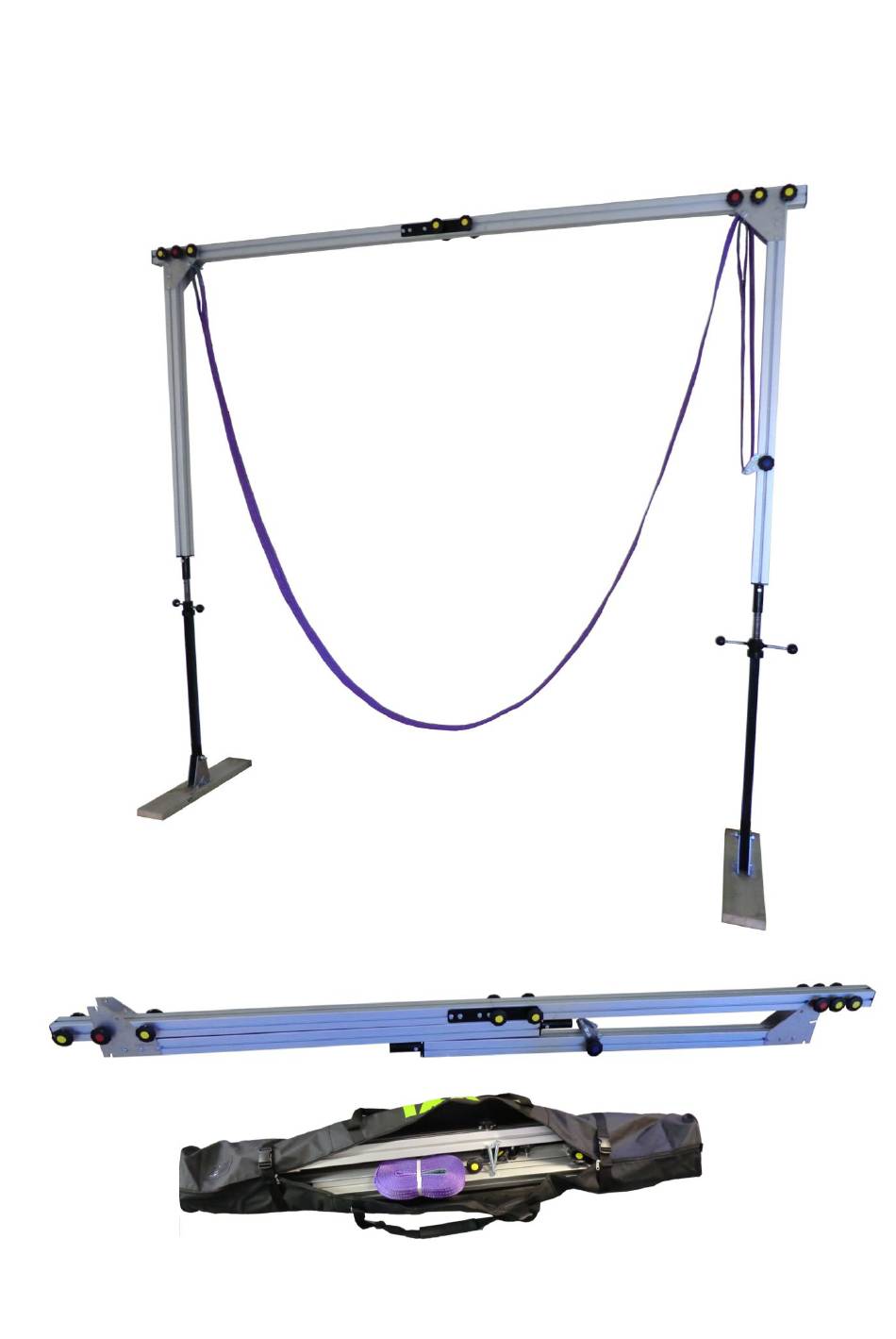

Hight (H) 2500 mm (+ lift 0 - 400 mm) 1500 kg Max load boat lift Lift belt: Approved for U-lift of 2 tons (7 x safety before failure) in accordance with EN 1492 Frame approx. 20 kg + others approx. 16 kg... - Page 4 All parts: Pic. 2 Assembling of the lift: First mount the frame up and down happily on a bench by first loosening the knobs slightly and then fold out the legs. Red wheel represents the pivot point and unloaded only slightly. NOTE ! Do not loosen the knobs too much to loosen from its slot nut.
- Page 5 Turn the frame or lay down this and mount the lifting belts one end of the leg where the rapid tensioner (with blue knobs) sits (Pic. 4). Fit also the other end of the belt to the other frame corner with its bolt but first make sure the belt is not twisted.
- Page 6 If the lift is to be placed behind the boat forward trestle must the strap end be loosened, put under the boat behind the trestle and up to the corner of the frame again. Check that the belt is not twisted and assemble the bolt.
- Page 7 Check with a spirit level (Pic. 9) that each foot-tube or the frame above does not lean in either the boat's longitudinal or transverse direction. If the lift is tilted in the boat's cross-direction can be compensated by raising one hand a few centimeters by turning its handle a number of rev.
- Page 8 Make sure that the boat is resting well at the trailer and left the rear trestle or only resting lightly on this. Attach the trailer winch wire (or strap) in the bow and tighten slightly towards the V- support on the trailer. If a little pressure on the trestle remains, you can lower the support wheel at the front of the trailer so that the trestle releases from the boat...
- Page 9 Loosen the boat on land from the boat trailer: When the car with the trailer is parked on land, pull/lock the cars (and if possible the trailers) handbrake and then place a trestle tightly under the stern (Pic. 14). Then adjust two supports toward the boat. If the trestle is higher than the boat bottom but the height difference is small, only a few centimeters, one can instead of using the lift raising stern lowering the trailer's front support wheels after first disconnecting the trailer from the car and locked the trailer's wheels firmly.
- Page 10 Lift of stern: When the stern of the boat to be lifted the boat so always rest on the trailer, whose handbrake ( if any) must be engaged and the wheels have to be locked / secured with blocks. In addition, the winch on the trailer to be connected to the boat and locked.
- Page 11 Pack and transport the lift: The frame folded (Pic.18). Can also be divided in half for easier fit inside a smaller car. Remove the yellow knobs on the center so that the frame consists of two parts that can be placed next to each other. The total length becomes about 1.65 m and can easily be placed even inside a small car.
