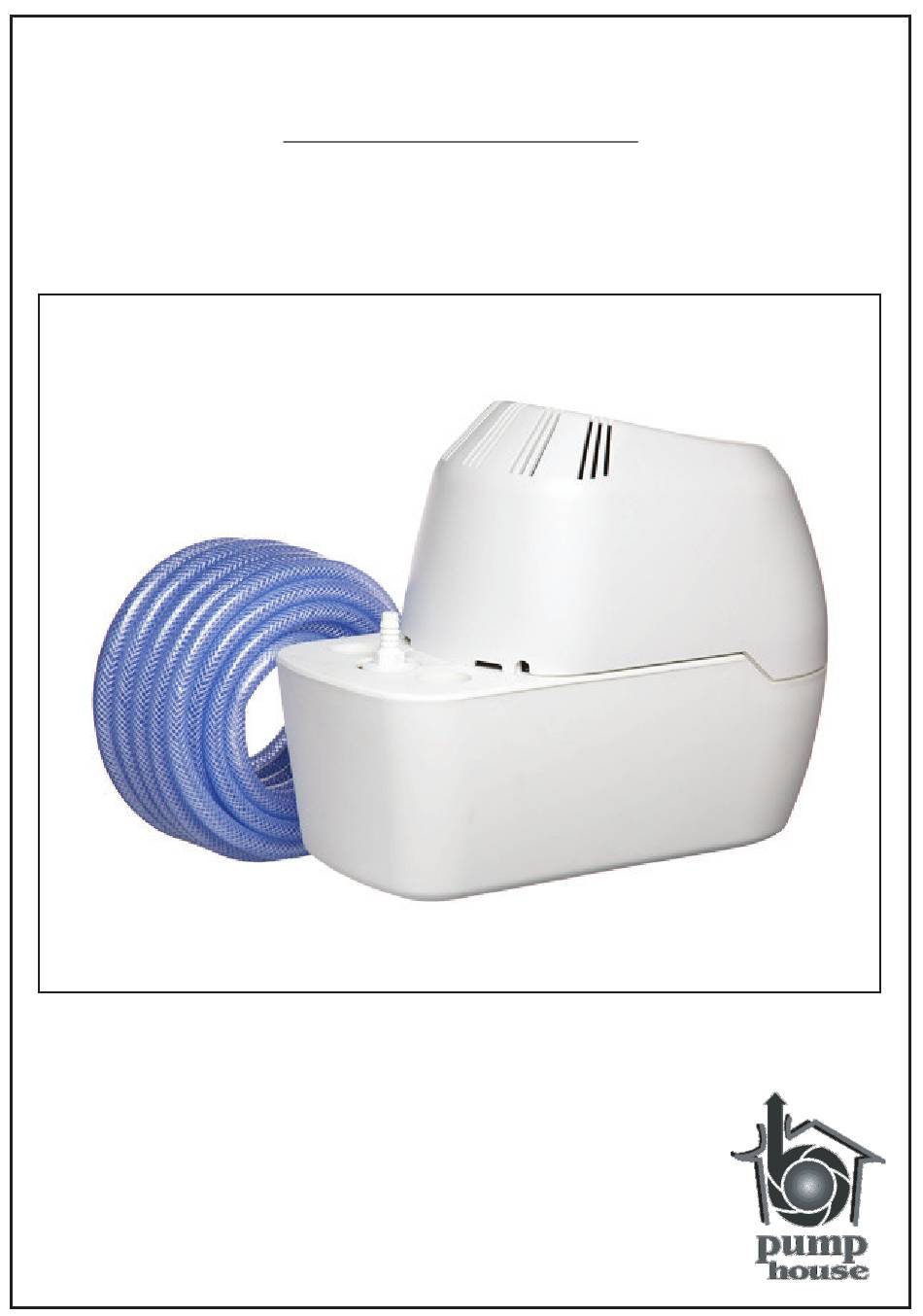

- Page 1 PH-3.8L-HW High Temperature Condensate Pump Installation Instructions Pump House Glaisdale Drive East Nottingham NG8 4LY Tel: 0115 900 5858 sales@pumph.co.uk www.pumph.co.uk...
- Page 2 PH-3.8L-HW Installation Instructions SPECIFICATION PH-3.8L-HW* Height 249 mm Model PH-3.8L-HW Max Flow 312 lph Inlet Height 115 mm Max Head Length 325 mm Tank Capacity 3.8 litres Width 160 mm Cable Length 1.8 m Volts 240 V / 0.75 A...
- Page 3 PH-3-8L-HW Installation Instructions INSTALLING THE PUMP 1. Carefully unpack the pump. 2. The pump is designed to be floor standing and it is essential that the pump must sit on a level surface. If installing on bare floor boards, to reduce noise transmission, it is advisable to place the pump onto a noise absorbing material (such as underlay or carpet).
- Page 4 This shut off will be reduced if bends and horizontal runs are included in the outlet pipe work. If in doubt please contact Pump House for advice. 3. At highest point angle tubing horizontally and create a downward slop to drainage point. So not bend sharply or twist the tubing in a way that might result in collapse or restriction of the tubing.
- Page 5 PH-3.8L-HW Installation Instructions COMMISSIONING & TESTING 1. Before commissioning, check for debris in the tank. Remove any material which might block the drain line or drain into the pump tank. 2. Turn on power and slowly fill the tank with clean water, as the float rises to the on level position the motor should turn on.
