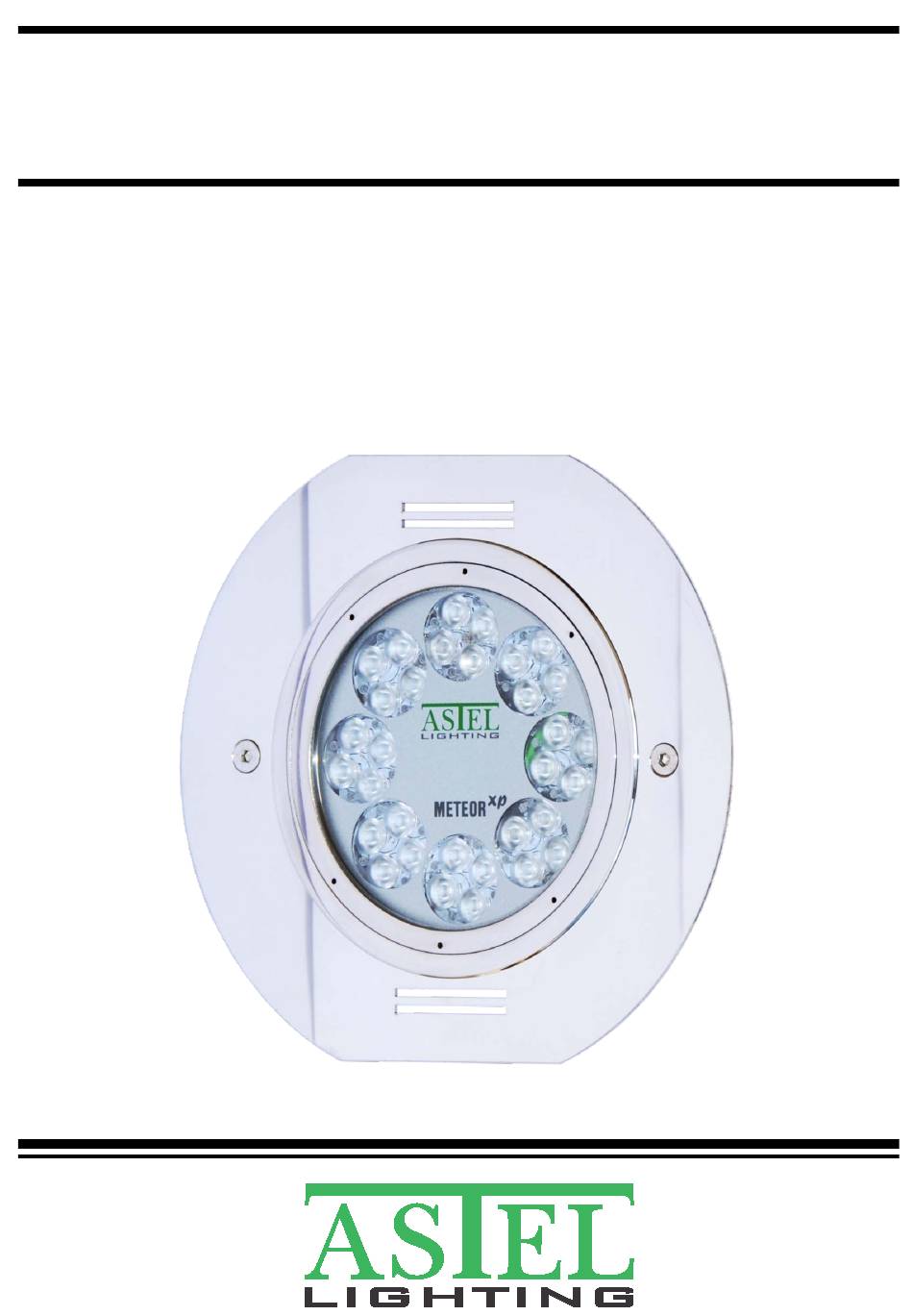

- Page 1 METEOR XP LFR3210 LFR3215 UNDERWATER POOL LIGHT Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface ................................3 Features ................................3 Precautions ................................3 Components and Connectors ..........................4 Installation ................................5 Controls ................................7 Appearance ................................9 Technical Specifications .............................9 Warranty ................................10 Declaration of Conformity ..........................11 _________________________________________________________________________________... -
Page 3: Preface
PREFACE PRECAUTIONS The METEOR XP series of modern compact • The underwater pool light has to be flush-mount designed underwater pool light installed and used in accordance with the with built-in driver is designed to use the latest instructions of this manual only. -
Page 4: Components And Connectors
COMPONENTS AND CONNECTORS (1) Optical window Tempered glass optical window. (2) Underwater pool light casing Stainless steel casing incl. fixing plate with mounting holes and water cooling slots. (3) Connector assembly The 8-pole multi-core cable to connect the DC power supply and optional remote control or switch. (4) Fixing screw 2 fixing screws to fix the underwater pool light into the suitable niche. -
Page 5: Installation
• Operating Instructions with Declaration of Conformity and Warranty conditions The METEOR XP has to be fixed into the suitable niche on the pool wall under waterline. Leave at least 2m of connection cable wrapped inside the niche for future maintenance and service. - Page 6 The underwater light has to be connected as described in the table below: METEOR XP FUNCTION wire color Red+Yellow+White + DC Power Supply Black+Blue+Green GND Power Supply Orange + Control Brown GND Control Remote control connection Single-color cool white (W), warm white (WW), blue (B), green (G) or red (R) models To remotely turn-on and turn-off the underwater pool light the simple switch (not included) can be used and connected to the CONTROL wires by a 2-pole signal cable (not included).
-
Page 7: Controls
The multi-color underwater pool light can be controlled by using the momentary-switch. When the light is turned-off the color or mode of lighting can be changed sequentially by pressing the momentary switch for 2 seconds: METEOR XP Sequence of lighting Custom Color... - Page 8 If the multi-color light is used only with one of the fixed color of lighting the synchronization is not necessary. DMX512 control The built-in ASTEL protocol enables the network connection to control the lights with the standard DMX512 protocol by using optional LXU01 interface.
-
Page 9: Appearance
APPEARANCE TECHNICAL SPECIFICATIONS Power supply 12-24 Vdc, max. 9.7 A/12 Vdc or 4.6 A/24 Vdc Beam angle 35° (standard) Optical window Tempered glass 8 mm Luminous flux max. 10.000 lm (cool white) (LFR3210) max. 15.000 lm (cool white) (LFR3215) White color temperature 6.000 K Operating temperature -10°C - +50°C... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 11: Declaration Of Conformity
Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. Underwater Pool Light METEOR XP conform to the following Product Specifications: EMC: EN 55015:2006 + A1:2007 EN 61547:1995 + A1:2000 + A2:2009 EN 61547:2009... - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-lighting.com E-mail: www.astel-lighting.com Web:...
