Purpose:
The ECO Pro replaces the conventional function switch and provides advanced user-defined automatic
scheduling options, basic troubleshooting instructions, and door performance and history. It is intended to
provide an integrated means for two way communication between the door system and the user.
1.
Prerequisites
1.1
Door system installation instructions
1.2
Stanley document #204066 MC521 Pro
Installation Instructions
1.3
Wiring for MC521 Pro is complete
1.4
FIS is performed or controller is showing
"A1"
2.
Install the ECO Pro
2.1
Connect Wiring Harness to Controller
2.1.1 Open the header and Refer to
2.1.2 Connect wiring harness to TB7
2.2
Route Wiring Harness
2.2.1 Route harness across header
Note:
This may be in the general or same
location as the typical rotary switch
2.3
Attach Mounting Plate
2.3.1 Determine customer-
2.3.2 If necessary, use
2.3.3 Attach using # 8-18 x
© 2012, STANLEY BLACK & DECKER. ALL RIGHTS RESERVED.
Retrofit and New Installation Instructions
Attachment 1 "ECO Pro Wiring
Diagram."
on MC521 Pro Controller.
using best practices and through
the jamb to cable access hole.
preferred orientation of
mounting plate. Refer
to Figures 2a & 2b for
orientation options.
Mounting Plate as a
template. Refer to
Attachment 2,
Machining Diagram for
additional information.
1/2" screws, provided.
ECO Pro™
204082
Rev. B 10/11/2012

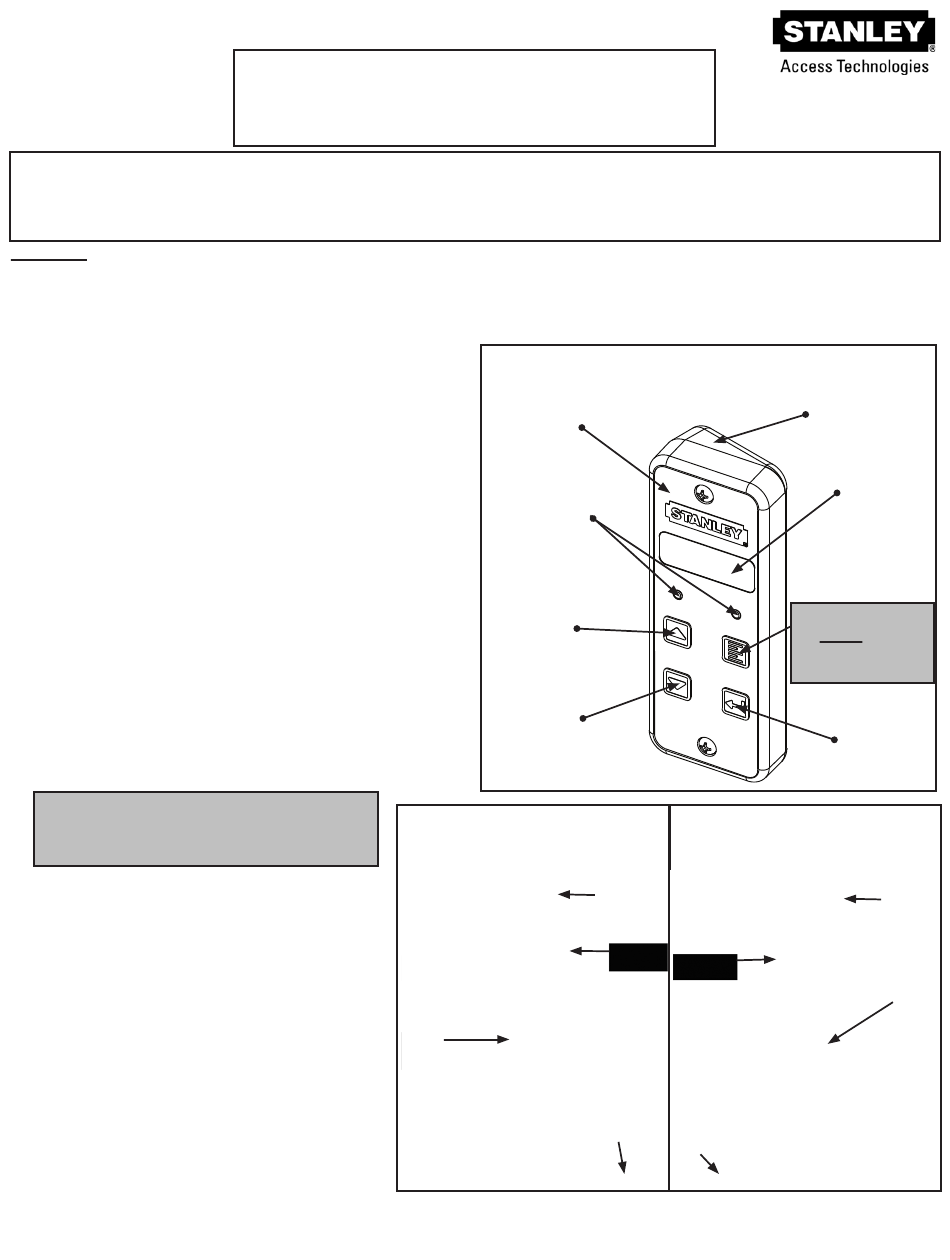

FACE PLATE
INDICATOR
LIGHTS
ARROW
UP
ARROW
DOWN
Figure 2a. Mounting Toward
the Door System
DOOR
SYSTEM
CABLE
ACCESS
HOLE
Figure 1. ECO Pro
Figure 2b. Mounting Away
from the Door System
JAMB
DOOR
SYSTEM
MOUNTING
MOUNTING
PLATE
PLATE
WALL
#8-18 x 1/2"
#8-18 x 1/2"
SCREW
SCREW
MOUNTING
PLATE
LCD
HOME
SCREEN*
MENU**
** MUST BE HELD
FOR 2 SECONDS TO
ACTIVATE
SELECT
JAMB
CABLE
ACCESS
HOLE
WALL
204082
Rev B 10/11/2012
Page 1 of 12
