Ultrasonic Cleanings
D01626
Description
The D01626 a semi automatic wire stripping tool incorporating a flexible jaw cutting edge consisting of a large number of independent
leaf blades on as resilient base. These blades surround each conductor by self adjustment thus reducing conductor damage. By
using a flexible jaw principle, single, round or flat wires may be stripped with ease. The tool will strip wires up to #15 AWG (1.5 mm
overall cross-section. Make adjustments using the small screw driver supplied

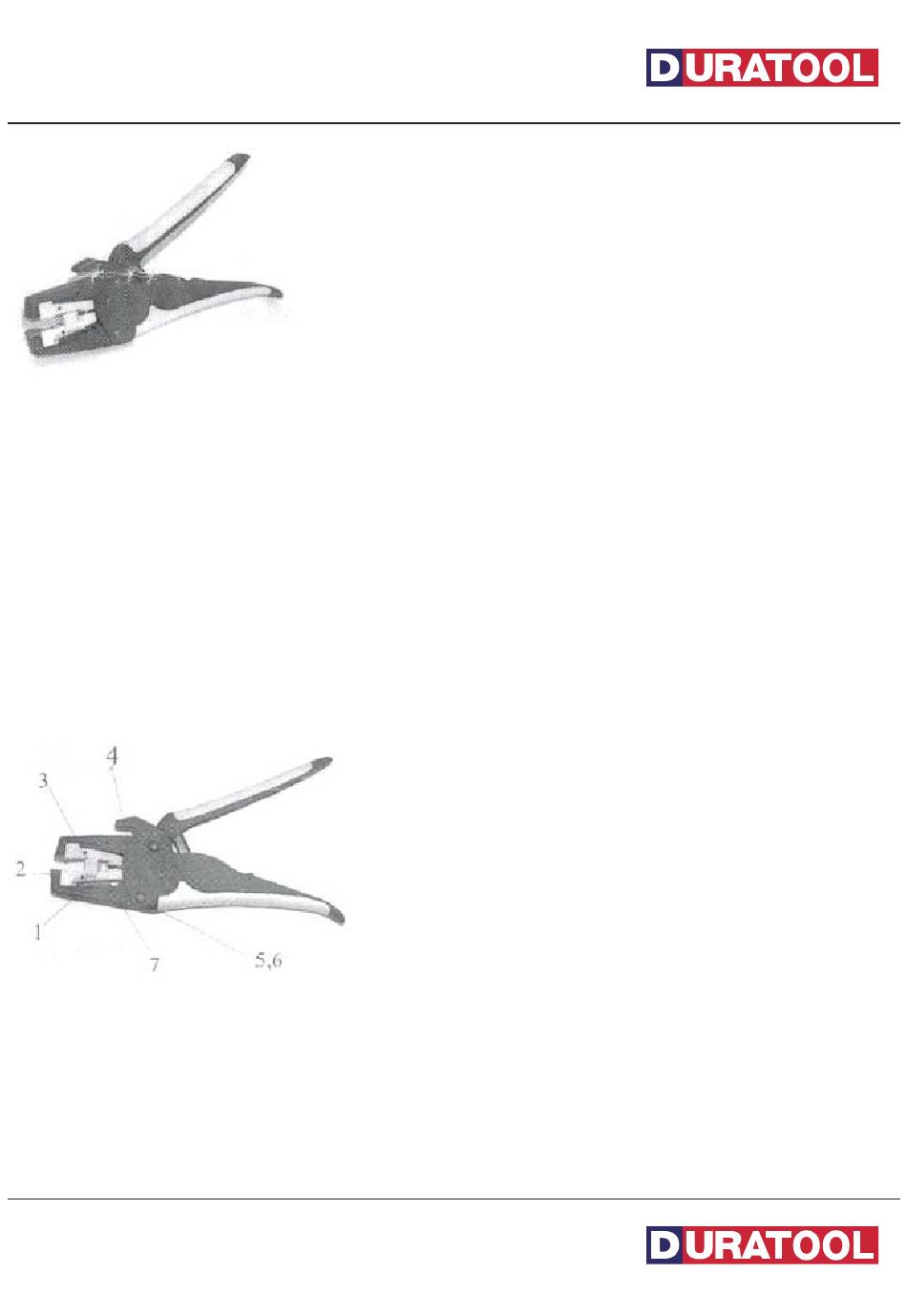

Stripping Depth Adjuster
For the normal range of wires the depth adjusting screw (1) should be advanced 3/4 turn (clockwise) from its maximum retracted
position (retraction counterclock wise is captivated). Deeper or shallower penetration of insulation is achieved by turning the screw
accordingly. Optimize its position so that conductors are not damaged
Gripping Jaw Inserts
Select jaw inserts (2) according to the gripping surface required
Red Pads
: Coarse gripping
Green Pads
: Medium gripping
White Pads
: Fine gripping
For very delicate and thin insulations use the white pads
Stripping and Cutting
1. To strip, hold the wire inside the jaws up to the stop (3) and squeeze the handle
2. A cutting blade (4) is provided for wire cropping, fully shielded to protect the operator
Stripping Jaw Replacement
1. Remove black cover cap (5) and extract the jaw pivot pin (6)
2. Pull out moving jaw holder (7)
3. Remove old stripping jaws by pulling out the holding rivet within
4. Replace with new jaws and reverse-instructions for re-assembly
www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
www.mcmelectronics.com
Page <1>
2
)
30/05/12 V1.1
