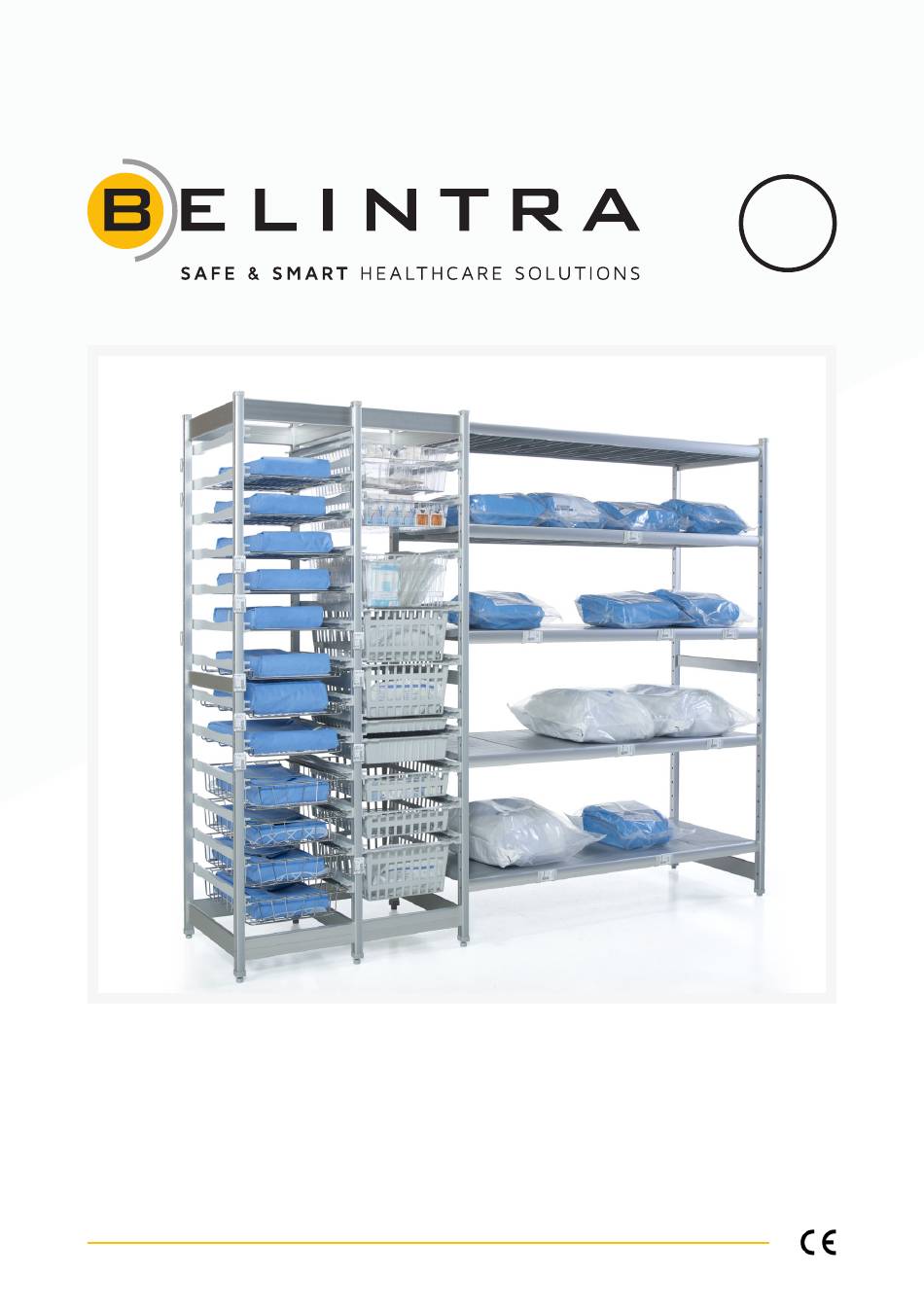

INSTRUCTIONS FOR USE OF UBEFLEX
STORAGE SYSTEM
®
version 3.0
BELINTRA NV www.belintra.com
© BELINTRA, NV – UBFL/HL/US/0003 - 01/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ubeflex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belintra Ubeflex

Summary of Contents for Belintra Ubeflex

  • Page 1 INSTRUCTIONS FOR USE OF UBEFLEX STORAGE SYSTEM ® version 3.0 BELINTRA NV www.belintra.com © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...

  • Page 2: Table Of Contents

    This edition supersedes all previous editions. The specifications in this document may be updated without notice. Reproduction or disclosure of the contents of this document is not permitted without the specific consent of Belintra, Inc. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...

  • Page 3: Definitions

    13/64 During assembly, make sure the shelf is level. • Do not stand or climb on the UBeFlex shelving system. ® • In the case of a column set-up, do not remove more than 1 basket at a time from the runners.

  • Page 4: Column

    The movable version may not be used as a cart within a logistics system. For this, use the UBeFlex ® • Only use the components supplied by Belintra to assemble the UbeFlex shelving system. ® Warning - maximum loading capacity: •...

  • Page 5: Introduction

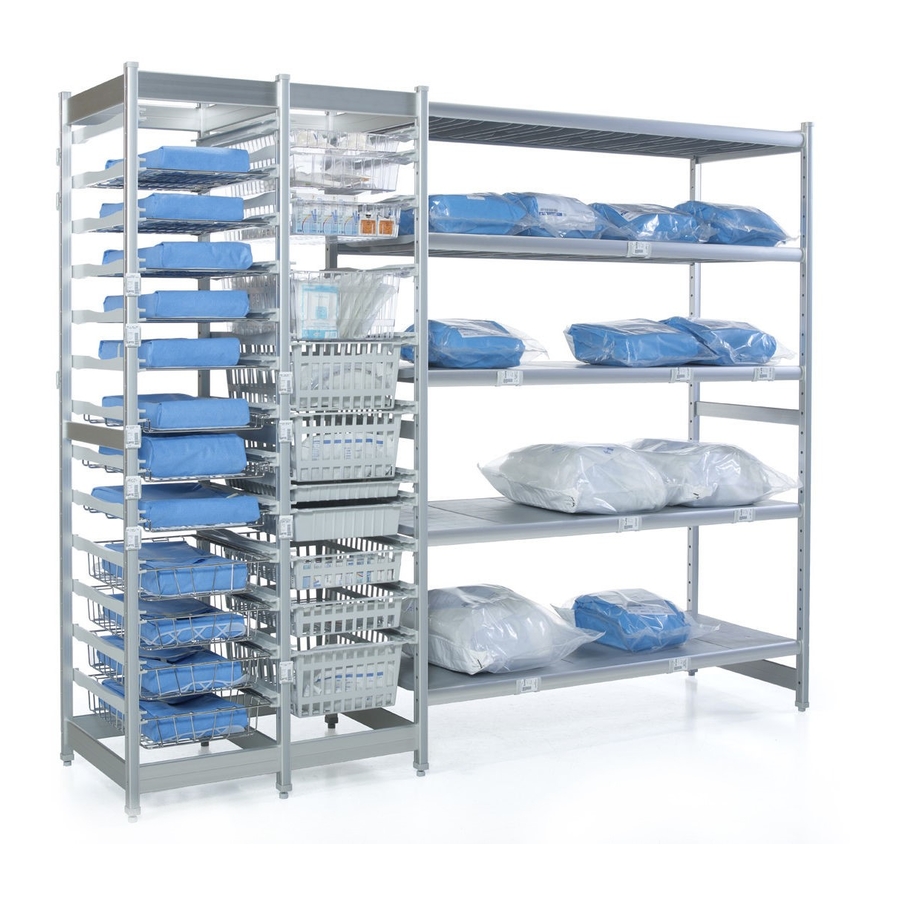

    48 hours of receipt. • In case of damage, retain all packaging materials for inspectors. 3. Introduction This manual describes the correct use, installation and safety instructions of the UbeFlex ® Belintra shelving system. The UBeFlex storage system is used in the medical sector, and can be used on a highly versatile ®...

  • Page 6: Product

    A spacer set consists of 4 ® connecting elements that join the posts together. You need 2 posts and 1 spacer set to build 1 column. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 7 In the case of a D-type and W-type column, 16 x 24 inch modules (see specification). In the case of a DIN-type column, 12 x 24 inch modules REMARK (see specification). The height of the module is not important here. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 8 14 inch 24” (!) 11/64 Specification of module for DIN-type column ❱❱ ❱❱ Shelf: Basket/tray: 24” (!) 16” (!) 24” (!) max 22 inch 3/64 24” (!) max 14 inch 24” (!) 11/64 © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 9 12 inch, up to a maximum of 72 inch. A shelving with a length of 36 inch (as in the above illustration) has 3 shelves. The shelves are made from plastic (polypropylene). © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 10 Height 77 inch (including wheels) 11/64 24 usable runner positions WARNING The limited mobility is in connection with floor cleaning and not intended for use as a cart. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 11 Matrix of structure – column ❱❱ ❱❱ Column Post Connecting element Stationary Movable D-type W-type DIN-type © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 12 Length 24 inch 16010 00044 16010 00050 Length 36 inch 16010 00045 16010 00051 Length 48 inch 16010 00046 16010 00052 Length 60 inch 16010 00047 16010 00053 Length 72 inch 16010 00048 16010 00056 © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 13 Matrix of structure – chromed steel shelves ❱❱ ❱❱ 16010 00085 16010 00071 16010 00071 16010 00086 16010 00071 16010 00087 16010 00088 16010 00071 16010 00089 16010 00071 16010 00090 16010 00071...
  • Page 14 ® You can extend endlessly, possibly in combination with shelves. To extend a column you need 1 post and connecting elements. Examples in illustration below. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 15 Always combine columns or shelf set-ups of the same depth. The following set-up is an example of a combination of 2 D-type columns with D-type shelf, length 36 inch. Do not move more than 5 columns connected on mobile basis WARNING © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...

  • Page 16: Optionally Available

    5. Optionally available 1. Roof & bottom panels ❱❱ ❱❱ D-type (16010 00060) W-type (16010 00031) DIN-type (16010 00069) 2. Wall mount ❱❱ ❱❱ Ø7 © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 17 Label holder for on posts - portrait (insert 2 inch) 23/64 37/64 Label holder shelving – landscape (insert 2 inch) 23/64 37/64 Insert (2 inch) 23/64 37/64 4. Cap for covering unused positions ❱❱ ❱❱ © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 18 5. Divider & closing profile ❱❱ ❱❱ 16010 00069 12 inch 24 inch 36 inch (16010 00085) (16010 00086) (16010 00087) 48 inch 60 inch 72 inch (16010 00088) (16010 00089) (16010 00090) Divider Closing profile...

  • Page 19: Mounting Open Frame On Telescopic Runners

    Frame on telescopic runners up to maximum height of 39 inch. • Always in UBeFlex set-up in combination with wall mount. ® • Max. load: 55 lbs. WARNING • Only extract one frame at a time. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 20 (2). Mounting the runners ❱❱ ❱❱ Mount the telescopic runners (1) on the UBeFlex posts and make sure to check if the left and ® right runners are mounted on the correct side. Use the caps and turn-pins to secure the runners on the posts.

  • Page 21: Installation Instructions

    48 inch connection shelves 60 inch connection 72 inch connection Hooks for shelves Hooks Hooks for columns D-type shelf (synthetic) D-type shelf (chromed Shelves steel) W-type shelf D-type runner Runners W-type runner DIN-type runner © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 22 Before you start assembling the UBeflex shelving system, check the contents of the sets. See ® overview below: Package Components D-type post stationary D-type post movable W-type post stationary W-type post movable D-type spacer set 4E + 8P W-type spacer set...
  • Page 23 1. Use the correct hooks. A hook for a spacer has a marking (0) and is curved at the bottom. 2. Two spacers are always mounted at the top and 2 at the bottom. The top and bottom holes are used, to make sure the column remains stable. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 24 E, F or G - 4x  OK  Not OK WARNING Make sure both posts are level when assembling the UBeFlex shelving ® system. With stationary set-ups, the difference in level can be adjusted using the adjustable feet. WARNING Make sure the connecting elements are properly clamped to the hooks.
  • Page 25 Push the guide against Make sure the tab snaps locations. Make sure both the post and snap the tab into place over the edge of pins are in the locations. in place. the post. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 26 2. At least 2 shelves per column, with one shelf always in one of the 3 bottom positions and one shelf in one of the 3 top positions. © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 27 2. Use a rubber hammer to tap the connecting elements, so that they sit securely in place.  Not OK  OK H, I, J, K, L or M - 2x © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...
  • Page 28 Q or R Example of set-up with 7 shelves. Repeat steps 1 to 3 - 7x © BELINTRA, NV – UBFL/HL/US/0003 - 01/2018...

  • Page 29: Maintenance And Inspection
