QUICK PROGRAMMING FOR TELIS 1 CHRONIS RTS

DESCRIPTION

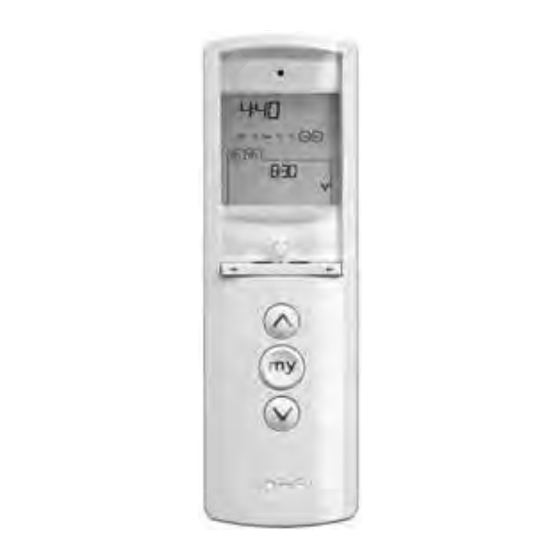

The Telis 1 Chronis RTS® combines the functionality of a single
channel RTS hand-held control with the convenience of a
programmable timer. This new control option is compatible with
all Radio Technology Somfy® (RTS) motorized applications and offers
simple programming and easy operation.

MAIN FUNCTIONS

The timer function has 2 commands / day:
One up & one down (default up @ 7:30 am & down @ 8:00 pm).
2 possible schedules:
● Daily schedule - same cycle everyday.
● Weekday & Weekend schedule: 2 UP and DOWN
times (1 for weekdays & 1 for weekends).
Quick Set function: A simple press and
hod of the UP or DOWN button for 11
seconds saves the current time as the
opening or closing time of motorized
applications every day.
Vacation mode: Varies scheduled time to
simulate a lived in look (randomly opens
and closes from 0 to + 30 minutes).

ADDITIONAL FUNCTIONS

● Pre-programmed in factory : Daily programming : Up at 7:30 am /
DOWN at 8:00 pm.
● Ability to manually modify scheduled times via selection button &
navigation keys.
● Automatic adjustment for daylight savings time.
● Low battery indication - customers are notified when batteries need
replacing (AAA batteries).
www.AVOutlet.com
98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTS 1 Chronis and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telis RTS 1 Chronis

Summary of Contents for Telis RTS 1 Chronis

  • Page 1 QUICK PROGRAMMING FOR TELIS 1 CHRONIS RTS DESCRIPTION The Telis 1 Chronis RTS® combines the functionality of a single channel RTS hand-held control with the convenience of a programmable timer. This new control option is compatible with all Radio Technology Somfy® (RTS) motorized applications and offers simple programming and easy operation.

  • Page 2: Battery Installation

    QUICK PROGRAMMING FOR TELIS 1 CHRONIS RTS SET-UP Before using the Telis 1 Chronis RTS, all motor limits must be set and fully operational with another RTS transmitter. After 2 minutes of inactivity, the Telis 1 Chronis RTS screen switches to sleep mode.
  • Page 3 QUICK PROGRAMMING FOR TELIS 1 CHRONIS RTS SETTING THE GENERAL PARAMETERS When the batteries are first installed, the transmitter will enter programming mode. “SET” and “YEAR” appear on the screen, with the year flashing. ● Press the arrow buttons ( ) to modify the parameter.
  • Page 4 STEP 2: Select the Telis 1 Chronis RTS (single channel) to be added or deleted. STEP 3: Press and hold the PROGRAM BUTTON on the Telis 1 Chronis RTS until the window covering jogs. The Telis 1 Chronis RTS is now added or deleted from the window covering memory and will now operate the window covering.
  • Page 5 QUICK PROGRAMMING FOR TELIS 1 CHRONIS RTS EDITING PRE-PROGRAMMED SCHEDULES Schedule Quick Set The Quick Set feature allows users to change schedule activation UP and DOWN times to the current time of day. STEP 1: Press the arrow buttons (< or >) to select the (UP) or (DOWN) time you wish to edit.
  • Page 6 QUICK PROGRAMMING FOR TELIS 1 CHRONIS RTS EDITING SCHEDULES 1. Press the arrow keys (< or >) to select the time you wish to edit. 2. Press and hold the selection button ( until the word EDIT appears and flashes.
