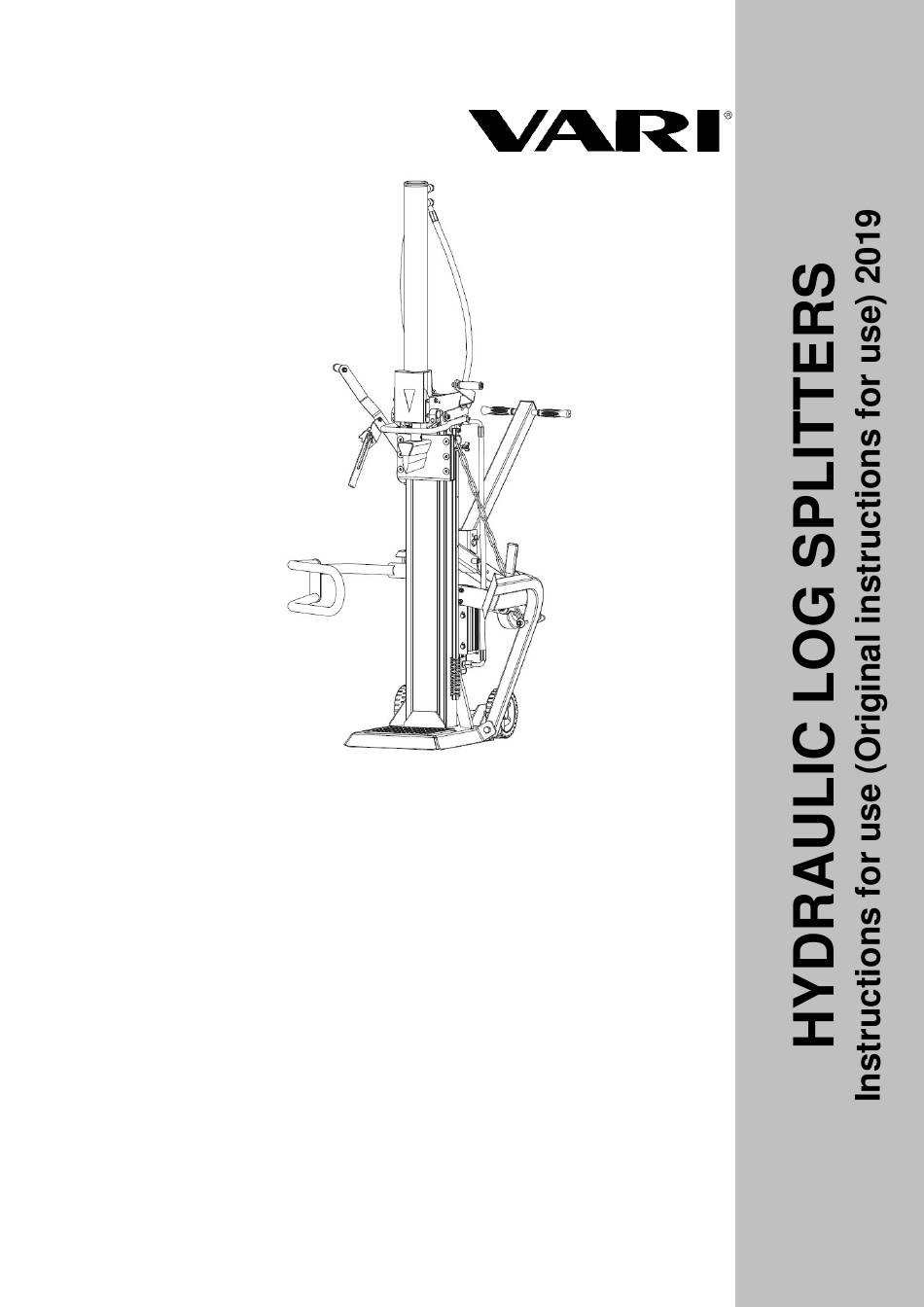

Vari 65715 Instructions For Use Manual

11/14 ton super force hydraulic log splitters

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

FOR YOUR SAFETY

READ AND UNDERSTAND THE ENTIRE MANUAL

BEFORE OPERATING THE MACHINE

MODEL: VARI 11 TON SUPER FORCE

VARI 14 TON SUPER FORCE

SERIAL NUMBER:

Both model number and serial number may be found on the main label.

You should record both of them in a safe place for future use.

Save This Manual for Future Reference

Table of Contents

Need help?

Do you have a question about the 65715 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vari 65715

Page 1 FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THE MACHINE MODEL: VARI 11 TON SUPER FORCE VARI 14 TON SUPER FORCE SERIAL NUMBER: Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use.
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................2 ENVIRONMENT ......................2 SYMBOLS ........................3 SAFETY........................4 SPECIFICATIONS ...................... 8 APPLICATION CONDITIONS ..................8 ELECTRICAL REQUIREMENTS ................8 CONTENTS SUPPLIED ..................... 9 ASSEMBLY ........................ 9 TRANSPORT ......................13 DELIVERING LOG SPLITTER TO WORK SITE ............14 SPLITTER OPERATION ..................
Page 3: Symbols
SYMBOLS The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use. Read these instructions in full before using the machine. Wear safety footwear! Wear protective gloves! Wear eye protection! Wear hearing protection! Keep your work space tidy! Untidiness may result in accidents.
Page 4: Safety
Do not remove jammed logs with your hands. Caution! Thrown objects. Before starting any repairs, maintenance or cleaning, always disconnect the power. Avoid injury from the movement of the splitting blade. Keep bystanders away from the working area. Do not split wood when machine is transporting. Do not split wood when machine is leaning.
Page 5 • AVOID DANGEROUS CONDITIONS Always operate your log splitter on dry, solid, level ground. Never operate your log splitter on slippery, wet, muddy or icy surfaces. The location you choose should be free from any tall grass, brush or other interferences. There should be plenty of room for handling, and help the operator stay alert.
Page 6 • PREVENT FIRES Do not smoke or have open flames when operating or refilling the log splitter. Never operate the log splitter near a flame or candle. Oil is flammable and can explode. • KEEP BYSTANDERS AWAY Allow only one person to load and operate the log splitter. Always keep bystanders, including visitors, children and pets away from the work area, especially when the log splitter is under operation.
Page 7 • MAINTAIN YOUR LOG SPLITTER WITH CARE Before cleaning, repair, inspecting or adjusting, shut off the machine and make certain all moving parts have stopped. Always clean the unit after each use. Keep the log splitter clean for best and safest performance. Follow instructions for lubricating.
Page 8: Specifications
SPECIFICATIONS Model 65710 65715 Trade Name VARI 11 TON SUPER VARI 14 TON SUPER FORCE FORCE Motor (S6 40 %)* 400 V 3~ 50 Hz 400 V 3~ 50 Hz 3300 W 5,3 A 3500 W 7,1 A 10-30 cm...
Page 9: Contents Supplied
CONTENTS SUPPLIED 5. Wheel 6. Wheel axle 7. Support wheel 8. Operator’s manual 9. Hardware bag, including 1. Log splitter frame & power station 2. Guard arm 3. Log lift 4. Retaining hook ASSEMBLY 1. Insert the wheel axle into the holes of the mount bracket.
Page 10 2. Keeping the support stand against the wedge, remove the R-Pin and bolt to release cylinder. Lower both control handles to raise the wedge ram to the top. Insert the bolt and R-pin to secure the cylinder.
Page 11 3. Release both control handles to retract the wedge ram. Remove the support stand. 4. Align the hole and locking pin of the guard arm with the mount bracket. Secure the guard arm with an M10x30 hex bolt, a washer and a nut from the hardware bag.
Page 12 5. Position the retaining hook onto the frame and secure with two M10x30 hex bolts and nuts. 6. Position the log lift inside the mounting bracket and align with mounting bracket holes. Secure with an M16x90 hex bolt and nut. Hook the lift chain to wedge slide guide.
Page 13: Transport
TRANSPORT Pull the spring pin and slide the square tube of the support wheel into the holder. Loosen the spring pin to fix it after selecting the appropriate hole. The upper hole is for transport and lower hole only storage. Because the support wheel a universal wheel, it...
Page 14: Delivering Log Splitter To Work Site
DELIVERING LOG SPLITTER TO WORK SITE The log splitter is equipped with 2 wheels for minor moving. To move the log splitter to the work site, grip the handle (a) to tilt the log splitter slightly after making sure the oil tank cover is tightened.
Page 15 Turn the motor switch to the ON position to start the log splitter. To stop the machine, just turn the motor switch to the OFF position. Make sure the direction of motor rotation is correct. Turn the motor on; the wedge ram should rise to the highest position automatically.
Page 16 2. Hold left press lever. Meanwhile, move splitter wedge down pressing right splitting lever to the half stroke to split the log slowly first and then press it to the end until the log is completely split.
Page 17 3. Return the splitter wedge to the starting position. Operate spring-loaded retract control lever lift wedge above the height of log to be split. The spring is already connected to the handle in factory. Splitting Lever The splitting force and speed are governed by the splitting lever.
Page 18: Free A Jammed Log
Break log in the direction of its growing grain. Do not place log across the log splitter for splitting. It may be dangerous and may seriously damage the machine. Do not remove jammed logs with your hands. Never use another people to help you with freeing jammed log.
Page 19: Sharpening Wedge
Use a drain pan to aid in the removal of all used oil and particles. Remove oil drain plug to drain oil from hydraulic transmission system. Examine oil for metal chips as a precaution to future problems. After oil has been completely drained from the machine, reinstall drain plug.
Page 20: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Motor does not start Switch is OFF ON the switch Change pole switching device Incorrect motor rotation in the plug with a screwdriver Incorrect connection direction Reverse polarity by electrician Valve is not opened owing to the connection parts Check and tighten the parts Log Splitter does not...
Page 21: Part List
PART LIST...
Page 22 Pos. Part No. Name Pos. Part No. Name 211001 Left guard bracket 211039 Combined washer 10 211002 Bolt M10x30 211040 Upper hose 211003 Flat washer 10 211041 Valve connecter 211004 Locating pin handle 211042 Screw M12x120 211005 Locknut M10 211043 Operating handle grip 211006 Lift chain ø6...
Page 23: Disposal Of Packaging And Machine After The End Of Service Life
Pos. Part No. Name Pos. Part No. Name 211076 Screw M4x60 211097 O-ring 50x2,65 211077 Switch 211098 Oil filter K 211078 Locknut M4 211099 Bush K 211079A Motor 11 ton 211100 Flange 211079B Motor 14 ton 211101 Locating plate 211080A Gear pump 11 ton 211102 Hook...
Page 24: Instructions For Ordering Spare Parts
All components should be ordered in the nearest service shop or at your dealer’s. In the case of any confusions concerning the spare parts or technical issues, the VARI a.s. commercial, customer-service or technical departments are prepared to answer all your inquiries. ADDRESS OF THE MANUFACTURER TIYA Hydraulics Co., Ltd., Fuqian Street North, Gaoze, 262300 Wulian, Shandong,...
Page 25: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY The original declaration of conformity as issued by the manufacturer of the product.
