Summary of Contents for NetUP Streamer HEVC

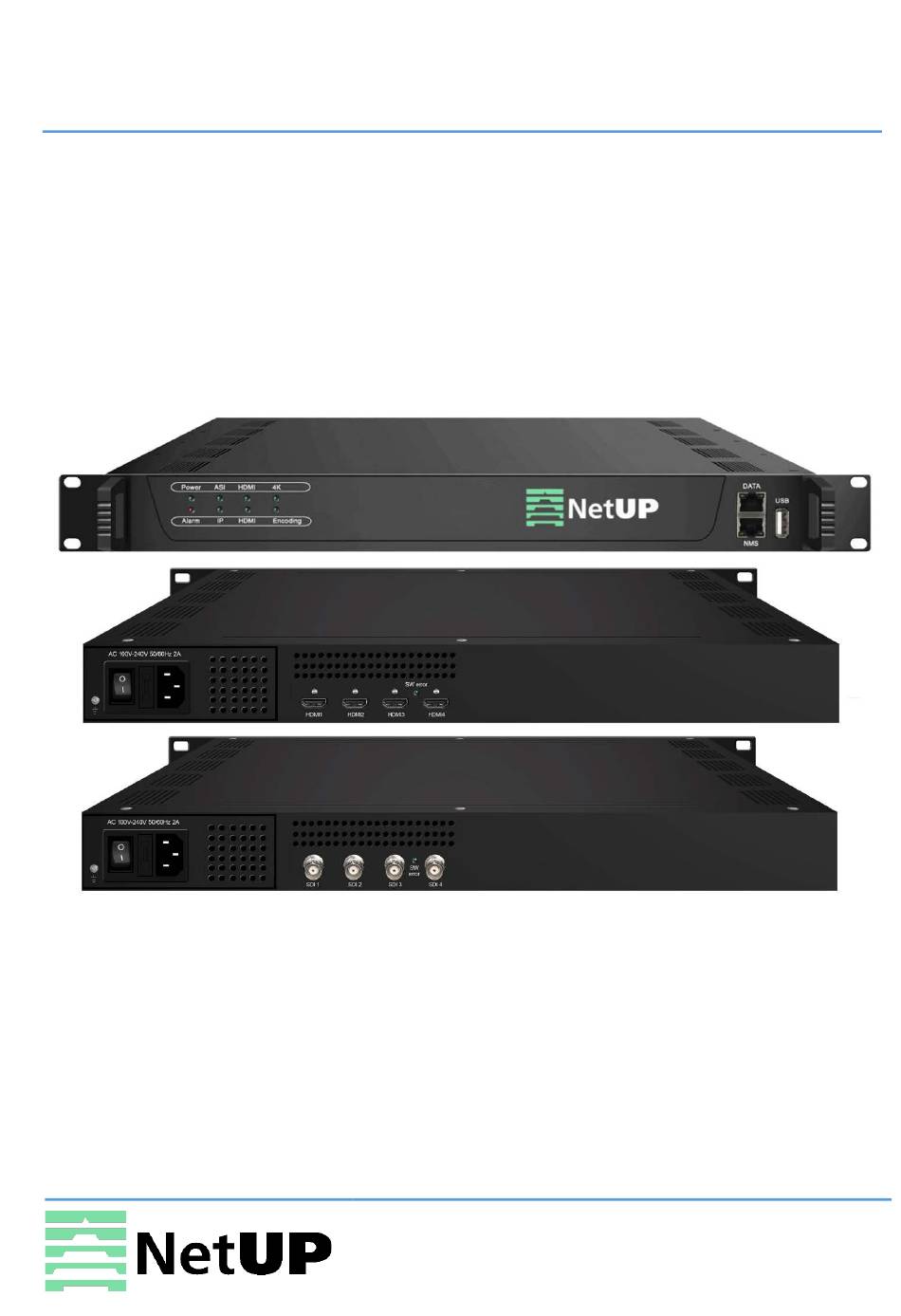

- Page 1 NetUP Streamer HEVC User manual 20 March 2019 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
-
Page 2: Table Of Contents
NetUP Streamer HEVC. User manual Contents Chapter 1 Introduction ................3 Appearance and illustration ....................3 Specifications ......................... 4 Chapter 2 Installation guide ..............5 Device’s installation flow chart ....................5 Packing list check ........................5 Safety instructions ......................... 5 Environment requirement ..................... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction NetUP Streamer HEVC is a professional HD audio and video encoding and multiplexing device. It has 4/8/12 SDI/HDMI video input interfaces, and supports H.265 HEVC/H.264 AVC video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 4/8/12 channels HD audio &... -
Page 4: Specifications
NetUP Streamer HEVC. User manual Specifications 4/8/12×HDMI input (1.4), HDCP 1.4 Input 4/8/12×SDI input Encoding Format H.265/HEVC, H.264/AVC Resolution 1920×1080_60P, 1920×1080_59.94P 1920×1080_50P, 1920×1080_30P 1280×720_60P, 1280×720_59.94P Video 1280×720_50P, 1280×720_30P encoding Chroma 4:2:0 Bitrate 1Mbps~15Mbps (each channel) Rate Control CBR/VBR GOP Structure... -
Page 5: Chapter 2 Installation Guide
NetUP Streamer HEVC. User manual Chapter 2 Installation guide Device’s installation flow chart Connecting Packing list Installing grounding Connecting Setting Running check device wire and signal cable parameter device power cord Before installing and connecting the device, carefully read the environment and... -
Page 6: Environment Requirement
NetUP Streamer HEVC. User manual Environment requirement Item Requirement Room space When installing a rack in the room, make sure the distance between two rows of racks is 1.2~1.5m and the distance to the wall is at least 0.8m. Room floor Electric isolation. -
Page 7: Chapter 3 Web Nms Operation
IP conflict The default IP address of NetUP Streamer HEVC is 192.168.0.136. Thus, set the computer’s IP address to 192.168.0.X, where X can be from 0 to 255, except 136. Open a web browser, enter the device’s IP address in the browser address bar and press Enter. -
Page 8: Summary → Status
NetUP Streamer HEVC. User manual Summary → Status After login, you will get the Status page which displays the current system status (Figure-2). Use this menu to navigate between the interface pages System information Figure-2... -
Page 9: Parameters → Encoder
NetUP Streamer HEVC. User manual Parameters → Encoder Use the Encoder page to set video and audio parameters for each encoding channel (Figure-3). Select a channel parameters Check the input program information and bitrate Confirm changes Figure-3... -
Page 10: Parameters → Ip Stream
NetUP Streamer HEVC. User manual Parameters → IP Stream Use the IP Stream page to set IP output parameters (Figure-4). Quick config Channel config Figure-4 Clik on the Quick config button to open the dialog box as Figure-5: Figure-5 Clik on the Channel config button to open the dialog box as Figure-6:... -
Page 11: System → Network
NetUP Streamer HEVC. User manual System → Network Use the Network page to edit networking parameters (Figure-7). Figure-7 System → Account Use the Account page to change current password and username (Figure-8). Figure-8... -
Page 12: System → Configuration
NetUP Streamer HEVC. User manual System → Configuration Use the Configuration page to save or restore system configuration, to revert to factory settings, to work with backups or to load configurations (Figure-9). Figeru-9 System → Firmware Use the Firmware page to upgrade firmware for the device (Figure-10). -
Page 13: System → Log
NetUP Streamer HEVC. User manual System → Log Use the Log page to see system logs (Figure-11). Figure-11... -
Page 14: Troubleshooting
NetUP Streamer HEVC. User manual Troubleshooting Check the following before troubleshooting: • Whether the server room is well ventilated and hot air from the back panel of the device is effectively removed? • Does the supply voltage meet the power requirements of the device? •...
