Summary of Contents for Vision Audio Visual TECHCONNECT TC2-VGAHDMI

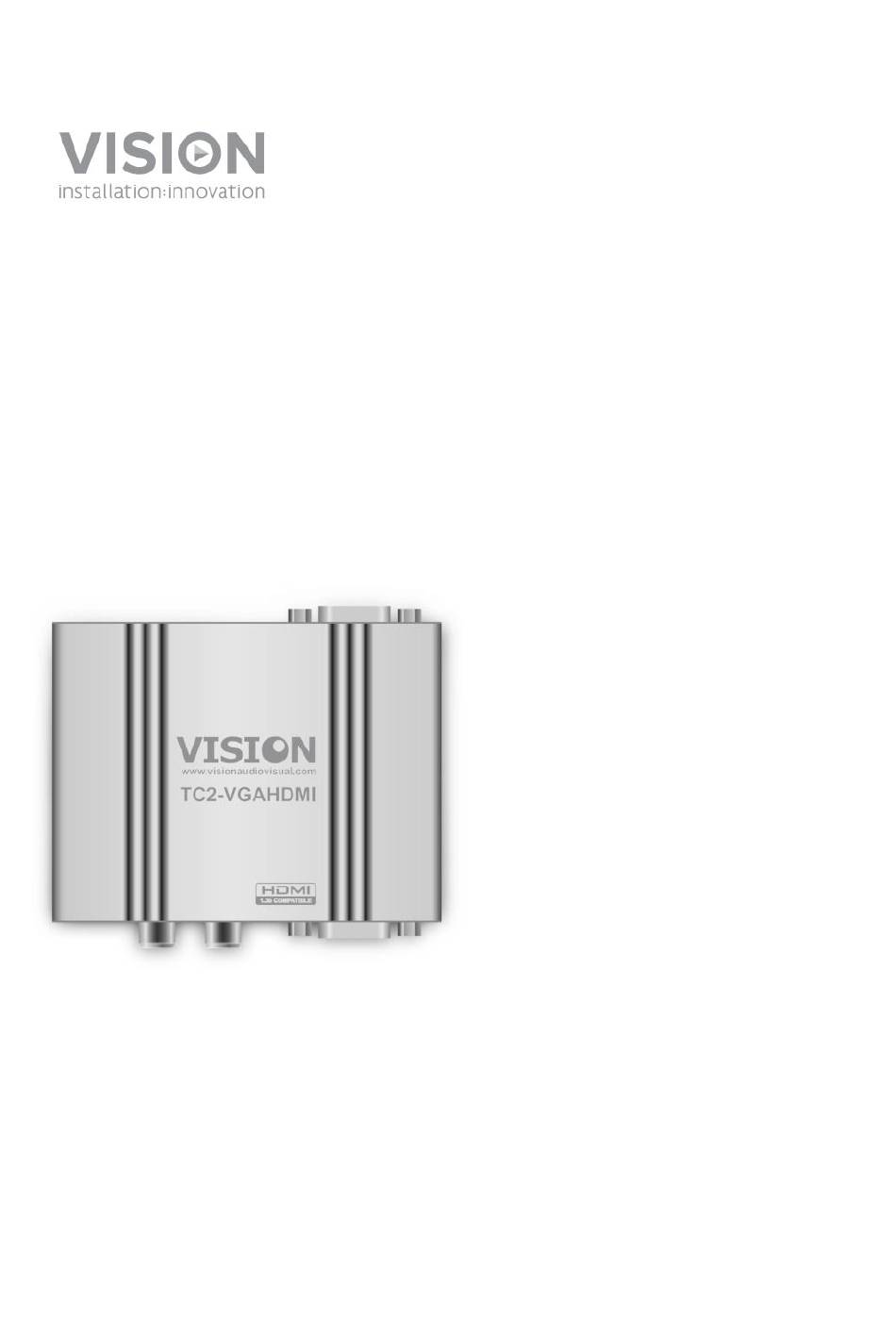

- Page 1 TECHCONNECT TC2-VGAHDMI OWNERS MANUAL TC2-VGAHDMI_manual_en...
- Page 2 www.visionaudiovisual.com/techconnect/tc2-vgahdmi TC2-VGAHDMI_manual_en...
-
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY Where applicable Vision products are certified and comply with all known local regulations to a „CB Certification‟ standard. Vision commits to ensure all products are fully compliant with all applicable certification standards for sale in the EU and other participating countries. The product described in this owner manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. -
Page 4: Place Of Installation
USE ONLY DOMESTIC AC OUTLETS Connecting the unit to an outlet supplying a higher voltage may create a fire hazard. HANDLE THE POWER CORD WITH CARE Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself. Pulling the cord may damage it. -
Page 5: Front And Rear Panels
FRONT AND REAR PANELS ① ② ③ Reset button 2 x Phono (analogue audio input) VGA Input ④ ⑤ ⑥ ⑦ ⑧ VGA Output (for local display) 3.5mm Minijack analogue audio output (for local audio system) HDMI Output Status/Power Lights 5V 2A Power input TC2-VGAHDMI_manual_en... -
Page 6: Installation
INSTALLATION CONNECT INPUTS This product takes VGA and audio signals and merges them into HDMI signal. Audio connection is optional. CONNECT OUTPUT Use a high quality cable to connect the HDMI output to display device. CONNECT POWER With the switch off at the wall, connect power adaptor. TURN POWER ON FOR ALL DEVICES The sequence does not matter. - Page 7 DETAILED HDMI INFORMATION Analogue Video Input Front End Interface Triple ADC with 12 - 140 MHz Sampling Rate Integrated line locked PLL generates pixel clock from HSYNC Integrated 5-bit pixel clock phase adjustment for precise sample timing control ...
-
Page 8: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No status light Check input and output cables Check source is turned on Status light flashing ... -
Page 9: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
