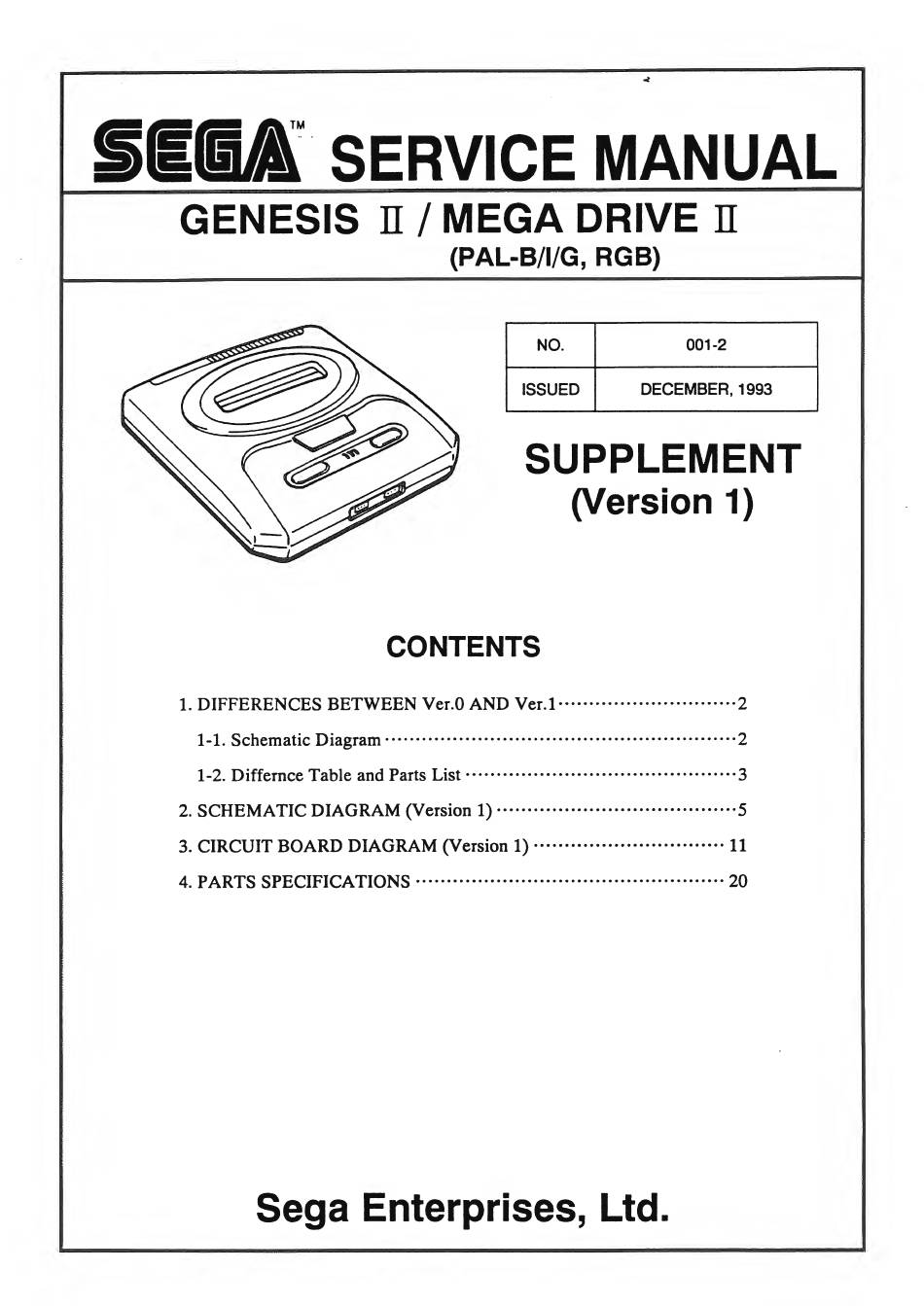

SERVICE MANUAL
GENESIS II
I
MEGA DRIVE II
(PAL-B/l/G, RGB)
NO.
001-2
ISSUED
DECEMBER, 1993
SUPPLEMENT
{Version 1)
CONTENTS
1.
DIFFERENCES BETWEEN Ver.0 AND Ver.l ·····························2
1-1. Schematic Diagram ·························································2
1-2. Diffemce Table and Parts List ············································3
2. SCHEMATIC DIAGRAM (Version 1) ··· ····································5
3. CIRCUIT BOARD DIAGRAM (Version 1) ······························· 11
4. PARTS SPECIFICATIONS · · · · · · · · · · · · · · ·· · ·
·
· · · · · · · · · · · · · · · · · · · · · · · · ·· · · · · · 20
