Operation; Castor Assembly - Halfords Advanced Series User Instructions

915mm
Drawer Dimension:
Row 1 to 2: 2xW=766mm H=50mm D=387mm
Row 3 to 4: 2xW=766mm H=78mm D=387mm
Row 5: W=766mm H=151mm D=387mm
Row 6: W=766mm H=251mm D=387mm
Maximum Weight per Drawer (x6): 35KG

OPERATION

Cabinet contents
Part Description
1
Cabinet Handle
2
Fixed Castor
3
Swivel Castor with Brake
4
M6 x 16 Bolt
5
M8 x 25 Bolt

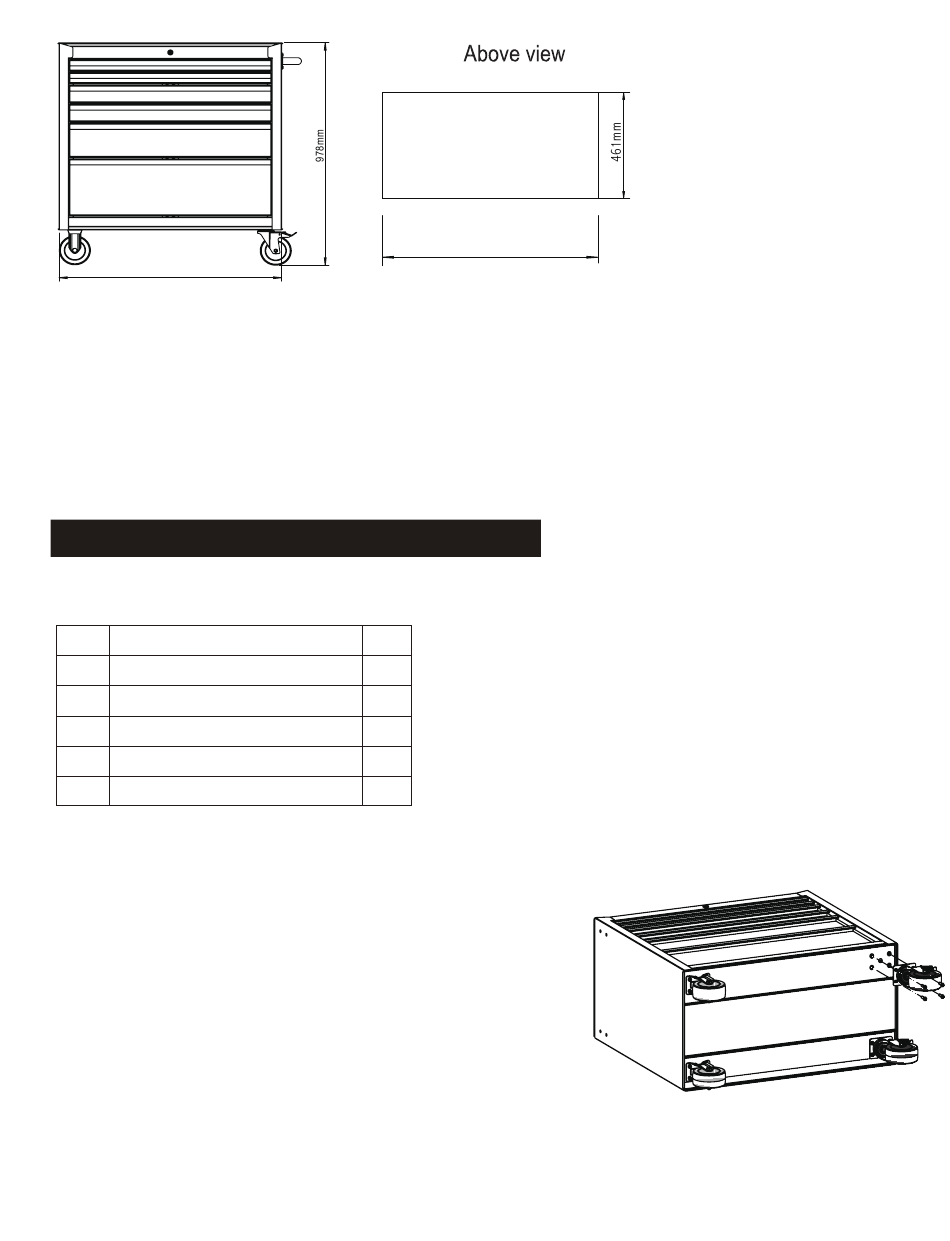

(1) CASTOR ASSEMBLY

Caution: this product is heavy, you will need assistance!
1. Lay the cabinet down on its back. Use the packaging
material to protect the paint finish.
2. Mount both swivel castors with brake on the same
side of the cabinet as the handle.
3. Attach each castor using the bolts (4 per castor).
4. Return the cabinet to its upright position.
915mm
Qty
1
2
2
4
16
(1)
3
