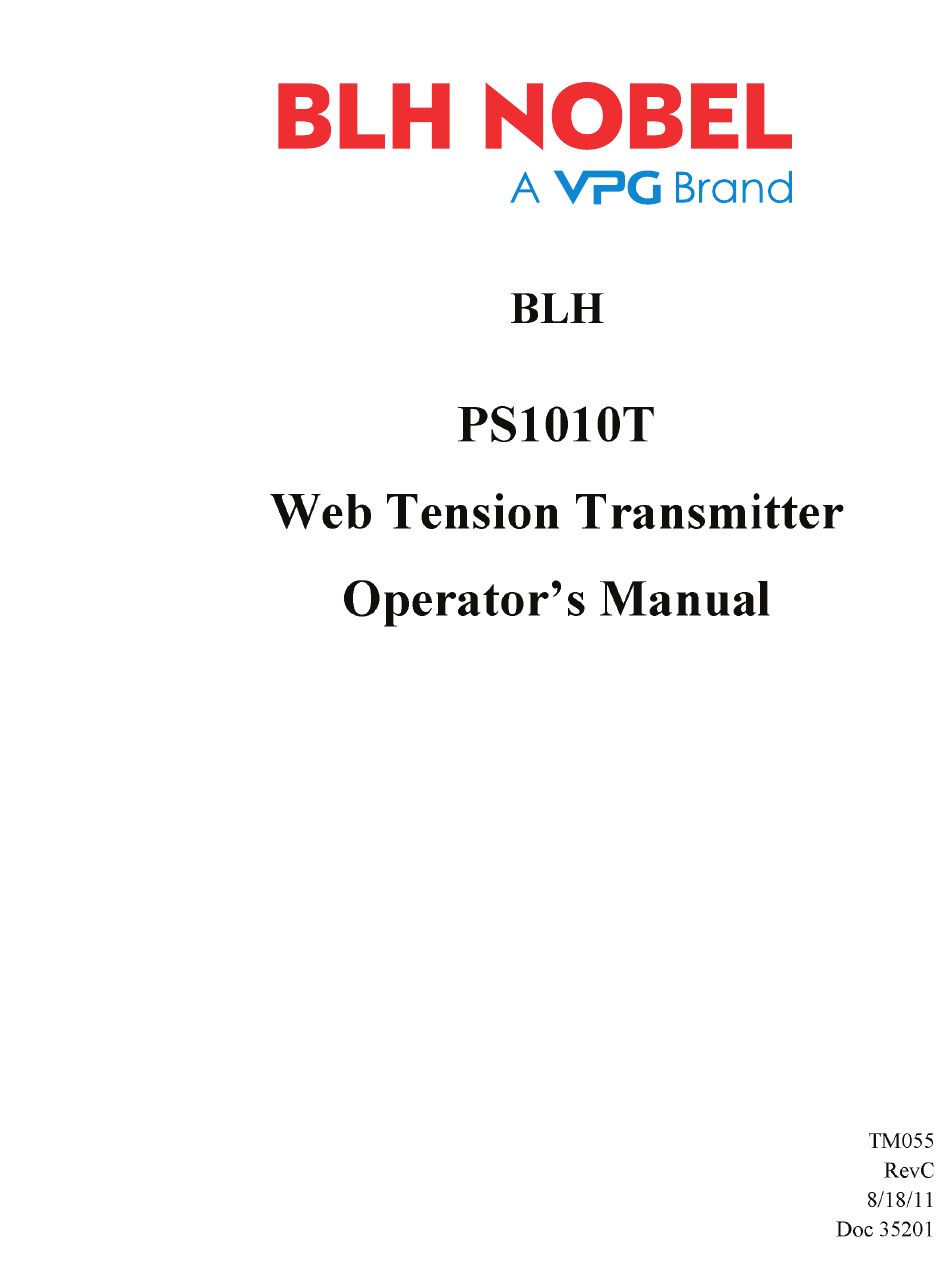

VPG BLH NOBEL PS1010T Operator's Manual

Web tension transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLH NOBEL PS1010T and is the answer not in the manual?

Questions and answers

Related Manuals for VPG BLH NOBEL PS1010T

Summary of Contents for VPG BLH NOBEL PS1010T

  • Page 2 NOTICE BLH Nobel makes no representation or warranties of any kind whatsover with respects to the contents hereof and specifically disclaims any implied warranties or merchantability or fitness for any particular purpose. BLH Nobel shall not be held liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this publication or its contents.

  • Page 3: Table Of Contents

    Table of Contents SECTION 1. Introduction ........................1 SECTION 2. Description ........................1 SECTION 3. General Specifications ...................... 2 SECTION 4. Installation ......................... 3 PS1010T connections ........................4 Mounting ............................4 SECTION 5. Calibration Procedure ....................... 5 Procedure ............................5 SECTION 6.

  • Page 4: Introduction

    SECTION 1. Introduction The PS1010T DIN Rail transmitter is designed for Web Tension applications. The transmitter functionality is to condition, amplify, filter and convert the load cell analog output signal into a calibrated voltage or current analog output signal. The transmitter provides full isolation between the load cell input signal, analog output signal and supply voltage.

  • Page 5: General Specifications

    SECTION 3. General Specifications Performance Full Scale Input 3.0 to +3.0 mV/V full bridge Dead Load Range ± 100% of full scale input Calibration Range 0.2 to 2.5 mV/V for nominal output Linearity 0.01% of full scale output Common Mode Rejection 120 dB minimum Common Mode Input ±20% of excitation voltage...

  • Page 6: Installation

    SECTION 4. Installation Carefully remove the PS1010T unit from its packing. Check that the unit is complete and undamaged. The transmitter power input and output wiring are inserted at one side of the unit, while the load cell input wirings are inserted at the other side. Therefore to prevent noise coupling problems, it is recommended to separate the power and transmitter output wirings from the load cell signal wirings.

  • Page 7: Ps1010T Connections

    4.1 PS1010T connections Load cell connection Terminal Description SHIELD Load cell cable shield input -SEN Negative sense input -EXC Negative excitation voltage input -SIG Negative output signal +SIG Positive output signal +EXC Positive excitation voltage input +SEN Positive sense input Power &...

  • Page 8: Calibration Procedure

    SECTION 5. Calibration Procedure The PS1010T transmitter provides both current and voltage output simultaneously; however the transmitter can only be calibrated for one output at a time. The zero and full scale calibration of the transmitter are accomplished via the transmitter front panel ZERO “+”, “-“ and GAIN “+”, “-“...

  • Page 9: Field Engineering

    SECTION 6. Field Engineering Authorized BLH Field Service Engineers are available around the world to install PS 1010T based web tension measurement systems and/or train factory personnel to do so. The field service department at BLH is the most important tool to assure the best performance from your application.
  • Page 12 blhnobel.com...
