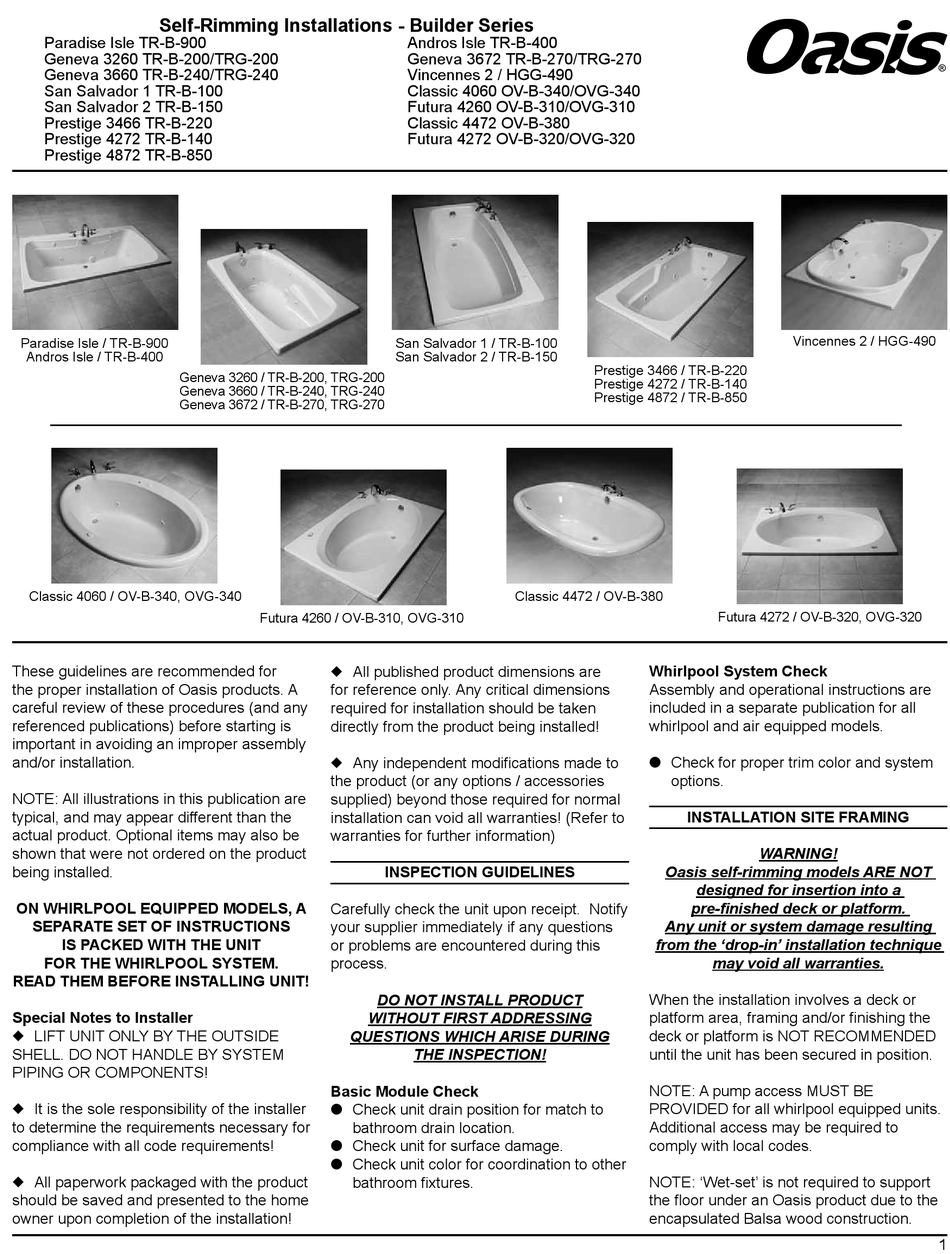

Self-Rimming Installations - Builder Series
Paradise Isle TR-B-900
Geneva 3260 TR-B-200/TRG-200
Geneva 3660 TR-B-240/TRG-240
San Salvador 1 TR-B-100
San Salvador 2 TR-B-150
Prestige 3466 TR-B-220
Prestige 4272 TR-B-140
Prestige 4872 TR-B-850
Paradise Isle / TR-B-900
Andros Isle / TR-B-400
Geneva 3260 / TR-B-200, TRG-200
Geneva 3660 / TR-B-240, TRG-240
Geneva 3672 / TR-B-270, TRG-270
Classic 4060 / OV-B-340, OVG-340
These guidelines are recommended for
the proper installation of Oasis products. A
careful review of these procedures (and any
referenced publications) before starting is
important in avoiding an improper assembly
and/or installation.
NOTE: All illustrations in this publication are
typical, and may appear different than the
actual product. Optional items may also be
shown that were not ordered on the product
being installed.
ON WHIRLPOOL EQUIPPED MODELS, A
SEPARATE SET OF INSTRUCTIONS
IS PACKED WITH THE UNIT
FOR THE WHIRLPOOL SYSTEM.
READ THEM BEFORE INSTALLING UNIT!
Special Notes to Installer
u LIFT UNIT ONLY BY THE OUTSIDE
SHELL. DO NOT HANDLE BY SYSTEM
PIPING OR COMPONENTS!
u It is the sole responsibility of the installer
to determine the requirements necessary for
compliance with all code requirements!
u All paperwork packaged with the product
should be saved and presented to the home
owner upon completion of the installation!
Andros Isle TR-B-400
Geneva 3672 TR-B-270/TRG-270
Vincennes 2 / HGG-490
Classic 4060 OV-B-340/OVG-340
Futura 4260 OV-B-310/OVG-310
Classic 4472 OV-B-380
Futura 4272 OV-B-320/OVG-320
San Salvador 1 / TR-B-100
San Salvador 2 / TR-B-150
Futura 4260 / OV-B-310, OVG-310
u All published product dimensions are
for reference only. Any critical dimensions
required for installation should be taken
directly from the product being installed!
u Any independent modifications made to
the product (or any options / accessories
supplied) beyond those required for normal
installation can void all warranties! (Refer to
warranties for further information)
INSPECTION GUIDELINES
Carefully check the unit upon receipt. Notify
your supplier immediately if any questions
or problems are encountered during this
process.
DO NOT INSTALL PRODUCT
WITHOUT FIRST ADDRESSING
QUESTIONS WHICH ARISE DURING
THE INSPECTION!
Basic Module Check
l Check unit drain position for match to
bathroom drain location.
l Check unit for surface damage.
l Check unit color for coordination to other
bathroom fixtures.
Prestige 3466 / TR-B-220
Prestige 4272 / TR-B-140
Prestige 4872 / TR-B-850
Classic 4472 / OV-B-380
Whirlpool System Check
Assembly and operational instructions are
included in a separate publication for all
whirlpool and air equipped models.
l Check for proper trim color and system
options.
INSTALLATION SITE FRAMING
Oasis self-rimming models ARE NOT
pre-finished deck or platform.
Any unit or system damage resulting
from the 'drop-in' installation technique
When the installation involves a deck or
platform area, framing and/or finishing the
deck or platform is NOT RECOMMENDED
until the unit has been secured in position.
NOTE: A pump access MUST BE
PROVIDED for all whirlpool equipped units.
Additional access may be required to
comply with local codes.
NOTE: 'Wet-set' is not required to support
the floor under an Oasis product due to the
encapsulated Balsa wood construction.
Vincennes 2 / HGG-490
Futura 4272 / OV-B-320, OVG-320
WARNING!
designed for insertion into a
may void all warranties.
®
1
