Maximum Dab+ Quick Manual

dab+ your car Quick Guide

CONTENTS OF PACKAGE

1. dab+ your car unit
2. FM RDS Modulator

3. Remote Controller

INSTALLATION

This is the easiest configuration to install in any car.
After the power cable is plugged into the 12V
DC jack on the dab+ your car, you need to turn
the power plug 90 degree clockwise or
counterclockwise as illustrated in Fig.2. This is
to ensure that the power cable will be firmly
connected to the dab+ your car all the time.
REMOTE CONTROLLER
SCAN
3
RESET
4
USER
Connection Diagram for "dab your car"
Remote Controller
To Vehicle +12V DC
Power Input
Cigarette Lighter Extention

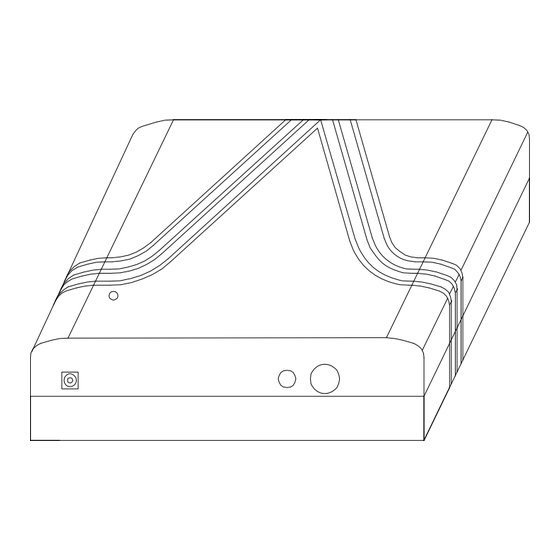

Fig.1: Rear Panel of DAB Receiver dab+ your car
ENTER
RESET : key to perform the system reset, change the FM Frequency
LS
DAB/AUX
1
NTER : key to conform a setting, begin an operation or revert to the
E
2
4. Power Cable with Cigarette Lighter Plug
5. Band III / L-Band Aerial
6. Quick Guide
12V DC AUX DAB
From External Audio Device
Fig. 2: Power connection with Lock Mechanism
DAB/AUX : key to switch to DAB mode or AUX mode
SCAN : key to scan DAB/DAB+ services
or change the FM RF Power Level
original display
I◄◄ , ►►I : keys for Quick Tune
▲ , ▼ : keys for Step Tune
▲LS▲ : key to recall the Latest Services
▼USER▼ : key to load settings of a particular user
1, 2, 3, 4 : keys to recall or set Memory Preset
Band III / L-Band
Aerial
2
1
12V DC
