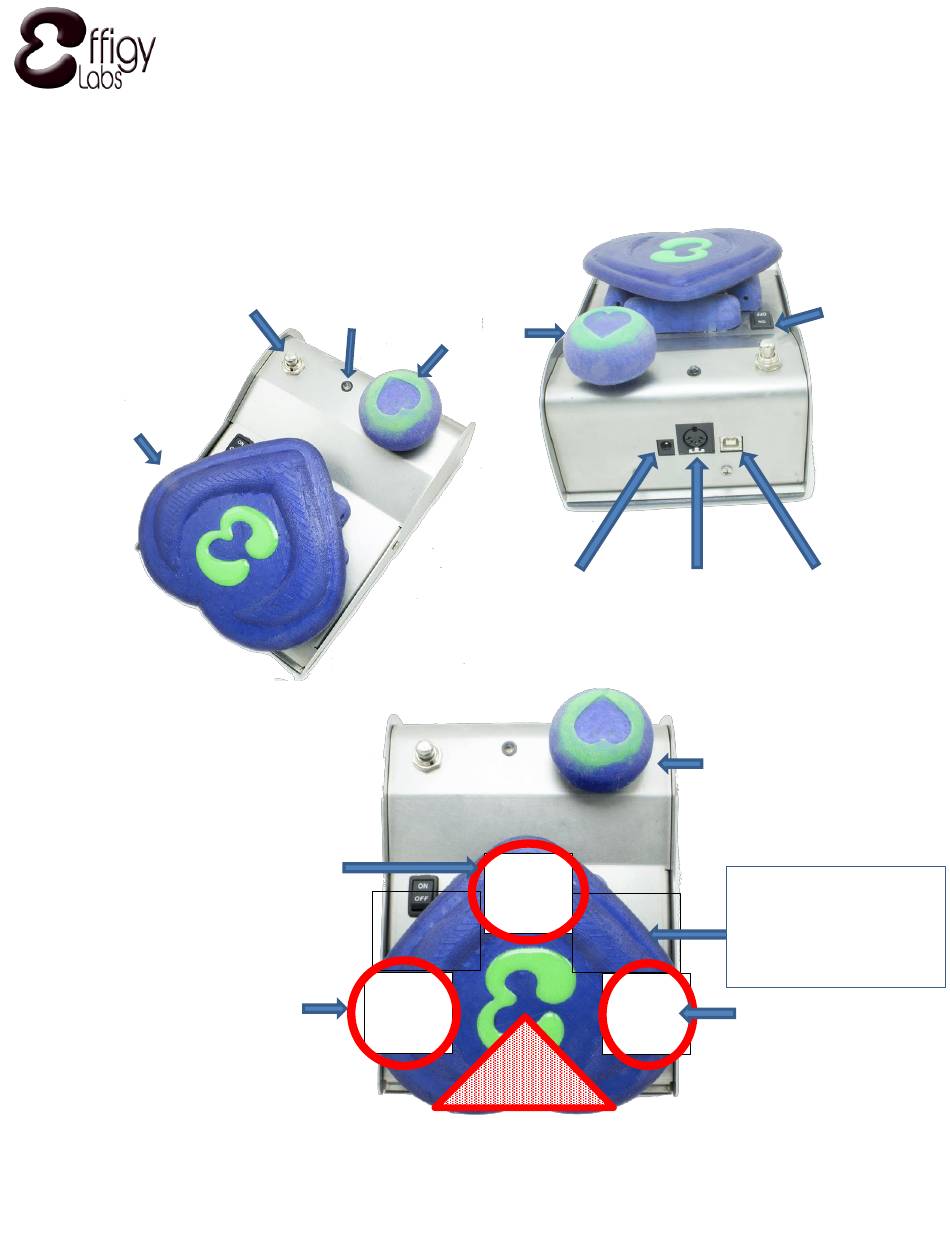

Mode
Switch
Top Plate
Press on the top
plate to select a
mode and play!
Position 3/Center
Position 1/Left
Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018
Effigy Control Pedal
Quick Start Guide and Limited Warranty
Comm
Light
Zone!
Press
Here
Knob
7-16v DC
Power In
Press
Here
Mix
Mix
Zone!
Backstop
MIDI
DIN-5 Out
Knob: either a
sensitivity ctl
or a 4
Mix zones: Sides
and center can
work together!
Press
Position 2/Rt
Here
Page 1 of 14
On-Off
Switch
USB-B
In/Out
th
Position

Advertisement

loading
Need help?

Need help?

Do you have a question about the Effigy Control Pedal and is the answer not in the manual?

Questions and answers

Summary of Contents for Effigy Labs Effigy Control Pedal

  • Page 1 4 Position Position 3/Center Press Mix zones: Sides Here and center can Zone! Zone! work together! Press Press Position 1/Left Position 2/Rt Here Here Backstop Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 1 of 14...
  • Page 2 Mode Pos 1 Pos 2 Pos 3 Pos 4 Pitch  Pitch  Sustain (CC64) Vol(CC11) Pitch  Pitch  MOD (CC1) Vol(CC11) Pitch  Pitch  CC74 Vol(CC11) Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 2 of 14...
  • Page 3 Pos 1 Pos 2 Pos 3 Pos 4 Pitch  Pitch  Sustain (CC64) Vol(CC11) Pitch  Pitch  MOD (CC1) Vol(CC11) Pitch  Pitch  CC74 Vol(CC11) Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 3 of 14...
  • Page 4 • Preset 1 is loaded at start up (can be customized in Control Panel App) • Mode selected by user at startup (can be auto-selected or customized in Control Panel App) Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 4 of 14...
  • Page 5 2. Turn knob to zone 1-6 3. Press the position on the top plate to set the MIDI channel you want Position Knob Zone (still 16) (still 16) Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 5 of 14...
  • Page 6 1. Hold down Mode Switch for 3 seconds and release (light blinks 4x) 2. Knob flips between Position 4 and Sensitivity Control for the other 3 positions Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 6 of 14...
  • Page 7 Reset by adjusting as shown, about ¼ inch above end of bolt 1. Re-tighten if nut loosens 2. Turn pedal off then on after adjusting tension 3. Don’t overtension, finger-tight only Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 7 of 14...
  • Page 8: Troubleshooting Guide

    – Notice the LED flashes red as soon as you hit the mode switch – at moment “zero”, then every second. For example, the light will Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 8 of 14...
  • Page 9 Slower phasing (idle) = lower sensitivity Slower phasing (active) = less pressure Faster phasing (idle) = higher sensitivity Faster phasing (active) = more pressure Red (solid) - in startup – wait Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 9 of 14...
  • Page 10: Additional Information

    Additional Information: External Power: 2.1mm, tip +, 7-16vDC Battery: 9v Customer Support, Web Site, Control Panel app, software and downloads, player communities, and more: EffigyLabs.com Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 10 of 14...
  • Page 11 Simple Keyboard / Synth Setup MIDI Connect to Instrument Directly DAW setup – Any audio source. USB connect to computer. General setup – Any audio source. A MIDI-enabled interface device is used for control. Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 11 of 14...
  • Page 12 1 slot 1 to be CC 59, select CMD to be “0B Control Code” and the SUB to be 59. 3. Changes made will be updated in the pedal in real time of the “Auto” Red button is checked. Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 12 of 14...
  • Page 13: Limited Warranty

    Limited Warranty Effigy Labs LLC ("Effigy") warrants the Effigy Labs Control Pedal (“Product“) against defects in material or workmanship for the time periods and as set forth below. Pursuant to this Limited Warranty, Effigy will, at its option, (1) repair the product using new or refurbished parts or (2) replace the product with a new or refurbished product.
  • Page 14 This Limited Warranty gives you specific legal rights and you may have other rights which vary from state to state or jurisdiction to jurisdiction. © 2018, Effigy Labs LLC Effigy Labs Control Pedal Quick Start Guide v1.2 August-2018 Page 14 of 14...
