Summary of Contents for Images Scientific Instruments Kirlian Photography Device 5

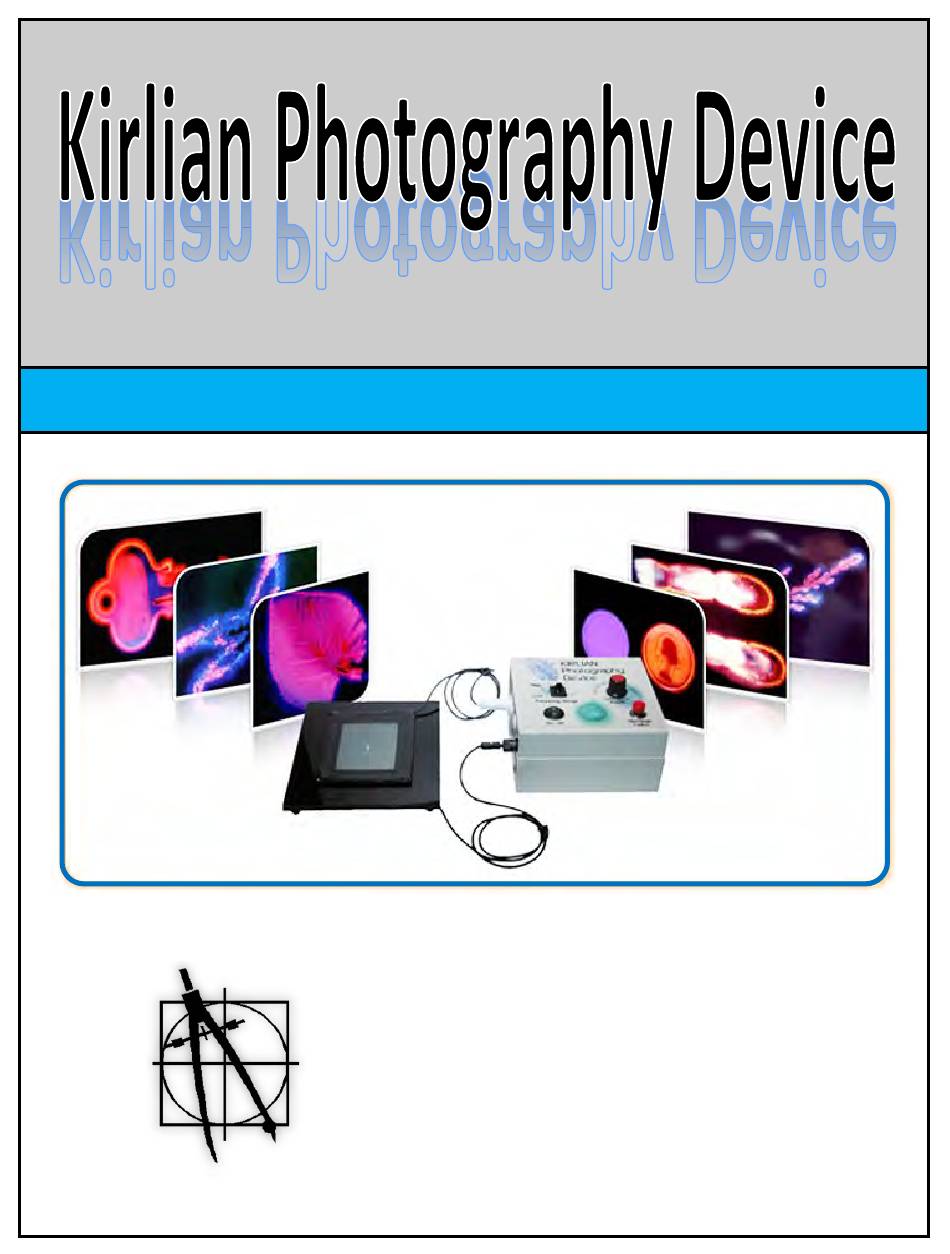

- Page 1 Model 5 - Manual and Instructions Images Scientific Instruments, Inc. 109 Woods of Arden Road Staten Island NY 10312 718-966-3694 Tel 718-966-3695 Fax www.imagesco.com...
- Page 2 Read This First Warning: Kirlian devices are very high voltage contact print photography devices. All high voltage devices are potentially dangerous and must be operated with extreme caution. Do not attempt to operate this device without reading the instructions. Electrical Specifications: Kirlian device requires 117 VAC standard US electrical power. Device draws approximate 7 to 10 watts of power.
- Page 3 Follow these simple guidelines and rules. 1) Do not use the Kirlian device if you have a heart condition, are pregnant, or have any condition or health issue that might render you susceptible to electrical shocks. 2) Set up your work area away from possible grounds that you may accidentally contact.. Keep your work area neat and clean to easily identify high voltage wires and grounds.
- Page 4 WARRANTY IF YOU DO NOT AGREE TO THESE CONDITIONS, YOU SHOULD NOT PURCHASE THE PROD- UCT. IN NO EVENT SHALL IMAGES SI BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSE- QUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
- Page 5 Section 1 Safety Precautions Warranty Contents (You are Here) Section 2 Short History of Kirlian Photography Medical Diagnostic Tool Phantom Leaf Experiment Section 3 Model 5– Instructions For Use High Voltage Power Supply & TDP Ground Plate Photography Set-Up (page 1) Photography Set-Up (page 2) Photographing People Factors Effecting Kirlian Images...
- Page 9 Model 5 The Model 5 shown above, includes the adjustable High Voltage Power supply, Ground Plate (GP) and Transparent Discharge Plate (TDP). High Voltage Power Supply The adjustable High Voltage Power supply is made for Kirlian photography. The frequency and voltage is adjustable.
- Page 10 High Voltage Power Supply The adjustable high voltage power sup- ply has all control and photography functions on the front panel; the main On/Off power switch, momentary con- tact Discharge Switch, Frequency Adjust control and the High-Low Range switch. The On/Off power switch provides main power to the circuit.
- Page 11 Ground Plate (GP) The Ground Plate (GP) makes it easier to ground an in- animate object you want to photography safely and quickly. The black nonconductive plastic of the Ground Plate provides an ideal background to improve the contrast and visibility of the objects corona discharge that you are attempting to photograph.
- Page 12 Typical exposure time using a digital camera is set to 10-20 seconds. Exposure time can be adjusted up or down once you have taken an image. To hold the camera still during the long multi- second exposures one typically uses a copy stand or tripod.
- Page 13 over the gear. Object side of the TDP is placed facing the gear. Put the camera in your Tripod or copy stand. Set the camera’s exposure time to 5 seconds. Position the camera over the TDP (see Figure 3). Ad- just the view through the camera to only show the object under the TDP.
- Page 14 Photographing People When photographing a living subject (human or animals) DO NOT permit the living subject to be grounded or to touch a ground while being pho- tographed. This will increase the HV current flowing through the subject and will cause an unpleasant shock.
- Page 15 A similar technique described for taking stills is also used to record real time Kirlian video through a transparent discharge plate. Ideally the video camera should be capable of close up photography and be able to record video under extreme low light levels.
- Page 16 Digital Kirlian Photography In Digital Kirlian Photography, John Iovine gives you all the hands-on guidance you need to produce Kirlian photographs using digital cameras. You'll also learn how to build your equip- ment, clean digital photos and market your photographs for sale. Book is available on Amazon.Com in both Print and Kindle editions.
