Speed Tech ST-D.O.T. ST-DOT-120 Installation Manual

Opto amplifier

Advertisement

R15 / M15 receivers and T15 Photo transmitter
Up to 15m sensing range
with standard M/R sensors
DIN rail mounting
Terminal block wiring
ST-D.O.T.
ST-DOT-120
Opto Amplifier

Installation guide

For use with:
Relay changeover contact rated
8A/250VAC
Test input for functional test

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-D.O.T. ST-DOT-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speed Tech ST-D.O.T. ST-DOT-120

  • Page 1: Installation Guide

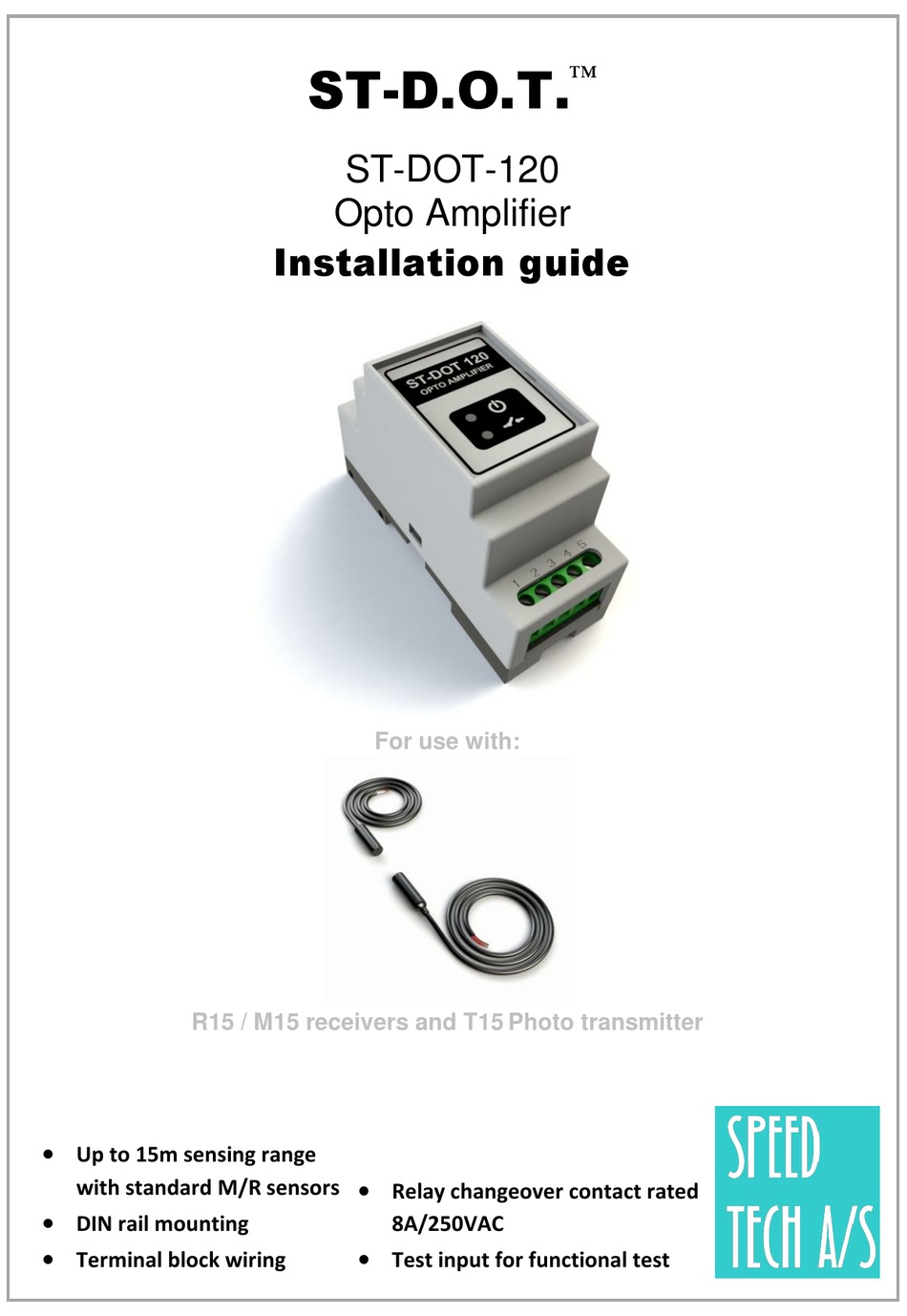

    ST-D.O.T. ™ ST-DOT-120 Opto Amplifier Installation guide For use with: R15 / M15 receivers and T15 Photo transmitter  Up to 15m sensing range  with standard M/R sensors Relay changeover contact rated  DIN rail mounting 8A/250VAC   Terminal block wiring Test input for functional test...
  • Page 2 I N T R O D U C T I O N A N D W I R I N G Introduction: ST-DOT-120 is an opto-electronic amplifier module for DIN-rail mounting for use with DOT transmitters and receivers. It is a single channel amplifier with relay output made for a variety of supply voltages.
  • Page 3 A L I G N M E N T A N D I N S T A L L A T I O N Alignment of photocells During installation make sure that the transmitter and receiver are horizontally aligned as illustrated below. The photocells can work with a slight offset (depending on the distance in-between) but this is not recommended as the sensitivity is affected.
  • Page 4: Troubleshooting

    T E C H N I C A L D A T A Troubleshooting:  In case the photocells does not work as intended during day check if the receiver is exposed to direct sunlight. If this is the case try swapping the transceiver and receiver. Mechanical dimensions: Technical data: Supply Voltages, - see order no below.
