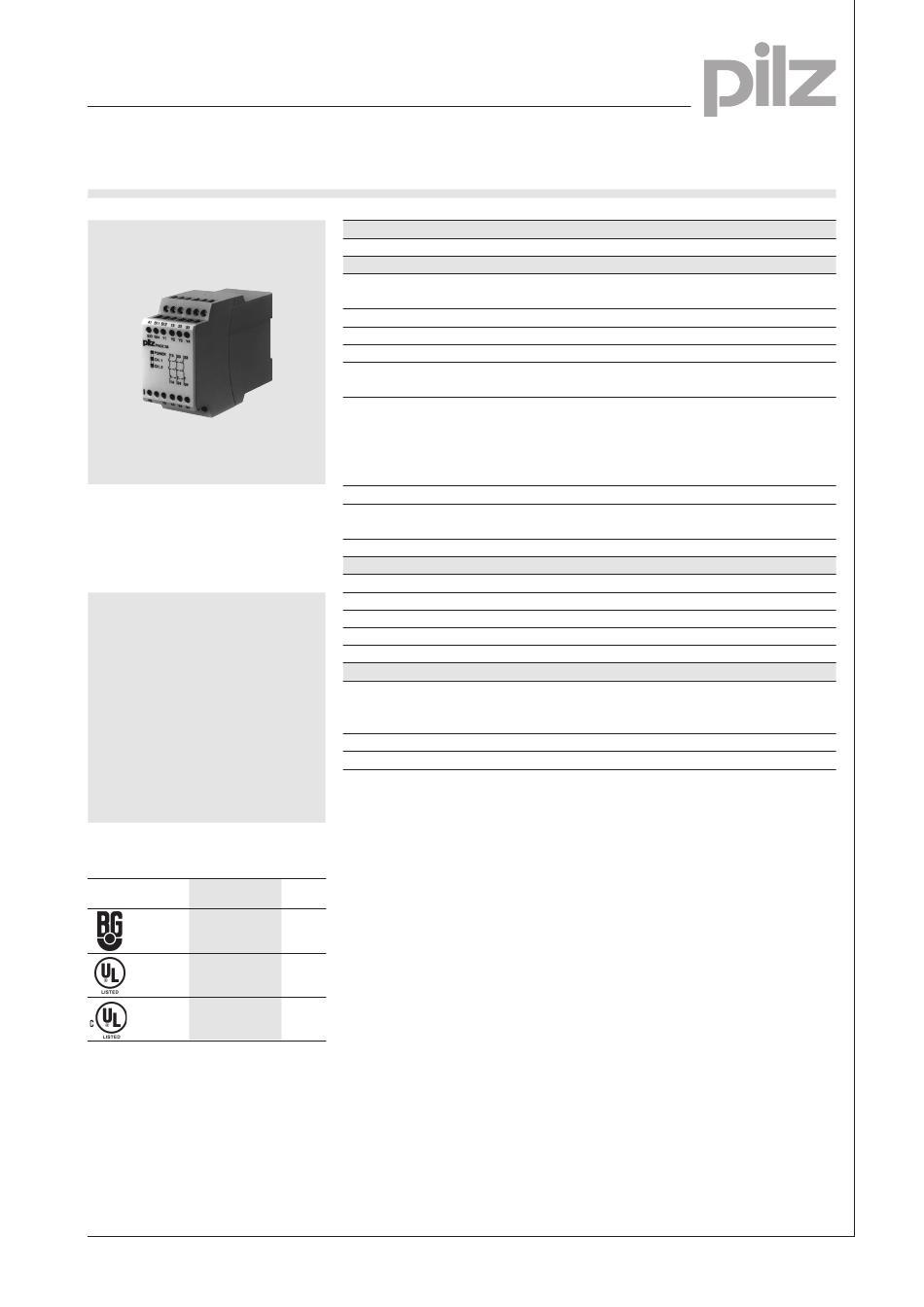

Emergency Stop Relays, Safety Gate Monitors
Category 3, EN 954-1

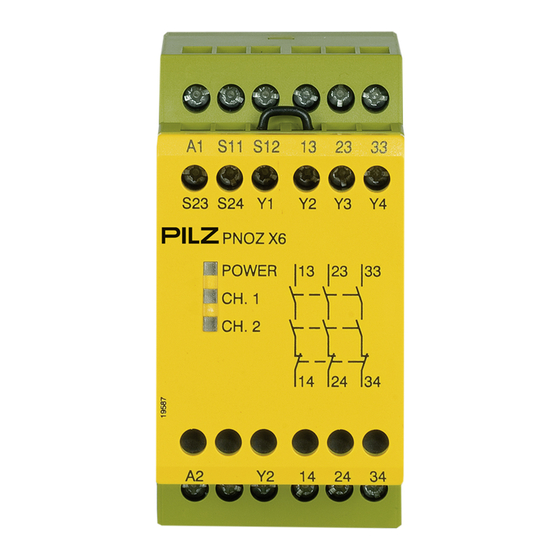

PNOZ X6
Safety gate monitor and emergency
stop relay in accordance with
VDE 0113 part 1, 11/98, EN 60204-1,
12/97 and IEC 204-1, 11/98
Features
G PST 3 compatible
G Single-channel or dual-channel
which detects shorts across the
inputs
G Designed for driving via semi-
conductors
G Automatic or monitored manual
reset
G Simultaneity monitoring can be
switched-on or off
Approvals
PNOZ X6
G
G
G
Pilz GmbH & Co., Felix-Wankel-Straße 2, 73760 Ostfildern, Deutschland
Telefon +49 (7 11) 34 09-0, Telefax +49 (7 11) 34 09-1 33, E-Mail: pilz.gmbh@pilz.de
Technical Data
Electrical Data
Supply Voltage
Tolerance
Residual Ripple DC
Power Consumption
Voltage and Current at input circuit and
feedback control loop
Switching Capability in accordance with
EN 60947-4-1, 10/91
EN 60947-5-1, 10/91
(DC13: 60 cycles/min)
Output Contacts
Contact Fuse Protection
to EN 60947-5-1, 10/91
Max. permitted Switch-on Current
Times
Response Delay
Delay-on De-energisation
Recover Time
Simultaneity channel 1/2
Max. Supply Interrupt before De-energisation10 ms
Mechanical Data
Max. cross section of
external conductors
Dimensions (H x W x D)
Weight
Description
G 45 mm P-97-housing, DIN-Rail
mounting
G Relay outputs, positive-guided:
– 3 (N/O) safety contacts
G Connections:
– e-stop button
– safety gate limit switch
– reset button
G LED indicators: channel 1/2 and
supply voltage
G Increase in the number of
contacts available by connecting
external contactors / relays
Operating Modes
G Single-channel
G Dual-channel
G Automatic reset
G Manual reset
G Monitored manual reset
PNOZ X6
AC: 42, 100, 110 ... 120, 200, 230 ... 240 V
AC/DC: 24 V
85 ... 110 %
Max. 120 %
Approx. 1,5 W/5,0 VA
24 VDC, 50 mA
AC1: 240 V/8 A/2000 VA
400 V/5 A/2000 VA
DC1: 24 V/8 A/200 W
AC15: 230 V/5 A
DC13: 24 V/7 A
3 N/O safety contacts
10 A quick or 6 A slow
10 A
Approx. 300 ms
Approx. 50 ms
Approx. 200 ms
Approx. 200 ms or ¥
2 x 2.5 mm 2
Single-core or multi-core with crimp
connectors
87 x 45 x 121 mm
AC: 400 g, DC: 300 g
NSG-D-2-047-07/00
