Thank you for purchasing your

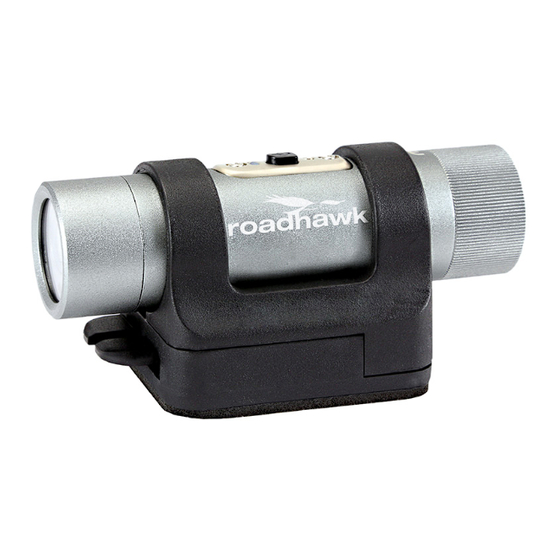

RoadHawk Bullet Camera
These instructions cover the following cameras:
dogcam Bullet HD2
dogcam Bullet R+
RoadHawk Ride Bullet R+
RoadHawk Bullet R+ Moto Edition
RoadHawk Ride R+ Cycle Edition
These cameras represent a revolution in high definition bullet cameras.
Not only are they smallest and lightest full HD 1080p bullet cameras on the
market, they are the only camera systems to offer software configuration to
produce the highest quality video and audio no matter the operating conditions.
Track tested and developed in association with Formula One engineers,
these cameras are the perfect helmet and motorsport camera and have
been proven to withstand extreme vibration and temperature environments.
User Guide: Charging
Your Bullet camera has a built-in 660maH li-poly battery for a recording duration of between 60 mins and 1.5 hours depending on
the operating environment and temperature.
The battery is rated for over 1000 charge cycles. The Li-Poly battery does not suffer from battery memory effect and it is therefore
not essential for the battery to be completely flat before charging.
Over the lifetime of the battery some degradation is expected. We recommend to occasionally run the battery completely flat as
this helps the battery to maintain its condition. Charge your camera on a regular basis and avoid leaving it uncharged for long periods.
To charge the internal battery, connect to any USB power source. When you plug the camera into a USB supply, the LED on the rear
of the camera will turn RED to indicate charging. Once the camera is fully charged the LED will go out. (The charging LED is located
next to the USB port at the rear of the camera).
It is advisable not to leave the charging camera unattended for any amount of time. We recommend charging the camera in an area
that cannot be damaged should a fire take place.'
RoadHawk, c/o Trakm8
Unit 9B, Callywith Gate Ind Est,
Bodmin, PL31 2RQ
Tel. 01208 269 159
Web. www.roadhawk.co.uk
135° wide
1080P
Angle
Brand
Water Proof
up to 10m
Alert
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Trakm8 dogcam Bullet HD2
- Page 1 Thank you for purchasing your RoadHawk Bullet Camera Brand These instructions cover the following cameras: dogcam Bullet HD2 dogcam Bullet R+ RoadHawk Ride Bullet R+ RoadHawk Bullet R+ Moto Edition RoadHawk Ride R+ Cycle Edition These cameras represent a revolution in high definition bullet cameras.
- Page 2 Click on the ERASE tab. Make sure the drop down box says MS-DOS (FAT). Click ERASE. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel. 01208 269 159 Bodmin, PL31 2RQ Web. www.roadhawk.co.uk...
- Page 3 If the battery is flat or there is no available space on the SD card or if the SD card is not inserted then the camera will turn on briefly and turn off again. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel.
- Page 4 Press and hold the power button for 2 seconds. The camera will vibrate twice and then shut down. (CAUTION: THE LASER WILL ALSO FLASH MULTIPLE TIMES WHEN SHUTTING DOWN). RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel. 01208 269 159 Bodmin, PL31 2RQ Web.
- Page 5 “open with VLC” if you have it video and select “open with VLC” if you have it installed. installed. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel. 01208 269 159 Bodmin, PL31 2RQ...
- Page 6 Alternatively, click Set as System Time to apply the time and date as set by your computer. As soon as you have done this, a Settime.txt file is written to the SD card of the camera. Unplug the camera and turn it on to apply. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel.
- Page 7 When connecting the remote receiver to the camera, ensure it is fully tightened so that the camera will still be waterproof. If the remote receiver is not all the way in then it may fail to operate correctly. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel.
- Page 8 3 wires to the control unit, Red (Live), Black (Negative), Blue (Switched Live). We recommend you have the hardwire kit fitted by a Qualified Motorcycle electrician. The other end has the USB socket specific to the camera. If fitting yourself, please refer to your make of motorcycles workshop manual. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel. 01208 269 159 Bodmin, PL31 2RQ Web.
- Page 9 The laser function can be disabled in the configuration software. If you are using the camera in or on a vehicle on a public road then you should disable the laser. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel.
- Page 10 Ensure your anti-virus software is up to date and scan your computer for malware. Install VLC for FREE from www.videolan.org and use it to play your video files. RoadHawk, c/o Trakm8 Unit 9B, Callywith Gate Ind Est, Tel. 01208 269 159 Bodmin, PL31 2RQ Web.
