CG100 Programmer III

Users manual

Hardware type：

CG100-III

BDM+4

Reading carefully before working on.

Table of Contents

Need help?

Do you have a question about the CG100-III and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen Chang Guang technology CG100-III

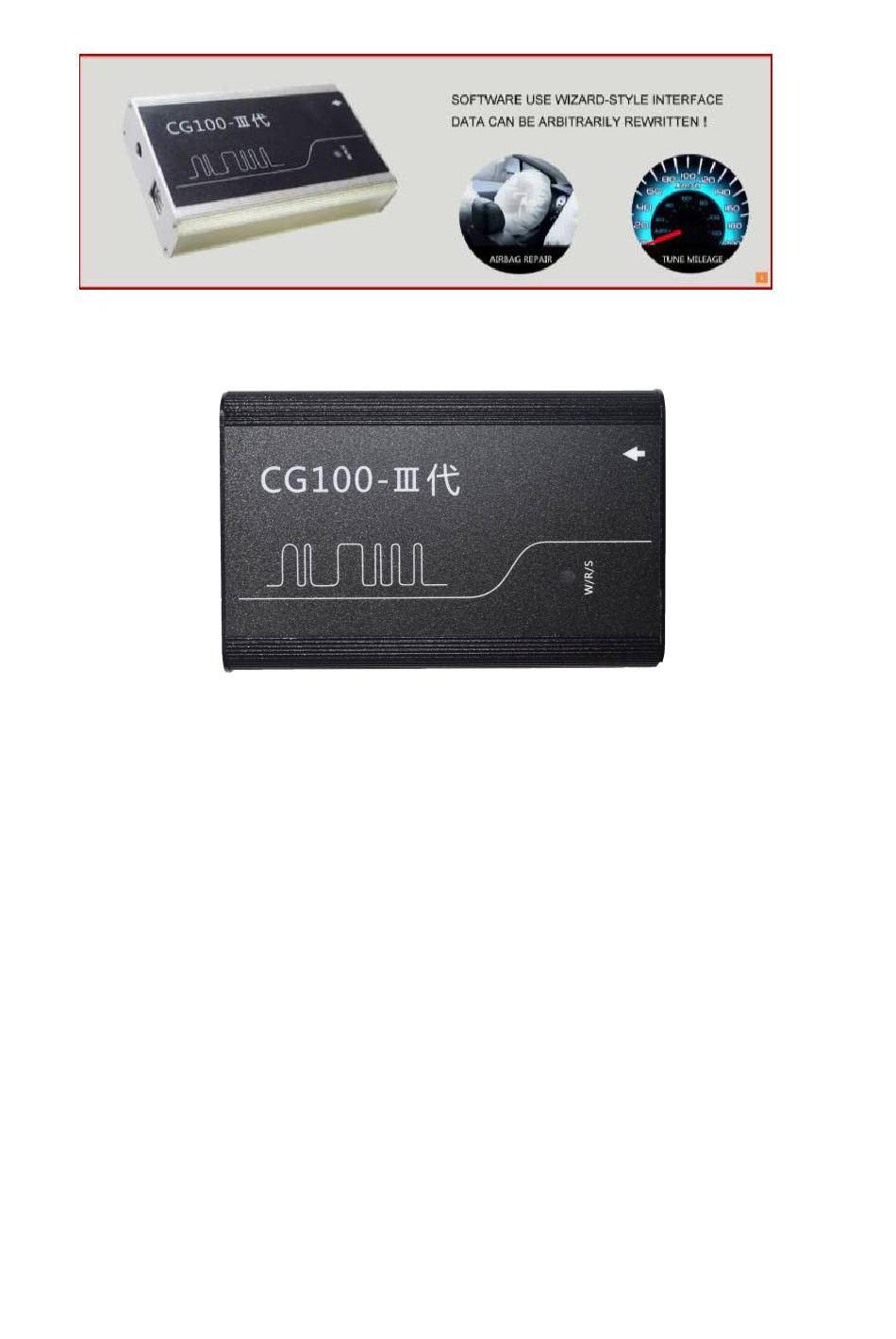

Page 1 CG100 Programmer III Users manual Hardware type： CG100-III BDM+4 Reading carefully before working on.
Page 2: Table Of Contents
Catalogue CG100 useser manual------------------------------------------------4 Hardware equipment introduction------------------------------5 USB wiring、12V Adaptor、12P wiring------------------------5 Main board-----------------------------------------------------------6 BDM+4 Adaptor--------------------------------------------------7 CANA Adaptor--------------------------------------------------8 KEYA Adaptor---------------------------------------------------8 ATMEGA Adaptor board------------------------------------------9 ATMEGA Adaptor-------------------------------------------------10 Softerware drive diagram--------------------------------------------12 basic version and full version---------------------20 Difference between IIII. Function and operatin instance explain--------------------------22 9S adjust table---------------------------------------------------22 ATMEL adjust table---------------------------------------------29 airbag repair-------------------------------------------------------36...
Page 3: Cg100 Useser Manual
10)MB91 adjust table-------------------------------------------------79 11)M35080-----------------------------------------------------------87 12)Anise chip---------------------------------------------------------92 IIV. attention--------------------------------------------------------104 IIIV.manufacturer------------------------------------------------------105 CG100 User manual Dear all valuable customer,Before using our products, its very pleased to appreciate to your support and trust on our products. next ,we’d like to explain the function and using of CG100 for you. and then it could be helping you to solve any question when you re Hardware working on .

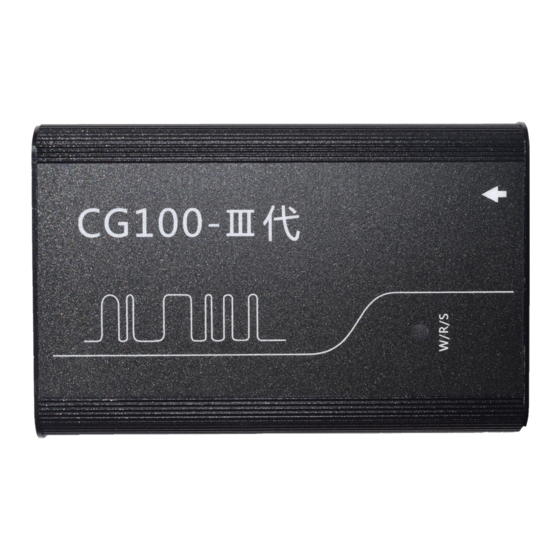

Page 4: Hardware Equipment Introduction
The main machine of CG100 also divided two basic function version and full function BMW parts version,what difference is one with ‘ECU repair’ and another without. its essential function of connecting between them which not replaced .one side in the main machine to connect USB line and power supply , Other side ,connecting BDM adapter, the data readed out from BDM adapter can be converting ,displaying on the...
Page 5 Its very essential not be replaced 12V adpator and USB wiring can be working normally when connect the computer software driver and electrify, But you should be more attention to check the Interface if is loose or not after you working on it in long time；12P Welding line is consists of 12 piece line,and Each line has a corresponding number connecting BDM adapter and debug computer.You need to weld according to the...
Page 6: Main Board
appear as can't find the error of the chip 2． Main board The main machine of CG100 also divided two parts basic function version and full function BMW version,what difference is one volkswagen, BMW, Bentley with ‘ECU repair’ and another without. its essential function of connecting between them which not replaced .one side in the main machine to connect USB line and power supply ,...
Page 7: Bdm+4 Adaptor
and save 3．BDM+4 Adaptor As you known,it’s very popular for BDM+4 adapter in the mainstream market.divided BDM+3 and BDM+4 function same ,but version difference.the version of BDM+4 is advanced than BDM+3, which its will be much more convenient between the speed of reading and accuracy of writing the data.It also support much of the model of car and CPU.
Page 8 4．CAN Adapter CAN board.It only can be used when you open the” ECU repair ” or full function version,the function and user method is the same as the BDM adapter and ATMEGA board. the three almost same.bu t, its not completely different between the chip and places of Appli cation .better to refer to equipment detailed parameters, in case of mistake abnormally .
Page 9: Atmega Adaptor Board
KEY adapter support all kinds of cars key to be matched for users with full version of CG100 ， providing freely KEY adaptor，which can be match CAS3 CAS3+ CAS4 CAS4+ calculate ISN code，analysi CAS data right or 6.ATMEGA Adaptor board ATMEGA board mainly use to the chip instrument of ATMEGA，it s same function and using method as BDM adapter.
Page 10: Atmega Adaptor
chip to test before using, In case of original data damaged . 7.ATMEGA adapter ATMEGA Adapter function 35080:M35080DQ080.M35080DQ160.M35080.3/6.M35080 V6/VP(5seconds to finish era and directly tune number of kilometers） ATMEGA parallel: MEGA8L.MEGA48.MEGA88.MEGA16.MEGA32.MEGA169( Can finish erase ATMEGA8L used in second time) 24 series： 24C01 24C01A 24C01B 24C02 24C02B 24C04 24C08 24C16 24C32 24C64 24C128 24C256 24LC01A 24LC02 24LC04...
Page 11 25 series： 25010 25020 25040 25080 25160 25320 25640 25128 25256 93 series: 93A86 93C46 93C56 93C57 93C66 93C76 93C86 93CS56 93CS66 93LC46 93LC56 93LC66 93LC76 93LC86 93S56 95 series： 95010 95020 95040 95080 95160 95320 95640 95128 95256 X series： X5043 Parallel FLASH: AMD:AM29BL802D(can remove...
Page 12 2．Information showed 3．CG100-III...
Page 13 4．MB91 adjust table...
Page 14 5．M35080 6．Anise chip...
Page 16 7.BMW CAS1&CAS2 8.BMW CAS3...
Page 17 9.BMW CAS4...
Page 18: Iiii
10.Land rover key IIII. distinction between basic version and full version 1.distinction function:“V.W、BMW、Bentley of ECU repair”and “BMWCAS1&2、BMW CAS3、BMW CAS4、Land rover key of CG100 starter” 2.software showed： Standard version ：...
Page 19 Full version ：...
Page 20 Note：if u bought basic version before，then want to upgrade into full version later.its OK .it will be provided hardware testing in advance .pls contact directly with technical support from manufacturer .
Page 21: Adjust Table
Explain Function and operation for example （actual photos showed ,car parts already connected and glued） 1.9S adjust table For example：changan star 9S08LG16 Enter the corresponding model options, according to the software wiring diagram for wiring, if the physical and software provided by the wiring diagram are different, you can also follow the chip pin diagram of the meter...
Page 22 wiring, pay attention to the number of pins to be consistent.
Page 24 After connect line， check carefully， can connect power to operate after confirm without any mistake Software read out idiomatically mileage data，It show “save”。...
Page 25 Save original data, software will automatically analyze the mileage data. If analysis， can adjust； If wrong ， pls kindly send original data to manufacture to modify.
Page 27 Mileage has been adjusted, you can confirm the loading. Note:when devices working normally,cannt move swing,in be burned。 case ,data lost and chip short circuit to...
Page 28: Atmel Adjust Table
As long as the instrument is 9S at the beginning of the chip, you can adjust, if the software does not support or no physical wiring diagram, you can request manufacturers to help adjust the technology. 2.ATMEL adjust table For example：Jianghuai 94007-V3701 ATMEGA32 Before the meter to find the corresponding meter table number option, if not, please first consult the...
Page 29 manufacturers of technology; if there is a relative table number, please put on the spare chip, save the original car chip to prevent the vehicle parameters are different The According to the software wiring diagram for wiring, if the physical and software provided by the access, you can also follow the chip pin diagram of the meter wiring, attention number...
Page 32 After the line, carefully check, confirm correct, can power operation. ATMEGA chip because the factory are encrypted, so the data can not read, can only be directly adjusted, that is, relative to the table number and for the replacement chip and its important, please note that the user.
Page 34 Adjust the table successfully, you can load to verify. Note ： when devices working normally ,cannt move swing，in case ,data lost and chip short circuit to be burned.If it is a plug-in chip, it is necessary to use...
Page 35 ATMEGA adapter for mileage adjustment, methods and examples of similar. If the software does not have to adjust the model number, you can send the instrument to the...
Page 36: Airbag Repair
manufacturer, free of unlock, do not charge any fees. 3.airbag repair For example：Toyota 89170-0E080 R5F61725 Enter the relative model options, find the corresponding airbag number, if not, you can consult the manufacturers of technology; if so, you can follow the wiring diagram of the software wiring, if the physical and software to provide the wiring diagram are different, can also follow...
Page 37 the chip pin diagram Carry the scale wiring, pay attention number pins consistent.
Page 39 After the line, carefully check, confirm correct, can power operation. Because the airbag chip for the F5F6 series, the software does not provided reading, but can be directly repaired, so pay attention to the airbag number before...
Page 40 repairing.
Page 41 Airbag repair success, you can reset the load validation. Note:when devices working normally,cannt move swing，in case ,data lost and chip short circuit to be burned. In addition to R5F6 at the beginning of the Rosa chip type airbag can not read the data directly repair, the other chip can read and write data, but also in accordance with the corresponding airbag number, if not, you can send the original car data to...
Page 42: Ecu Repair
any fees while the airbag sent to the manufacturers to repair in the same day, 4．ECU Repair Example：MT80 9025068 Enter the corresponding option, find the number, compare the details of the computer to be repaired, find the wiring diagram for...
Page 43 wiring.
Page 45 After finishing the line, carefully check, confirm correct, can power operation, click on "FLASH read" and according to prompt save original data.
Page 47 Save original data，click“FLASH repair”...
Page 49 Repair is complete and can be checked. Note:when devices working normally ， cannt move swing，in case ,data lost and chip short circuit to be burned。If the "MT80" and "MT60" options do not...
Page 50: Body Computer
find the number to be repaired, you can read original data from below type ， and save well， write into “OK data”。 If devices is full version,can read and write, Volkswagen、BMW、Bentley's ECU-related data, but to take a more "BOOT" wiring. 5.Body computer For example：General Hideo D70F3469...
Page 51 Enter the relative model options, find the corresponding BCM number, if not, you can consult the manufacturers of technology; if so, you can follow the wiring diagram of the software wiring, if the physical and software provided by the wiring diagram are different, can also follow the chip pin Carry the scale wiring, pay attention to the number of pins to be consistent.
Page 54 After finishing the line, carefully check, confirm correct, can power operation, click "read" and save the original...
Page 55 data.
Page 56 If have OK data，also can write into。 After Open “OK data，click “write into”。...
Page 58 Write succeed，loading verification Note:when devices working normally ， cannt move swing，in case ,data lost and chip short circuit to be burned。 Chip model 9S general models of the body computer, you can support mileage adjustment, calculate the password; other models of the chip can read and write data.
Page 59 7.The universal programmer contains all the chip types supported by the device and software, and can be used to read and write data. That is, "universal programmer this option." Car amplifier Example：Audi ST10F272 Enter the relative model options, find the corresponding number, if not, you can consult the manufacturers of technology;...
Page 62 After finishing the line, carefully check, confirm correct, can power operation,click on"read".
Page 63 Reading succeed，click“save”original data.
Page 64 If have “OK”data，then,can repair，click“open”OK”data and “write into”。...
Page 66 Reading succeed,can load in the car and test.Note:when devices working normally,cannt move swing,in case ,data lost and chip short circuit to be burned. ， and repair car parts in amplifier can read and write data abnormally。 8.System setup：...
Page 67 Basic version Full version：...
Page 68: Other Function
8.Other function...
Page 69 Example:Mez smart computer D70F3372 Enter the relative model options, find the corresponding...
Page 70 number， If there is no, you can consult the manufacturers of technology; if there is, in accordance with the software wiring diagram for wiring, if the physical and software provided by the access, you can also follow the chip pin diagram of the meter wiring, pay attention to the number of pins to be consistent.
Page 72 After connect wire,check carefully ,only confirm can connected with power to operate.click“reading”。...
Page 73 Reading succeed，click”save original data. Saved original data ,If have “OK” data ， can repair ， click“open”OK”data and write into.
Page 75 Witting succeed，can load in the car and test. Note:when devices working normally,cannt move swing,in case ,data lost and chip short circuit to be burned Other this function can read and write data, repair the device is not normal. 10.MB91 instrument Example：Honda, Fit advanced MB91F061S...
Page 76 Entering the corresponding car model option and find the corresponding number,if dont have,pls consult manufacturer technology,if have，can be wired according to the software wiring diagram,if the physical and software provided by access, you can also follow the chip pin diagram of the meter wiring,pls pay attention to the number of pins to be consistent.
Page 78 After connecting line，check carefully，only confirmed can be connected power to operate.
Page 80 Reading succeed，save original data. The software can analyze automatically the mileage data ， if analysis right ， can adjust directly ； if not correct,pls contact technology of manufacturer firstly 。 If Analysis correct ， to put the mileage what u want to adjust，click“write mileage data”。...
Page 82 Mileage data finished writing,software provide instruments testing function， click“turn on power”， check if correct or not. If right，click“close power”，Rehabilitation instrument. Load into car to test.
Page 83 Note：when devices working normally，pls dont move randomly to connect line，in case,data lose and chip short circuit to be burned. The model type much more,The algorithm will be more wide-wild,pls be waiting for with attention. 11.M35080...
Page 84 Enter the corresponding car model option to find the corresponding number ，if dont have ,pls contact with manufacturer；if have，can remove chip directly and put into ATMEGA adapter Equipped with anise chip on the seat to read and write.
Page 85 chips well,select model type,click”read write”,then save original data . Reference car model select algorithm to modified mileage after saved,if right,then can repair directly,If not，pls kindly contact technical support from manufacturer on time. Mileage repair finished,can load in the car to test. Note：when devices working normally ，cannt move swing，in case ,data lost and chip short circuit to be burned。...
Page 86 Can enter into corresponding car model select to find corresponding series number，If don't have ,pls contact technical support from manufacturer；If have，can remove chip directly to put into ATMEGA adapter Anise chips on the seat ,then reading and witting .
Page 87 Enter into corresponding card model select ， link”read and write”。 Read succuessfully,save original data first. Software can analysis mileage data after Saved,If right，...
Page 88 can repair directly；if wrong,pls kindly contact technical support from manufacturer. If analy right,click“modified mileage”，put into mileage that u want to adjust,click“write into chip”。 Software can analysis mileage data after Saved,If right， can repair directly；if wrong,pls kindly contact technical support from manufacturer. Adjust the success of chips can be welded back ，...
Page 89 Enter the relative model options and find the corresponding number ， if dont have ， can consult technology of manufacturer :if have ， can remove chip directly and put into anise chips of ATMEGA adapter， then ,can read and write。...
Page 90 After entering the corresponding model，click”reading”。 Read successful，pls save original car data。 Save succeed， software showed two way of repairing， its ok which ever u select. select”data covered” Airbag repair succeed，can load in the car and test. Note:when devices working normally ， cannt move swing，in case ,data lost and chip short circuit to be burned.
Page 91 Be attention If your software is old version,you need to completely clearly unload the old one and turn off all related anti-virus software,before install the new one. Otherwise it will install failed. Software models must correspond adapter type,“CG100-Ⅲ”and“MB91F061S”“MB91table”“M35080”Ani se-chip”BMWCAS1&CAS2”.”BMWCAS3”.”BMWCAS4”and “Land rover key”The few interface can't be used at the same time,it will influence each other,pls be more attention.
Page 92 manufacturer information SHENZHENEQ Official website： WWW.CGPROGCAR.COM Technical support QQ:800163968 Technical support Tel： 0755-/6660704/15112563501...
