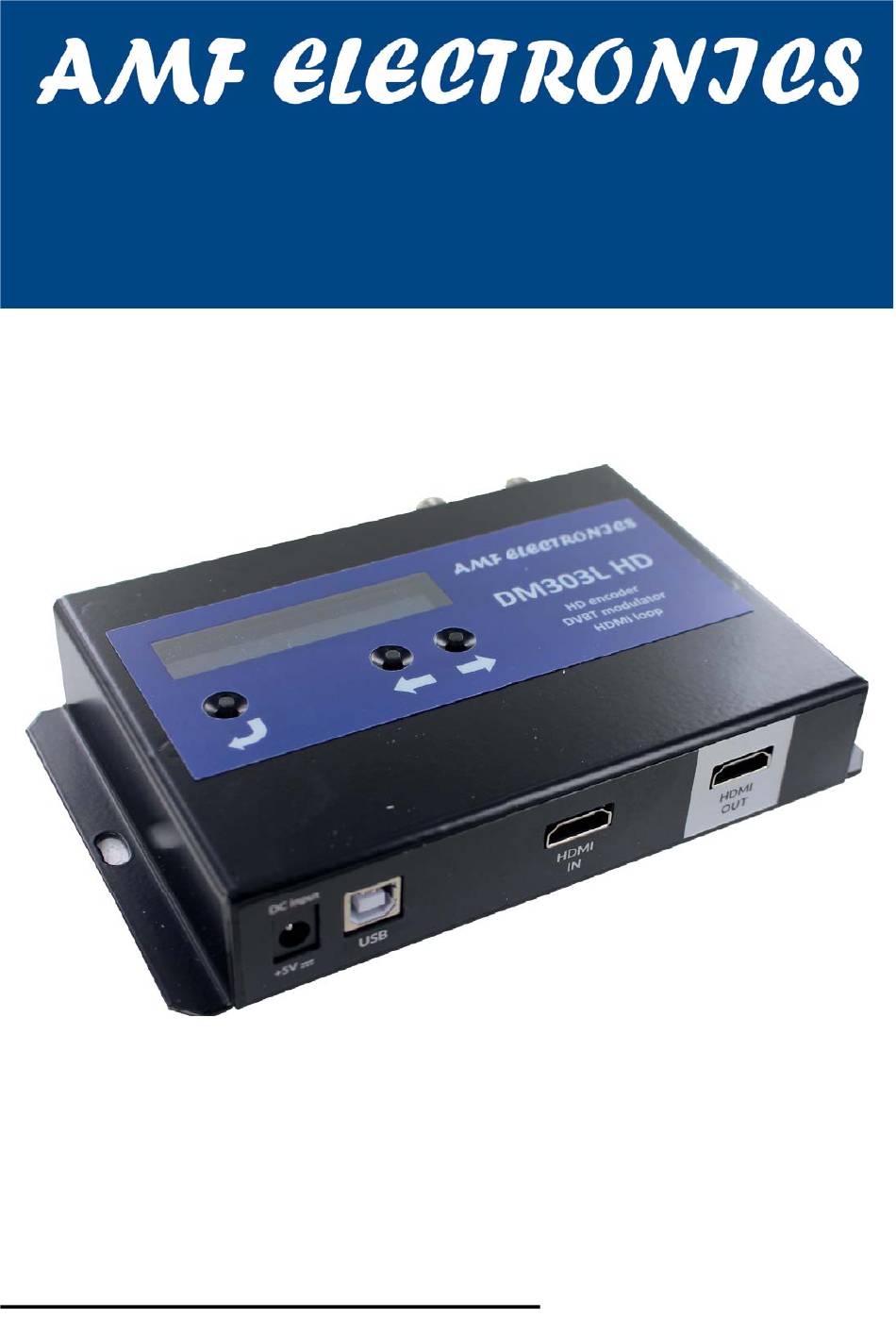

  • Page 1 DM303L HD HD encoder - DVBT modulator HDMI loop USER MANUAL VERSION 1.0...

  • Page 2: Table Of Contents

    DVB-T signal. Stand-alone confi guration is made easy through 3 tact switches and ergonomic menu’s. To make the confi guration of the DM303L HD ultra simple, a special software TMHDIface is available that you can download on our website.

  • Page 3: Safety Considerations

    DM303L HD USER MANUAL 1 - Safety considerations 1.1 CONNECTING TO THE MAINS SUPPLY This product has to be connected to the mains supply. If there is the slightest doubt concerning the type of connection available on the installation, please contact your supplier of electricity. Before car- rying out maintenance operation or modifi...

  • Page 4: Description Of The Different Elements

    DM303L HD USER MANUAL 2 - Description of the different elements Power supply input (5V/2A) RF output USB input (PC programming) HDMI input RF input HDMI output Display ENTER button LEFT button RIGHT button AMF ELECTRONICS©2018 PAGE 4...

  • Page 5: Software Settings

    DM303L HD USER MANUAL 3 - Software settings : The DM303L HD has a quick menu to allow for quick basic settings. For advanced settings an advanced menu is available. 3.1 - Quick menu : To enter the quick menu please push following sequence of buttons...

  • Page 6: Advanced Menu

    DM303L HD USER MANUAL 3.2 - Advanced menu To enter the advanced menu please push following sequence of buttons DM303L HD 20.0 DM303L HD 20.0 DM303L HD 20.0 Set the output frequency DVB SETTINGS FREQUENCY 474000 KHz DM303L HD 20.0 DM303L HD 20.0...
  • Page 7 DM303L HD USER MANUAL DM303L HD 20.0 DM303L HD 20.0 DM303L HD 20.0 Set the NIT version NIT RELEASE TS SETTINGS DM303L HD 20.0 DM303L HD 20.0 Set the Network ID NET ID. 10000 DM303L HD 20.0 DM303L HD 20.0...

  • Page 8: Programming Using A Pc

    First, please install the software TMHDIFace on your PC. You can download this software from our internet site https://www.amfelectronics.gr After installation of this software, connect the DM303L HD using a USB cable (not included) to your personal computer. Then launch the program TMHDIface.
