Summary of Contents for exemys RMS2-AI

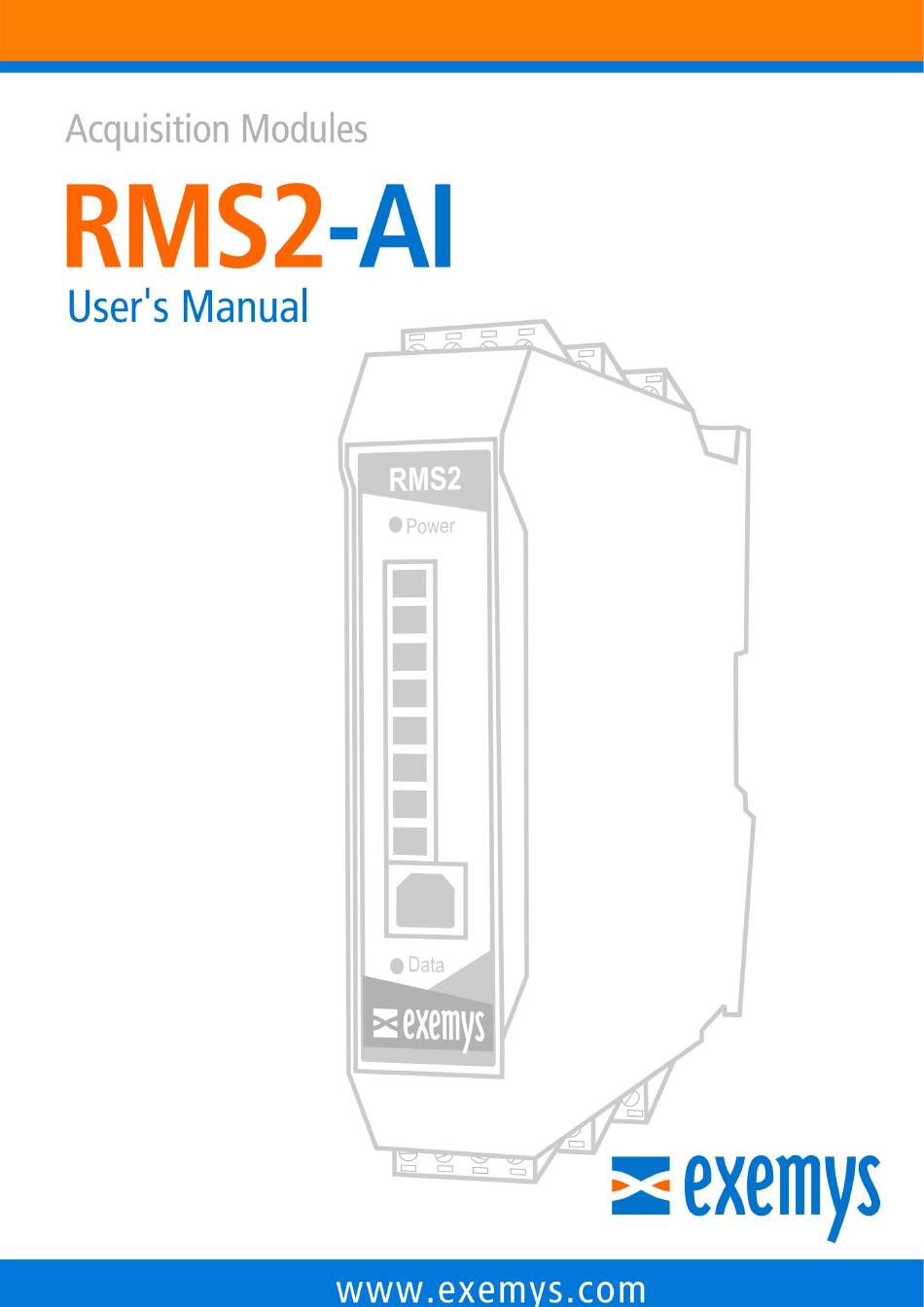

- Page 1 RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys www.exemys.com Rev. 2...
- Page 2 RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys Exemys products are constantly evolving to meet the needs of our customers. For this reason, the specifications and capabilities are subject to change without notice. Find updates at www.exemys.com Copyright © Exemys, 2007. All rights reserved.
-
Page 3: Table Of Contents
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys INDEX 1 1 1 1 INTRODUCTION INTRODUCTION ________________________________ _____________________________________________________ _____________________ 4 4 4 4 INTRODUCTION INTRODUCTION ________________________________ ________________________________ _____________________ _____________________ P P P P urpose of the manual urpose of the manual... -
Page 4: Introduction Introduction
This manual provides instructions for easy and quick installation and operation of the RMS2-AI-IA3 analog module. The manual starts with a general description of the product, and then provides instructions for the correct hardware installation. Configuration and operation of the device is detailed below. -
Page 5: Technical Specifications Technical Specifications
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 1.3 Order Order numbers numbers Order Order numbers numbers Product order numbers are the following: Code number Description (1)serial port RS-232 / RS-485 optoisolated RMS2-AI-110-00-80-IA3-MB (8) 4-20 mA / 0-10V Inputs 1.4 Technical Specifications... -
Page 6: Power Input Connection Power Input Connection
Connection Connection Connection RMS2-AI-IA3 allows a power input from +10 to 30 V . Positive power supply must be connected to the terminal N° 1 and negative power supply to terminal N° 2 as can be shown in the following figure: 2.2 Connections and terminals... -
Page 7: Analog Inputs Wiring
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 2.2.1 2.2.1 Analog inputs wiring Analog inputs wiring 2.2.1 2.2.1 Analog inputs Analog inputs wiring wiring 2.2.1.1 2.2.1.1 Voltage 2.2.1.1 2.2.1.1 Voltage Voltage input Voltage input input input wiring wiring wiring... -
Page 8: Rs232 Serial Port Wiring
To connect the device RS232 serial port to PC serial port or any other serial device, it must be connected as can be shown in the following figure. You should consider RMS2-AI-IA3 is a DTE device, which means it must cross wire with those of the PC. - Page 9 RMS2-AI-IA3 configuration is done through a command console connecting the device to a USB port on the PC. To access the command console, you must connect the RMS2-AI-IA3 to a USB port on a PC Exemys Console. and you must install an Exemys serial terminal program, named Download the USB driver: http://www.exemys.com/rmsrmdriver...
-
Page 10: Serial Port Configuration Serial Port Configuration
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 3. Type the menu or submenu number to which you want to access and edit its parameters with the proposed values. 3.1 Serial port configuration Option Description Setting the BaudRate. 1->1 Values: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200. -
Page 11: Inputs Configuration Inputs Configuration
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 3.2 Inputs Configuration Option Description Setting the analog input type 1->1...8->1 Values: Voltage 0-10 V, Current Loop 4-20 mA. Input Type Example: (4-20mA| 0-10V) 2->1->1->2 (Inputs->Input Nº1->Input Type ->0-10V) Setting the number of samples that are taken to make an average of readings. This is the value shown when the input is monitored. -
Page 12: Advanced Configuration Advanced Configuration
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 3.3 Advanced Configuration Option Description Setting the internal Modbus Slave ID to access to the data transfer memory 1->1 Values: 1…254. Modbus Slave ID (1…254) Example: 3->1->50(Advanced->Modbus Slave ID->50) Enables/Disables the text monitor option 3->2... -
Page 13: Other Configuration Items Other Configuration Items
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 3.4 Other Configuration Items Option Description Listing the current device configuration. Show Configuration Showing the current device measurements, represented in 3 different types of values, detailed below: Analog Value Analog Value... -
Page 14: Modbus Registers Modbus Registers
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys 4 Modbus Communication 4.1 Modbus Registers Each input has a register in the Modbus Holding Registers area. In this way, once the communication is established, the data is transferred transparently from the analog inputs to the corresponding Modbus address. -
Page 15: Factory Settings
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys A.Factory Settings Parameters Value Serial Port Serial Port Serial Port Serial Port A A A A Baud Rate. 9600 bps Data Bits Parity. Stop Bits Modbus Mode. Modbus RTU INPUTS INPUTS... -
Page 16: Din Rail Mounting
RMS2-AI-IA3 Analog Variables Acquisition Module – User’s Manual Exemys DIN Rail Mounting Device can be mounted on a DIN rail. To assembly the module to the rail, make the upper side of the device fit the DIN rail and then push gently until you hear a Click! As shown in the figure.
