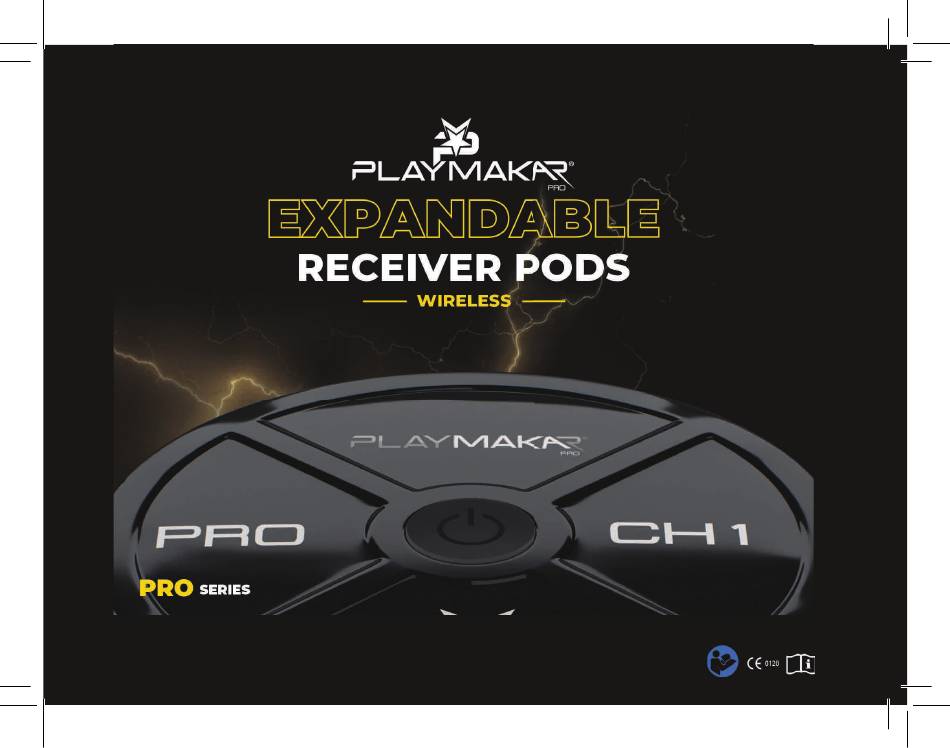

Page 1 Model # PRO-1001 Instruction Manual...
Page 2: Indications
Indications for Use The PlayMakar® Expandable Wireless Pods is for active treatment as per the intended use: • For use by healthy adults for the stimulation of healthy muscles to improve or facilitate muscle performance.
Page 3: Table Of Contents
COMMUNICATION BETWEEN REMOTE AND RECEIVER POD(S)........................ 16 ELECTRODE PAD PLACEMENTS..........................................17 TENS PROGRAMS..................................................18 EMS PROGRAMS..................................................... 19 CARE AND MAINTENANCE............................................... 20 TROUBLESHOOTING.................................................. 21 TECHNICAL SPECIFICATIONS............................................22-24 RADIO FREQUENCY WIRELESS INFORMATION.................................. 25-26 INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY........................27-30 FCC INFORMATION..................................................31 WARRANTY......................................................32 REGISTER........................................................35 www.PlayMakar.com...
Page 4: Contraindications, Warnings, And Precautions
• Muscle contractions may put the user at undue risk of injury which may include use while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk of injury. www.PlayMakar.com...
Page 5 Do not use the device on children, if it has not been evaluated for pediatric use. We also recommend the following: • Consult with your physician before using this device, because the device may cause lethal rhythm disturbances to the heart in susceptible individuals. • Apply stimulation only to normal, intact, clean, healthy skin. www.PlayMakar.com...
Page 6 You may experience headaches and other painful sensations during or following the application of electric stimulation near your eyes and to your head and face. • You should stop using the device and should consult with your physician if you experience adverse reactions from the device. www.PlayMakar.com...
Page 7: What's Included
WHAT’S INCLUDED Package Content 1. Wireless Receiver Pods (2) 2. Protective Carry Case (1) www.PlayMakar.com...
Page 8: Pod Features
An orange light indicates the receiver pod is now in charge mode; once fully charged the orange light will turn off. Note: Do not charge receiver pods with electrode pads snapped on to the receiver pods as it will reduce longevity of the electrode pads due to excessive heat from charging. www.PlayMakar.com...
Page 9: About Rechargeable Batteries
When discarding or recycling batteries, make sure not to short circuit (+)(-) the terminals. • Please recycle. Do not dispose of old batteries with your household waste; dispose of them safely at your recycling center or business where the batteries were purchased. www.PlayMakar.com...
Page 10: Set Up: Pod Channel Pairing
(CH1, CH2, CH3, CH4). Once you have selected the channel, then press SET button. Note: When the receiver pod(s) are paired, the button on the pod(s) will blink twice, which means that the channel pairing was successful. The LCD on the remote will display SS. www.PlayMakar.com...
Page 11 STEP 3 - Press SET on remote to adjust mode, program, and intensity level by channel pod(s). See steps 6-9 on pages 14-15 to complete the set-up. Note: If you have programmed your pod(s) to a different channel other than CH1, use the adhesive labels provided to mark the pod's channel on the pod(s). www.PlayMakar.com...
Page 12: Step By Step Operation Guide For Treatment
5. When removing electrode pads, always remove by pulling in the direction of hair growth. 6. It may be helpful to apply PlayMakar ® After Use Electrotherapy Lotion on electrode pad placement area when system is not in use to help increase moisture of skin.
Page 13: Turning On And Off Receiver Pod(S)
Note: Do not turn the remote on until the receiver pod(s) are properly attached to electrode pad(s). Note: When stimulating the muscles of the arms or legs, muscle contraction may cause involuntary limb movement which may cause injury to yourself or others. Ensure limbs are secured to prevent movement. www.PlayMakar.com...
Page 14: Selecting Tens Or Ems Mode
6 EMS programs; the programs differ with respect to varying pulse widths and frequencies. The program you choose determines the impulse output type. Choose the program that is appropriate to your needs as shown on pages 18-19 or is most comfortable to you. www.PlayMakar.com...
Page 15: Selecting Treatment Minutes
"tingling" sensation. Never increase the intensity to a level that causes pain. Stay under point of discomfort. You can use this as a guide to select an intensity level that is comfortable for you. www.PlayMakar.com...
Page 16: Communication Between Remote And Receiver Pod(S)
1. LCD symbol on the remote control and LED indicator guide on receiver pod(s). 2. The PRO-1001 Expandable Wireless Pods comes with two (2) receiver pods. 3. Whenever the receiver pods are powered on, the remote shall display the channel of the receiver pod(s).
Page 17: Electrode Pad Placements
ELECTRODE PAD PLACEMENT Lower Back Hamstring Shoulder Calf Upper Back Thigh Go to PlayMakar.com/electrode-placement for more information www.PlayMakar.com...
Page 18: Tens Programs
For symptomatic relief and management of Variable comfortable tingling and pulsing sensation chronic, intractable pain, and relief of pain (sensation should appear to come in waves). Pain associated with arthritis. should ease and there should be relief after treatment. www.PlayMakar.com...
Page 19: Ems Programs
Strengthening and may be used for improving muscle strength. relaxation phases. Increase the stimula- tion intensity level until you get a strong and deep contraction. Do not exceed your comfort level; 20 min/duration. www.PlayMakar.com...
Page 20: Care And Maintenance
Note: Electrode pads are for single person use only. If you have questions about the integrity of the electrode pads or if you want to order new electrode pads, please order online at www.PlayMakar.com or call us at 833-PLAY-MAKAR. Rechargeable Battery Care The rechargeable batteries are built-in the device(s).
Page 21: Troubleshooting
2. If you have used advanced pairing option, press CH button on remote to navigate to respective pod. (See pages 10-11) 3. Set receiver pod by adjusting intensity. (See page 15) If intensity is not increased beyond "0", receiver pod will shut off automatically after 3 minutes of inactivity. www.PlayMakar.com...
Page 22: Technical Specifications
Essential Performance: The stimulation output as deﬁ ned in the following speciﬁ cation table for TENS & EMS. TENS Programs Program Pulse width(uS) Frequency(Hz) Function Mode Constant Burst Constant 260~156 2~60 Modulation 260~156 Modulation 7~60 Modulation 260~156 Modulation 2.45~245 Cycle www.PlayMakar.com...
Page 23 Operating Conditions: +50°F (10°C) to +104°F (40°C), 40-90% max. Relative humidity Transport and Storage Conditions: +14°F (-10°C) to +140° (60°C), 30-95% max. Relative humidity Operation Altitude: 3000m. Operating Atmospheric Pressure Range: 700~1013 hPa Transport and Storage Atmospheric Pressure Range: 500~1060 hPa www.PlayMakar.com...
Page 24 The symbol on the device means it is protected against hazards from entry of objects larger than a ﬁ nger and vertically falling water drops when tilted at 15 degrees. Stand-by. Package of electrode pads are labeled as follows: This symbol means “used before,” represented as “YYYY-MM” (for year and month). www.PlayMakar.com...
Page 25: Radio Frequency Wireless Information
RADIO FREQUENCY WIRELESS INFORMATION Radio Frequency Wireless technology is used in the PlayMakar Wireless Expandable Pods. For communication between the ® remote control and the receiver pods: Wireless Protocol Characteristics Frequency band 2.4GHz ISM Protocol type Proprietary frequency Channel Channel width...
Page 26 Wireless Coexistence Testing The PlayMakar Expandable Wireless Pods protocol is designed to allow coexistence with at least 4 other PlayMakar devices. ® ® Each PlayMakar Expandable Wireless Pod is controlled by remote control. Receiver pod is assigned a unique ID. Before initial ®...
Page 27: Information About Electromagnetic Compatibility
INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY (EMC) • The PlayMakar ® Expandable Wireless Pods are designed to be used in typical approved environments in accordance with the safety standard EMC EN60601-1-2. • The PlayMakar Expandable Wireless Pods are designed to support anticipated disturbances originating from ®...
Page 28 0.35 Declaration – electromagnetic emissions and immunity for EQUIPMENT and SYSTEMS that are not LIFESUPPORTING and are speciﬁ ed for use only in a shielded location Table 2 The PlayMakar ® Expandable Wireless Pods declaration – electromagnetic immunity The PlayMakar ®...
Page 29 Table 3 Declaration – electromagnetic immunity The PlayMakar Expandable Wireless Pods are intended for use in the electromagnetic environment speciﬁ ed below. The ® customer or the user should assure that it is used in such an environment. Immunity test...
Page 30 NOTE: U is the a.c. main voltage prior to application of the test level. Table 4 Declaration – electromagnetic emissions The PlayMakar ® Expandable Wireless Pods are intended for use in the electromagnetic environment speciﬁ ed below. The customer or the user of the system should assure that it is used in such an environment.
Page 31: Fcc Information
• Consult the dealer or an experienced radio/TV technician for help. The user should not modify or change this equipment without written approval from PlayMakar Inc. Modiﬁ cation could void authority to use this device. Note: The changes or modiﬁ cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 32: Warranty
WARRANTY This PlayMakar® Expandable Wireless Pods carries a one-year warranty from the date of purchase. The warranty applies to the receiver pods, necessary parts, and labor relating thereto. Consumable items, like electrode pads and other accessories, are guaranteed to be free from defects in workmanship and materials at the time of delivery.
Page 33: Register
THANK YOU FOR PURCHASING Your new PlayMakar ® device is one of the best in the industry, and in many ways, leads the industry, particularly in the warranty coverage and customer satisfaction. Customer satisfaction is a key factor in every PlayMakar transaction.
Page 34 www.PlayMakar.com...
Page 35 www.PlayMakar.com...
Page 36 PlayMakar Inc. www.PlayMakar.com 1603 Hart Street Southlake, TX 76092 If you have any questions whatsoever regarding your PlayMakar® Expandable Wireless Pods Model # PRO-1001, contact your reseller or PlayMakar Inc. at: 833-PLAY-MAKAR (833-752-9625) or visit www.PlayMakar.com...
