Operating Instructions

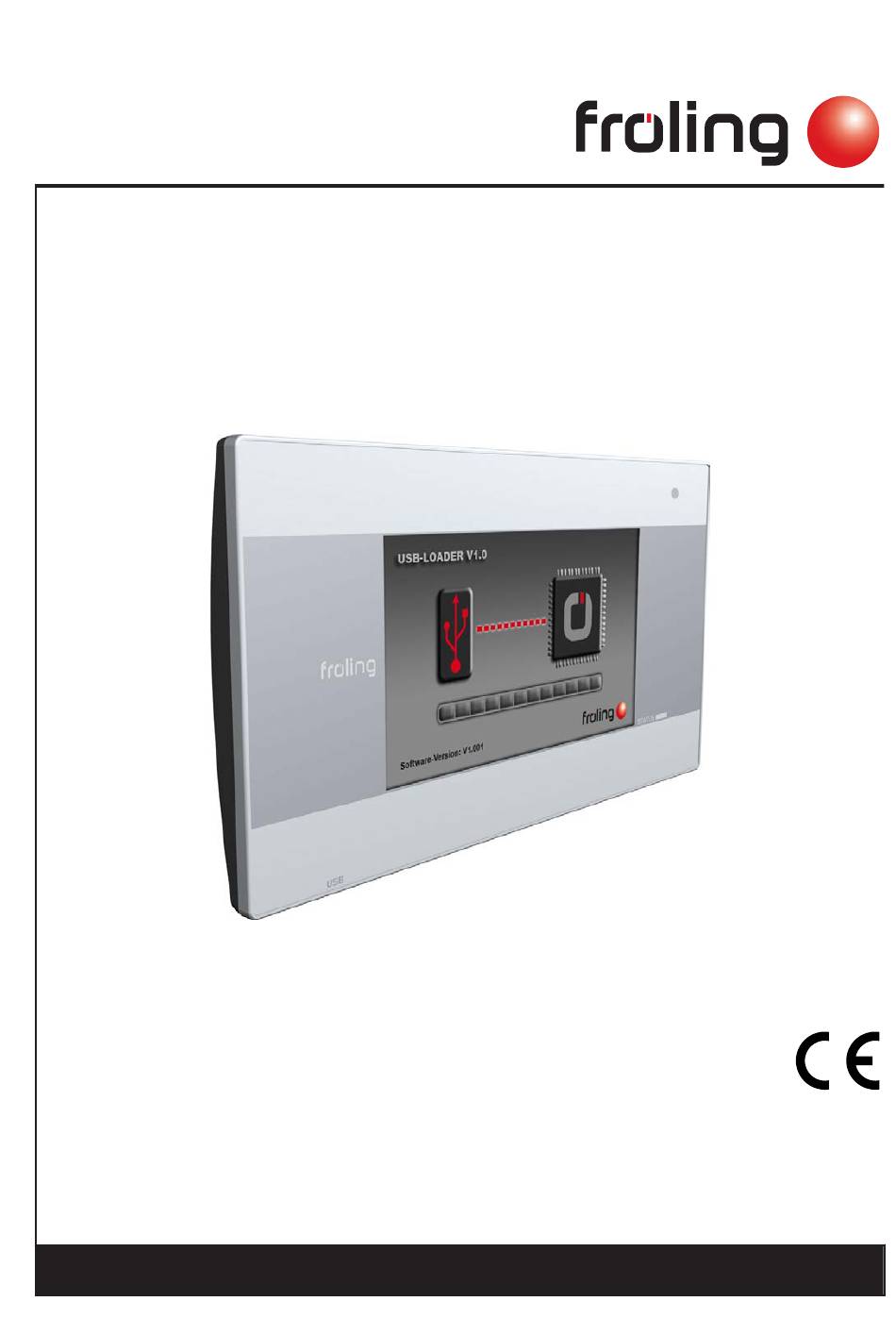

Room console RBG 3200 Touch
Translation of the original German operating instructions for the operator
Read and follow the instructions and safety information!
Technical changes, typographical errors and omissions reserved!
B0780115_en | Edition 08/06/2015
Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com
Advertisement
Table of Contents
Summary of Contents for Froling RBG 3200 Touch
- Page 1 Room console RBG 3200 Touch Translation of the original German operating instructions for the operator Read and follow the instructions and safety information! Technical changes, typographical errors and omissions reserved! B0780115_en | Edition 08/06/2015 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
-
Page 2: Table Of Contents
Solar - Status 5.3.2 Solar - Temperatures 5.3.3 Solar - Heat meter Buffer tank 5.4.1 Buffer tank - Status 5.4.2 Buffer tank - Temperatures 5.4.3 Buffer tank - Times Boiler 2 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... - Page 3 Diagnostics - Error display 5.10 Display settings 5.10.1 Display settings - General Network settings 5.10.2 Display settings - Date / Time Troubleshooting Procedure for fault messages Updating the software of the touch control Calibrating the touchscreen Operating Instructions RBG 3200 Touch | B0780115_en...
-
Page 4: General
1.1 About these instructions These instructions contain information about the electrical connection, operation, control parameters and troubleshooting for the RBG 3200 Touch room console. All parameters, which are visible at the “customer” operator level, are shown. The parameters actually displayed may vary depending on system configuration and operating level. -
Page 5: Installation
LIYCY paired 2x2x0.5 should be used. The connection to the 5-pin plugs should be carried out according to the following diagram: Braided shield Braided shield White White CAN L CAN L Green Green CAN H CAN H Yellow Yellow Brown Brown Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 6: Setting End Jumpers
2.1.3 Calibrate the display Once the power supply has been switched on for the first time, the RBG 3200 Touch starts by calibrating the display. To calibrate the touchscreen, you much press five points indicated by a crosshair in the order shown. - Page 7 (switch main switch on boiler off and on). All of the system information will then be loaded into the RBG 3200 Touch. This process can be time-consuming. The following screen appears after the RBG 3200 Touch’s first system start: The basic screen displays only the external temperature as no components have been assigned to the RBG 3200 Touch yet.
-
Page 8: Overview Of The Basic Functions
The status LED shows the operating status of the system: ▪ GREEN flashing (interval: 5 sec OFF, 1 sec ON): Off / Boiler off ▪ GREEN constant: BOILER SWITCHED ON ▪ ORANGE flashing: WARNING ▪ RED flashing: FAULT Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 9: Icons
Discards any values entered without saving and closes messages. An “i” at the top left after selecting a parameter indicates additional information available for this parameter. Pressing the Cancel icon takes you back to the selected parameter. Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 10: Operation
If, for example, several heating circuits are installed, you can use the right and left arrows to navigate to the desired heating circuit. You can open any other menu items available in the same way. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... - Page 11 The parameter list shows three parameters. The up and down arrows can be used to scroll through longer lists of parameters. If you have reached the start or end of the parameter list, the relevant arrow symbol will become inactive. Operating Instructions RBG 3200 Touch | B0780115_en...
-
Page 12: Adjusting Parameters
A parameter can only be adjusted if there is a pen icon beside it. Depending on the type of parameter, either the numeric keypad..or a list box will appear. In both cases you need to tap the confirm icon to save the entry. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 13: Setting Times
❒ The time window will open for editing ❒ Set the start and end time for the time window using the up and down arrows ❒ Save the time window setting by tapping on the confirm icon Operating Instructions RBG 3200 Touch | B0780115_en... - Page 14 To delete a time window, set the times so that the hour and minute displays are replaced by two dashes. If you want to apply the time window setting to another day in addition, you can do this by activating the relevant day. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com...
-
Page 15: Setting The Room Temperature Setpoints
4.6 Set the heating circuit mode The current mode for the allocated heating circuit is displayed in the basic display to the left of the mode icon. Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 16: Off" Mode
The temperature setpoint displayed in setback mode on the basic screen is for display purposes only and cannot be changed. To change this, go to the “Heating” menu → under the “Temperature” tab. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 17: Menu Overview And Parameters
▪ Setback: setback mode; the heating phases are ignored ▪ Auto: automatic mode: heating phases according to the set heating times ▪ Off: switched-off; heating circuit deactivated, only frost protection! Outside air temperature 2°C Shows the current external temperature. Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 18: Heating - Temperatures
External temperature below which the heating circuit pump switches on in heating mode 18°C If the external temperature exceeds this value during heating, the heating circuit pumps and mixing valve are deactivated. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 19: Heating - Times
If the room temperature or the flow temperature is lower than the set value, the heating circuit pump will be switched on and the heating circuit mixer keeps to the maximum heating circuit flow temperature that is set. 5.1.3 Heating - Times System menu Heating ⇨ See "Setting times" [page 13] Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 20: Water
Current temperature in the area of the reference sensor of the solar panel system. DHW tank pump control Specifies the speed of the DHW tank pump as a percentage of maximum speed. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 21: Water - Temperatures
If the DHW tank temperature falls below the value set here, the time window is active and the loading source (boiler or buffer tank) indicates the set loading increase, and the DHW tank loading is started. 5.2.3 Water - Times System menu Water ⇨ See "Setting times" [page 13] Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 22: Solar
Display of the heat quantity which has been supplied by the solar panel system since activation of the heat meter. DHW tank bottom temperature 55°C Current temperature in the area of the reference sensor of the solar panel system. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... - Page 23 Diverter valve for top/bottom coils 100% Prerequisite: Hydraulic System 12 or Hydraulic System 13 Current control of the isolating valve on the solar side. ▪ 0% … bottom buffer tank ▪ 100% … top buffer tank Operating Instructions RBG 3200 Touch | B0780115_en...
-
Page 24: Solar - Temperatures
If the sensor for the solar reference temperature in the buffer tank exceeds the specified value, the collector pump is switched off. NOTICE! This parameter is only relevant for systems used in conjunction with a buffer tank! Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 25: Solar - Heat Meter
Display of the heat quantity that has been supplied by the solar panel system today. Total yield [kWh] Display of the heat quantity which has been supplied by the solar panel system since activation of the heat meter. Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 26: Buffer Tank
Display of the current speed of the buffer loading pump. Buffer tank charge Prerequisite: Master boiler in the cascade or hydraulic system 4 or fuel amount calculation Displays the current buffer tank charge. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 27: Buffer Tank - Temperatures
From this difference between the boiler temperature setpoint that has been set and the current temperature in the lower part of the buffer tank, buffer tank loading is stopped. 5.4.3 Buffer tank - Times System menu Buffer tank ⇨ See "Setting times" [page 13] Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 28: Boiler
Manual start of secondary boiler (only when ID fan is switched off) ▪ OFF: Secondary boiler is controlled according to the program that is set ▪ ON: Secondary boiler is activated immediately NOTICE! Burner blockage noted. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 29: Boiler 2 - Temperatures
Secondary boiler delivery temperature 95°C Prerequisite: Hydraulic system 3 in conjunction with a manually loaded secondary boiler. If the secondary boiler exceeds the specified temperature, the isolating valve switches and skims the boiler. Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 30: Difference Regulator
Heat sink sensor 40°C Display of the current temperature of the heat sink for the differential controller (e.g. layered tank, ...) Pump speed Specifies the current speed of the differential controller pump. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 31: Circulation Pump
If the set temperature at the return circulation line is reached, the circulation pump will be deactivated. NOTICE! Parameter only relevant when using a return feed sensor in the circulation line! 5.7.3 Circulation pump - Times System menu Circ. pump ⇨ See "Setting times" [page 13] Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 32: System
Boiler temperature 25°C Flue gas temperature 28°C ID fan control Residual oxygen content 1.9% Outside air temperature 2°C Service hours Hours since last maintenance Software version Version 50.04 Build 05.10 Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 33: System - Display Operating Rights
For connection via the froeling-connect.com online platform using a touch display, the issue of a password is required. NOTICE! The same password can be assigned for each touch display! Password for boiler display Password for Touch display with address 1 Password for touch display with address 7 Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 34: Diagnostics
If the screen of the touch display is not touched within the set time, the screensaver will activate and the dis‐ play will go dark. To disable the screensaver, set the delay time to “0”. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... -
Page 35: Network Settings
DNS server 0.0.0.0 5.10.2 Display settings - Date / Time Date / Time System menu Display settings Date 08.01.2015 Display and setting of current date. Time 14:40:15 Display and setting the current time. Operating Instructions RBG 3200 Touch | B0780115_en... -
Page 36: Troubleshooting
The “Error display” button will now appear in the quick menu. 6.1 Procedure for fault messages If you open the window with the respective fault text, the right arrow will take you to possible causes of the fault. Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... - Page 37 Tapping “Solution” will also display action to be taken to resolve the problem. If there are several options available, these will be listed one below the other. Once the fault has been resolved, tap the Cancel icon to return to the basic display. Operating Instructions RBG 3200 Touch | B0780115_en...
-
Page 38: Faq
❒ Insert the USB stick with the necessary data (linux.bin; rootfs.img; update) into the USB port ❒ “Display settings” menu → “Software update / Service” ❒ Set “Restart control / Update” parameter to “Yes” ➥ Update will begin Display during the update: Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... - Page 39 Once the calibration is complete, it will restart again to finish. The touch control software is now up to date. NOTICE Inaccurate calibration If you do not tap the indicated points accurately, the control may stop working properly and a software update may be required. Operating Instructions RBG 3200 Touch | B0780115_en...
-
Page 40: Calibrating The Touchscreen
❒ Scroll down with the down arrow until the “Software update / Service" submenu appears and open the submenu ❒ In the “Software update / Service" menu open the “Recalibrate touch control” parameter Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com... - Page 41 The control will restart after calibration. NOTICE Inaccurate calibration If you do not tap the indicated points accurately, the control may stop working properly and a software update may be required. Operating Instructions RBG 3200 Touch | B0780115_en...
