DESCRIPTION
These instructions detail the hardware installation procedure for the ArchiTech cylindrical door locks using the Surface
-Mounted Networx Control Units for hollow metal and solid wood doors.
Installation instructions for the Door Contact Sensor, Door Contact Magnet (installed in the door jamb) and the
Oval and Rectangular Proximity Readers are also included.
PARTS OVERVIEW
For reference, the images in Fig. A display each component (not to scale). In addition to the various screws and tem-
plates included with your lock, please note that one of two types of Proximity Readers are included, either Oval or
Rectangular. In addition, one of two types of Door Contact Magnets (installed in door jamb) are included, ei-
ther 3/8" or 3/4" diameter.
Wires for the Door Contact Sensor, Proximity Reader and Cylindrical Lock motor are routed through the door
and are plugged into the rear of the Surface-Mounted Networx Control Unit, mounted on the inside (" protected" )
door surface.
The Cylindrical Lock Motor Wire can be routed within hollow metal doors; with solid wood doors, this Cylindrical Lock
Motor Wire can be routed on the door surface but behind a Wiring Plate (HW1945), or an optional Cylindrical
Drill Jig (part #N90S1DJ) is available to allow a hole to be drilled allowing this wire to be routed through the
solid wood door.
OVAL AND RECTANGULAR
PROXIMITY READER COVERS AND
MOUNTING COMPONENTS
REQUIRED TOOLS
In addition to the standard door prep kit tools used to install a cylindrical lock into a metal or wood door (standard ASA
161 door prep cross-bore hole saws, Phillips and flat head screwdrivers, etc.), you will need: A small level, and the
following drill bit sizes: 5/8", 3/8", 3/4" and 7/64". If the Cylindrical Drill Jig (part #N90S1DJ) is used, a round or cir-
cular file is needed to remove burrs in holes and to file a pathway groove in wooden doors for the Cylindrical
Lock Motor Wire.
IMPORTANT: For installation on UL Listed Wood Fire Doors, fill the through hole wire passage with UL Clas-
sified Fire Stop Sealant after connecting all wiring and testing the Lock.
ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions
ArchiTech
FOR CYLINDRICAL LOCKS USING SURFACE-MOUNTED NETWORX CONTROL UNITS
MOUNTING AND INSTALLATION INSTRUCTIONS
© NAPCO Security Technologies, Inc. 2016
"SURFACE-MOUNTED" NETWORX
CONTROL UNIT
AND ITS MOUNTING PLATE

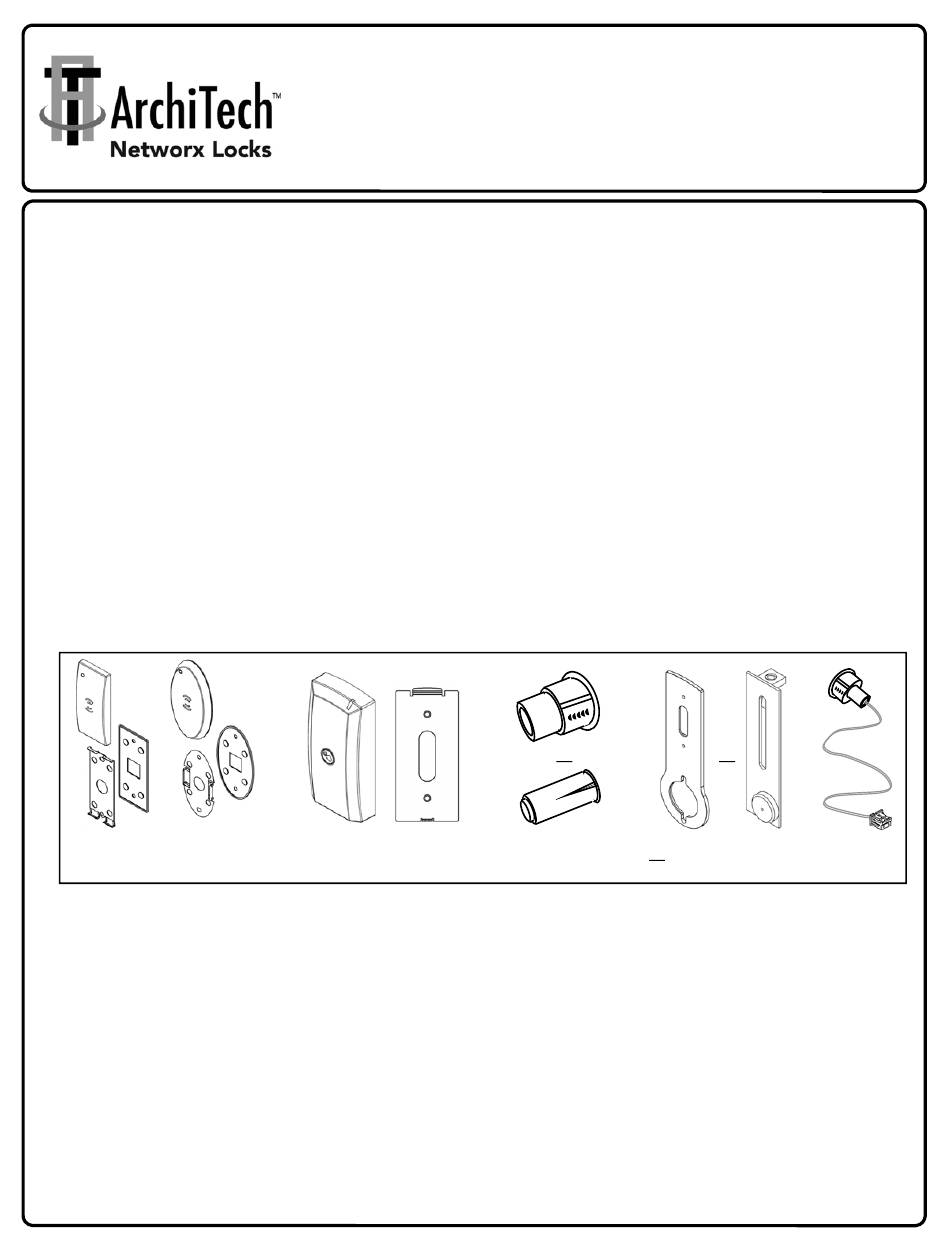

FIG. A: OVERVIEW OF BASIC PARTS (NOT TO SCALE)
by Networx
OR
DOOR CONTACT
USE WIRING PLATE (LEFT)
MAGNET
OR OPTIONAL CYLINDRICAL
(TWO TYPES)
DRILL JIG (RIGHT)
WI2104B 09/16
OR
DOOR
CONTACT
SENSOR
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Architech and is the answer not in the manual?

Questions and answers

Summary of Contents for NetworX Architech

  • Page 1 3/8" or 3/4" diameter. Wires for the Door Contact Sensor, Proximity Reader and Cylindrical Lock motor are routed through the door and are plugged into the rear of the Surface-Mounted Networx Control Unit, mounted on the inside (" protected" ) door surface.
  • Page 2 Do not install the lock hardware yet. FIG. 2: USE TEMPLATE PROVIDED ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 3 TIP: Take special notice of this 5/8" diameter thru-hole, as it is an essential hole for this installation and is refer- enced several times throughout these instructions. FIG. 4. CLOSE UP OF WI2098 TEMPLATE FOR THE "PROXIMITY READER" ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 4 FIG. 6A: TAPE SIGNIFIES FIG. 6B: CLOSE DOOR AND FIG. 6C: LOCATE MAGNET IN JAMB "HEIGHT FROM FLOOR" TRANSFER HEIGHT TO JAMB CENTERED DIRECTLY OPPOSITE THE SENSOR WHEN DOOR IS CLOSED ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 5 7. TAPE ON DOOR: "SURFACE-MOUNTED NETWORX CONTROL UNIT" TEMPLATE (WI2099) The Surface-Mounted Networx Control Unit (see Fig. A on page 1) is al- ways mounted on the inside ("protected") door surface. Fold and place the template (WI2099) on the inside door edge. Align the template with the "HORIZONTAL CENTER LINE OF LEVER"...
  • Page 6 5/8" diameter thru-hole). (5/8" DIAMETER THRU-HOLE, DRILLED IN STEP 9C) (CYLINDRICAL LOCK PREP, STEP 2) FIG. 9D: 3/4" DOOR CONTACT SENSOR HOLE IN EDGE OF THE DOOR ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 7 10C. Insert the magnetic Door Contact Magnet in the jamb hole; the contact sits almost flush with the jamb when fully inserted. In some cases, an adhesive may be needed to ensure a secure fit. FIG. 10C: DOOR CONTACT MAGNET INSTALLED IN DOOR JAMB ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 8 Drill Jig (part #N90S1DJ) to drill a pathway for the wire within ROUTE THE LOCK WIRE the solid wood door (from the 2-1/8" diameter door chassis hole to the 5/8" diameter thru-hole). Skip to step 12. ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 9 ("protected") side of the door. Do not in- stall the inside housing yet, as the Wiring Plate will need to be installed first. FIG. 11B: WIRE RUNS TO THE INSIDE ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 10 Phillips Flat head, U-cut (part #SC682);  For Wood Doors: #6 x 3/4" long undercut self- tapping Type A Phillips head (part #SC596) Skip to step 13. ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 11 FIG. 12AA: CYLINDRICAL DRILL JIG side, use Hole A to shift the Jig away from the latch, to align with the Motor Wire. ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 12 Drill Jig as shown in Fig. 12C and drill the hole until the 2-1/8" diameter door chassis hole is reached. When finished, remove the Jig. FIG. 12C: DRILL SLOWLY AND CAREFULLY ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 13 Creating this notch to allow space for the motor wire is very important and MUST be performed. Notch Motor Wire Cylindrical Lock Body FIG. 12D: FILE NOTCH (ARROW) 12E. INSTALL THE LATCH Secure with screws provided. FIG. 12E: INSTALL LATCH ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 14 ("protected") side of the door. Note: The Door Contact Sensor plug wires are white. DOOR CONTACT SENSOR FIG. 13: ROUTE TO THE INSIDE FIG. 13A ("PROTECTED") SIDE OF THE DOOR ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 15 1/2" long Type A Phillips RIGHT "TABS") AND THE ATTACHED head (part #SC265) "OVAL RUBBER GASKET" Again, do NOT over-tighten these screws; over- tightening will cause undesired deformation of the Rubber Gasket. ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 16 Press firmly on the right side of the Reader until it "snaps" into place. Note: A spare Mounting Plate and Rubber Gasket are provided if needed. Be careful not to pinch any wires. FIG. 14CC ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 17 5/8" diameter thru-hole to the inside ("protected" side) of the door. Do not pinch wires. FIG. 15B: FEED THE WIRES INTO THE 5/8" DIAMETER THRU-HOLE (FROM "OUTSIDE" TO "INSIDE") ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 18 Unit Mounting Plate on top of the Wiring Plate and (BOTTOM) re-install the screws (see Fig. 16A). FIG. 16: CONTROL UNIT MOUNTING PLATE FIG. 16A: INSTALL CONTROL UNIT MOUNTING PLATE ON TOP OF WIRING PLATE, IF INSTALLED ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 19 See the above Fig. 17 for the location of the Battery Pack socket. Place the Battery Pack into the rear of the Surface- Mounted Networx Control Unit with the flat side up, as shown in Fig. 18A. As shown in Fig. 18B, route the wires through the opening in the PCB.
  • Page 20 Before mounting, we recommend feeding all of the previously connected wires back into the door. a. Hook the top of the Surface-Mounted Networx Control Unit into the top of the Control Unit Mounting Plate and press the bottom until flush with the door surface.
  • Page 21 NOTES ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 22 NOTES ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 23 NOTES ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
  • Page 24 ArchiTech Cylindrical Lock & Surface-Mounted Networx Control Unit Mounting and Installation Instructions...
