Summary of Contents for Viega 4970

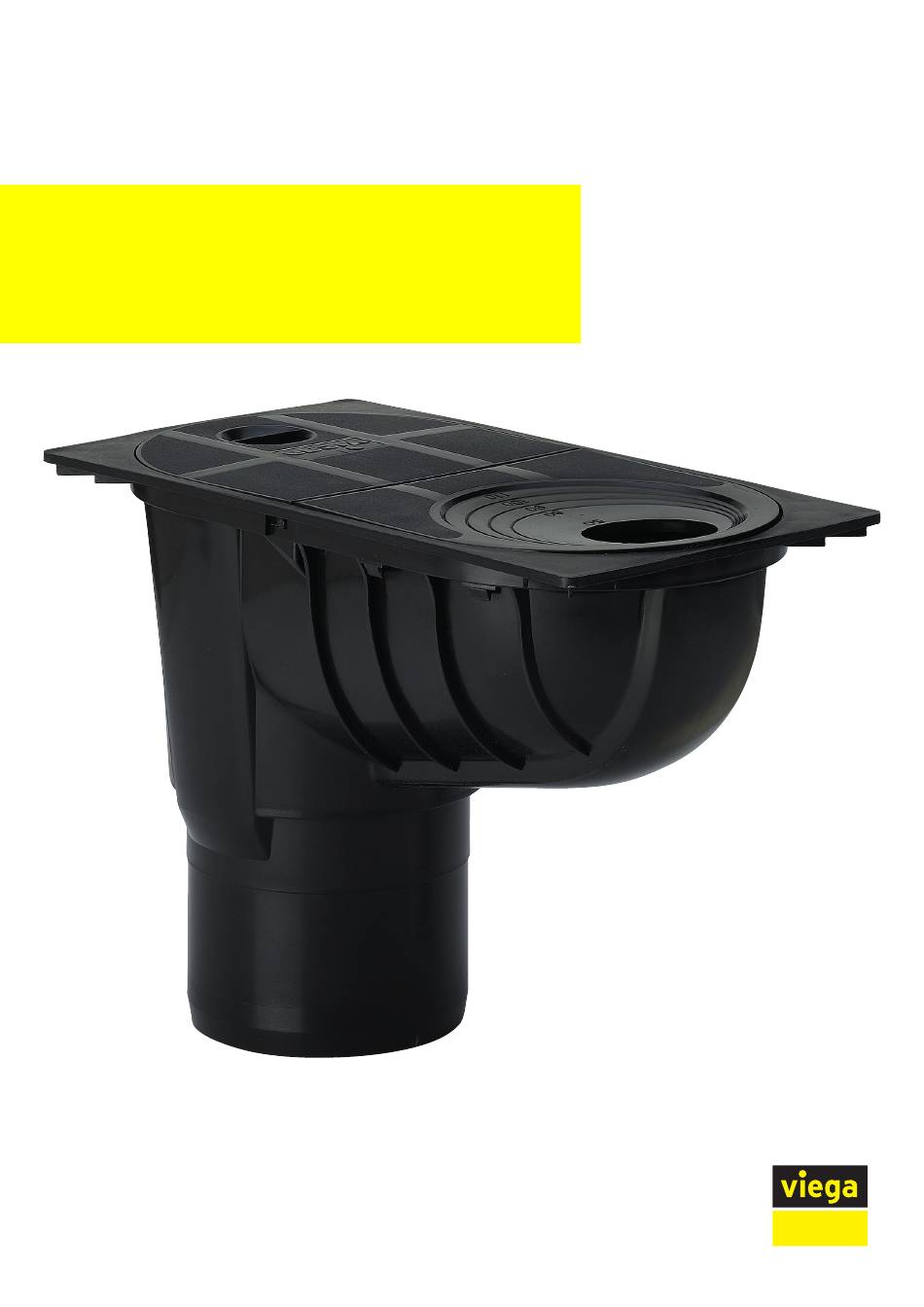

- Page 1 Advantix rainwater drain Instructions for Use for pipeline connections from DN 50–100 Model Year built: 4970 from 01/2008 en_INT...
- Page 2 Advantix rainwater drain 2 from 11...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Standards and regulations Intended use 2.2.1 Areas of use 2.2.2 Media 2.2.3 Drainage capacity Product description 2.3.1 Overview 2.3.2 Technical data Information for use... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information
2 Product information Standards and regulations The following standards and regulations apply to Germany / Europe. National regulations can be found on the relevant web site of your viega.com/standards . country at Regulations from section: Media Scope / Notice Regulations applicable in Ger-... -
Page 7: Product Description
Product information Product description 2.3.1 Overview Fig. 1: Components rain hopper model 4970 1 - cleaning flap 2 - leaf trap 3 - drain casing 4 - odour barrier 5 - pipe lead-in Advantix rainwater drain 7 from 11... -
Page 8: Technical Data
Product information 2.3.2 Technical data Nominal width [DN] (drain socket) Ä Chapter 2.2.3 „Drainage capacity“ Drainage capacity on page 6 Dimensions and installa- Ä Chapter 3.1.2 „Installation dimen- sions“ on page 9 tion height Information for use 2.4.1 Installation variations The rain hopper can be installed parallel with or at an angle of 90°... -
Page 9: Handling
Handling 3 Handling Assembly information 3.1.1 Important note Before assembly: Check if the drainage capacity is sufficient for the arising water Ä Chapter 2.2.3 „Drainage capacity“ on page 6 . volume Ensure that the required connection line is installed with the neces- sary incline to the planned installation location. -
Page 10: Assembly
Handling Assembly 3.2.1 Connecting the drain Requirements: A pipe to the planned drainage position is already in place for the connection to the wastewater system. The drainpipe has an internal sealing lip. Measure the diameter of the downpipe. Cut the pipe lead-in according to the diameter of the downpipe. Place the rain hopper in the floor and connect the wastewater pipe. -
Page 11: Care
Handling Mount the rain hopper level with the surrounding surface and secure against sinking. Care 3.3.1 Care tips To maintain a consistent drainage capacity, the leaf trap must be emp- tied regularly. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements.
