Summary of Contents for Neuropex ENT001

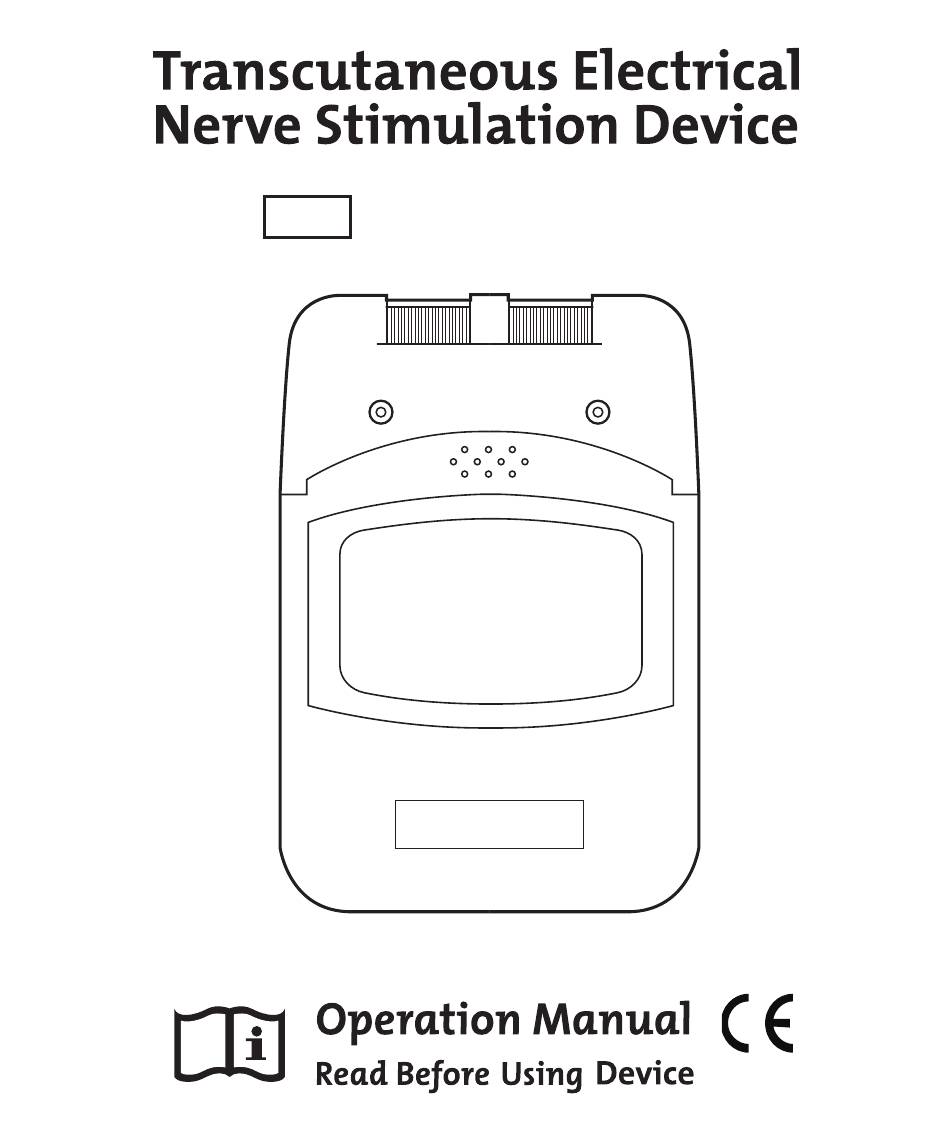

- Page 1 REF ENT001 / WL-2103A N E U R O P E X 0120...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION TO TENS INDICATIONS AND CONTRAINDICATIONS WARNINGS PRECAUTIONS/ADVERSE REACTIONS ABOUT THIS DEVICE UNIT CONTROLS ATTACHING THE LEAD WIRES ELECTRODE SELECTION AND CARE TIPS FOR SKIN CARE CONNECTING THE TENS DEVICE BATTERY INFORMATION CARING FOR YOUR TENS DEVICE TROUBLESHOOTING SYSTEM COMPONENTS TECHNICAL SPECIFICATIONS... -
Page 5: Introduction To Tens
INTRODUCTION TO TENS What is Pain? Pain is the body’s warning system. Pain is important because it signals an unusual condition in the body and alerts us before additional damage or injury can occur. However, long-lasting, persistent pain, often called chronic pain, once diagnosed serves no apparent purpose. -
Page 6: Contraindications Warnings
CONTRAINDICATIONS - Patients with implanted electronic devices ( for example, a pacemaker ) or metallic implants should not undertake TENS treatment without first consulting a physician. - Any electrode placement that applies current to the carotid sinus (neck) region. - Any electrode placement that causes current to flow transcerebrally. -
Page 7: Precautions/Adverse Reactions
PRECAUTIONS/ADVERSE REACTIONS Isolated cases of skin irritations may occur at the site of electrode placement during long term application. Effectiveness is highly dependent upon patient selection by a person qualified in the management of pain patients. Skin irritation and electrode burns are potential adverse reactions. -
Page 8: About This Device
ABOUT THIS DEVICE Your TENS device is a battery operated device that includes two controllable output channels. This TENS device creates electrical impulses whose amplitude, duration, and modulation can be altered with the controls or switches. The TENS dial controls are very easy to use and the slide cover protects accidental changes in settings. -
Page 9: Attaching The Lead Wires
Mode Functions Burst (B) releases individual bursts twice per second. Pulse width is adjustable and the pulse rate is set at 100Hz per second. Continuous (C) stimulation is delivered continuously at the settings determined by intensity, rate, and width knobs. Modulation (M) pulse width decreases from its setting by 60% and maintains the decreased width for 2 seconds before return- ing to the original width setting, which is maintained for 3.5... -
Page 10: For Skin Care
TIPS FOR SKIN CARE Good skin care is important for comfortable use of your TENS device. - Always clean the electrode site with mild soap and water solution, rinse well and blot dry thoroughly prior to any electrode application. - Any excess hair should be clipped, not shaved, to ensure good electrode contact with the skin. -
Page 11: Battery Information
3. Place electrodes on the skin Place the electrodes on the skin as recommended by your physician/clinician. 4. Insert Lead Wire Connector to TENS device Plug end of lead wire into the channel output receptacle to be used, pushing plug in as far as it will go. 5. -
Page 12: Caring For Your Tens Device
Changing the Battery When the indicator light on the front of the unit does not remain lit once the unit is turned on, the battery should be replaced with a newly charged battery. 1. Remove the panel cover by pressing the top and sliding down until it is completely removed from the unit. -
Page 13: Troubleshooting
TROUBLESHOOTING If the TENS device does not function properly: 1. Make sure the battery is properly installed or replace battery. Be sure to observe proper polarity markings when replacing the battery. If the yellow light on the front of the unit does not stay lit when the unit is turned on, replace the battery and check again. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Channel: Dual, isolated between channels Modes of Operations: Continuous, Burst, Modulation Pulse Intensity: Adjustable 0-80mA peak into 500 ohm load each channel, constant current Pulse Rate: 2Hz-150Hz (adjustable) Pulse Width: 30uS-260uS (adjustable) Timer: Cont., 30 min., 60 min. Burst Mode: Burst consists 2 burst per sec at 100 Hz Wave Form:... -
Page 15: Warranty
Batteries and electrodes are consumable products and as such are not included within the warranty. DESCRIPTION OF SYMBOLS: Caution (Output ) TYPE BF equipment Follow instructions for use Do not dispose in normal dustbin. Well Life model # WL-2103A corresponds to Neuropex Model ENT001... -
Page 16: Electromagnetic Compatibility
Electromagnetic Compatibility ● The device complies with current specifications with regard to electromagnetic compatibility and is suitable for use in all premises, including those designated for private residential purposes. The radio frequency emissions of the device are extremely low and in all probability do not cause any interference with other devices in the proximity. - Page 17 Guidance and manufacturer’s declaration – electromagnetic immunity below. The customer or the user of this device should assure that it is used in such an environment. Immunity IEC 60601 Compliance Electromagnetic test Test level level environment guidance Electrostatic Floors should be wood, concrete discharge ±6 kV contact ±6 kV contact...
- Page 18 Guidance and manufacturer’s declaration – electromagnetic immunity below. The customer or the user of this device should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic Immunity test Test level level environment guidance P o r t a b l e a n d m o b i l e R F c o m m u n i c a t i o n s e q u i p m e n t should be used no closer to any part of this device, including...
- Page 19 a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
- Page 20 NEUROPEX WWW.NEUROPEX.CO IM-21-052 RevA17...
