CAST IRON STOVES
INSTALLATION AND OPERATING INSTRUCTIONS
4B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST0406G/Y and is the answer not in the manual?

Questions and answers

David
January 29, 2025

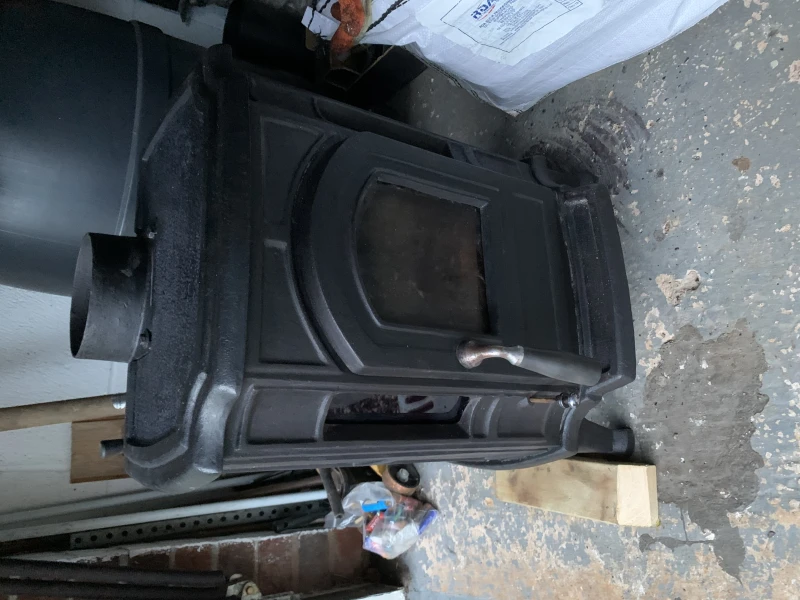

Which way should the plate face. Side with Ribs facing to the sky or downwards.

User image 679a0ecb7fb40

Summary of Contents for Evergreen Stoves ST0406G/Y

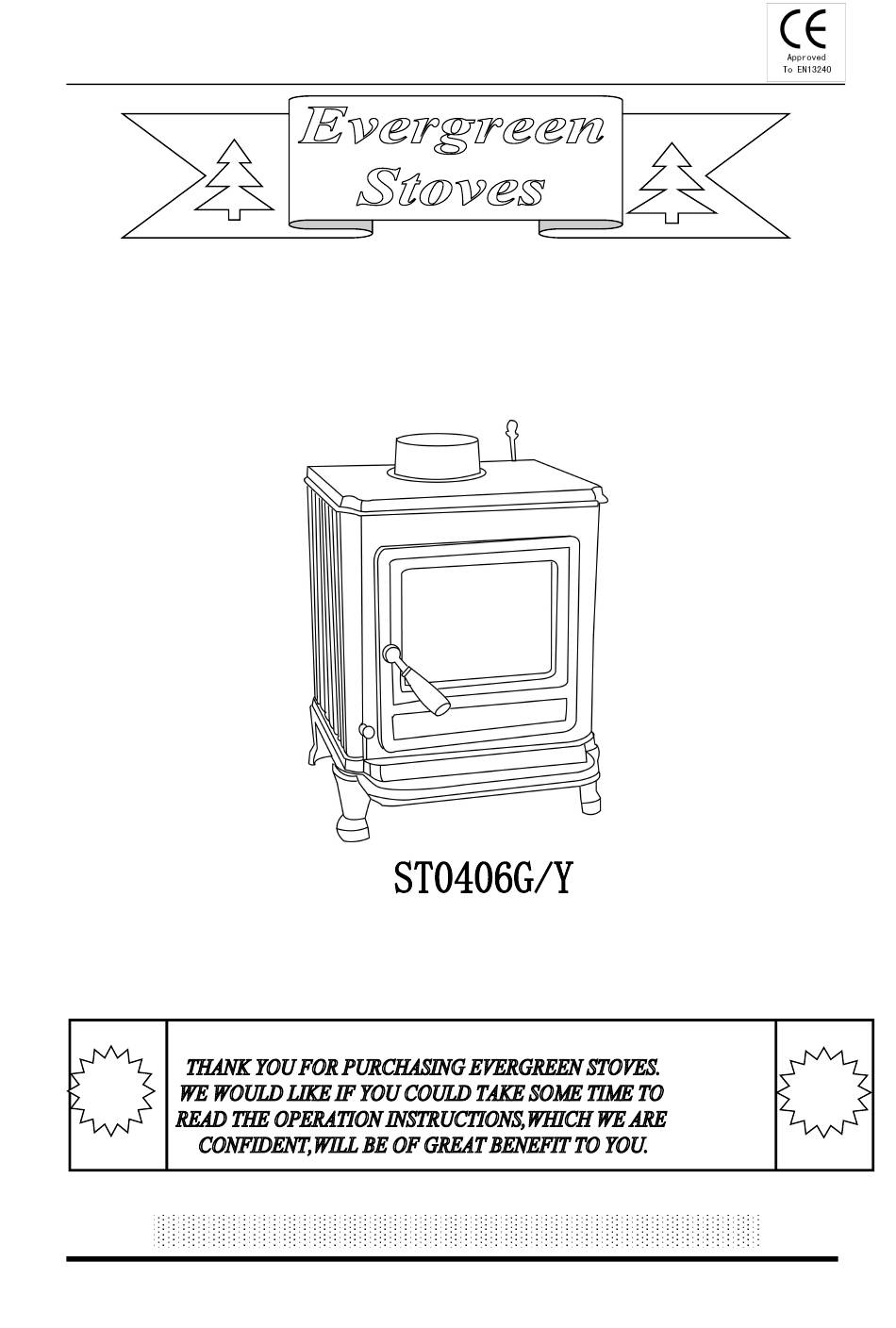

  • Page 1 CAST IRON STOVES INSTALLATION AND OPERATING INSTRUCTIONS...
  • Page 2: Flue Draught

    GENERAL When installing, operating and maintaining your stove respect basic standards of fire safely. Read these instructions carefully before commencing the installation. We are not responsible for any fault arising through incorrect installations. Save these instructions for future reference. All local regulations, including those referring to national and European Standards need to be complied with when installing the appliance.
  • Page 3: Air Supply

    AIR SUPPLY When you install the stove, you must observe the relevant statutory regulations. It is essential for the appliance to have a sufficient air supply for combustion and ventilation. A permanently open air vent to an exterior wall within the room is required (formula to work out air vent can be found in Building Control Document J) FLOOR PROTECTION The appliance shall be installed on floors with an adequate load-bearing capacity.
  • Page 4: Combustion Air

    LIGHTING 1) Before lighting the stove, Please ensure that any build-up in the firebox has been removed and that the ashpan has been emptied. only regulator and grate 2) Open the of the stove. 3) Lay firelighters or paper on the grate and then kindling wood with a small quantity of fuel.
  • Page 5: Clearance To Combustibles

    It is very important not to site the stove next to combustibles. Evergreen stoves kindly remind you as follows: 1) It is recommended that this stove is sited next to and on a non-combustible surface. 2) If it is necessary to site the stove next to combustible materials, then it must install the heat shield on the bottom plate and on the backside plate of the stove.
  • Page 6 NOMINAL HEATING CAPACITY The nominal heating capacity of the stove amounts to kW. It will be reached at a chimney draught of 10 Pa – to 12Pa. ROOM- HEATING CAPACITY The room-heating capacity is corresponding to DIN 18 893 for room, whose thermal insulation does not correspond to the requests of the warmth protection ordinance for a nominal heating capacity of In favourable heating conditions...
