Page 2: Table Of Contents
SAFETY INFORMATION CONTENTS ATOM GRIP PARTS COMPATIBILE ACCESSORIES ADJUSTMENTS ATTACHING TO AN AIR FRAME HANGING FROM A TRUSS SAFETY STEEL CABLES SPECIFICATION DIMENSIONS EC DECLARTION OF CONFORMITY +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com... -
Page 3: Safety Information
Do not hang the Air Frame from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. • When stacking Air Frames, ENSURE all four locking pins are securely positioned through the adjoining male and female Air Frame stacking connectors. +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com... - Page 4 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com...
-
Page 5: Atom Grip Parts

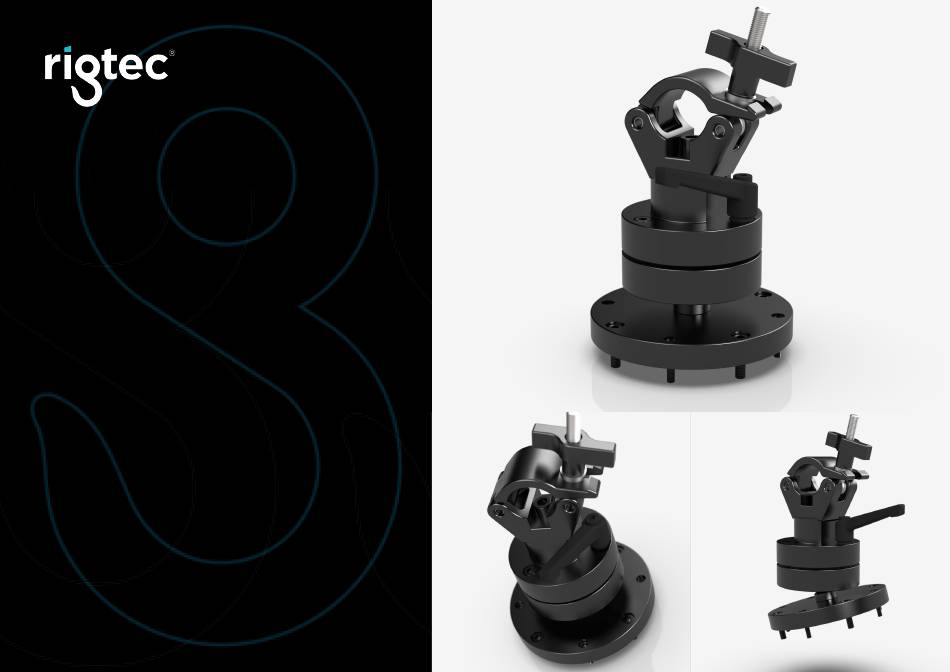

PART NAMES Use this page as a reference of the various part names throughout this User Guide. Clamp Handle Clamp Adjustment Handle Ball Joint Base M8 Bolts (x 4) M6 Bolts (x 4) +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com... -
Page 6: Compatibile Accessories
COMPATIBILE ACCESSORIES The Atom Grip HD is compatible with the following Rigtec Products: Air Frame X-10 (AF01-X10) • Air Frame X-20 (AF01-X20) • Air Frame X-30 (AF01-X30) • Barco F50 Rental Frame (AMF100130) DISCONTINUED • Medium Rental Frame (AMF100070) DISCONTINUED •... -
Page 7: Adjustments
ADJUSTMENTS The Atom Grip HD adjustment handle can be used to achieve 25° tilt and 360° rotation of the hanging projector. To operate the Atom Grip Adjustments follow these instructions: Rotate the Adjustment Handle anti-clockwise to untighten the Atom Grip ball joint. - Page 8 Adjustment Handle is moved, the weight and centre of gravity of the accessory – PRECAUTIONS SHOULD BE TAKEN TO AVOID ANY IMPACTS. UNDER NO CIRCUMSTANCES SHOULD THE ADJUSTMENT HANDLE / LEVER BE REMOVED WHILE A LOAD IS BEING SUPPORTED. +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com...
-
Page 9: Attaching To An Air Frame
ATTACHING TO AN AIR FRAME To attach an Atom Grip HD to any of the 3 Atom Grip Attachment Plates on an Air Frame please follow these instructions: Required Tools: 6mm Hex Key (Allen Key) • Place the Atom Grip HD on to the Atom Grip Attachment Plate. -
Page 10: Hanging From A Truss
HANGING FROM A TRUSS Once the Atom Grip HD is attached to the Air Frame it can be hung from a Truss. Follow these instructions: Firstly, ensure the Atom Grip HD is correctly attached to the Air Frame (See Page 9). Then untighten and open the clamp by using the clamp handle. -
Page 11: Safety Steel Cables
STEEL CABLES The installer bears the responsibility to ensure the Air Frame and Atom Grip HD is suspended in a safe and secure fashion. Safety Steel Cables must be applied to suspended Air Frames according to local regulations and standards. For more information on safely suspending equipment please consult local laws and regulations. -
Page 12: Specification
SPECIFICATION Part Number: AGA01-H Description: Atom Grip HD Flying Weight: 4.4kg Safe Working Load (SWL): 370kg Tilt Adjustment: 25° Rotation Adjustment: 360° Tube Diameter: Ø48-51mm Bolt Size: 4 x M8 / 4 x M6 +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com... -
Page 13: Dimensions
DIMENSIONS +44 (0)1926 484 609 hello@rigtec.com www.rigtec.com... -
Page 14: Ec Declartion Of Conformity
