Vanguard VCBK4R Installation And Operating Instructions

VCBK4R AND VCBK4L BLOWER
FOR MODELS V36R/L AND VI36R/L
INSTALLATION AND OPERATING INSTRUCTIONS
INSTALLING BLOWER
BEFORE MOUNTING
FIREPLACE
Note: Fireplace must be properly connected to a 110v power source
before blower can be operated.
1. Remove large knockout tab (see Figure 1).
2. Remove knurled nut from the blower switch stem and place
blower assembly in the fireplace making sure to plug the male
electrical connector into the female connector already in the
fireplace (see Figure 2). Be sure also to align ON/OFF switch
on the blower assembly with the hole in the fireplace front
face (see Figure 4).

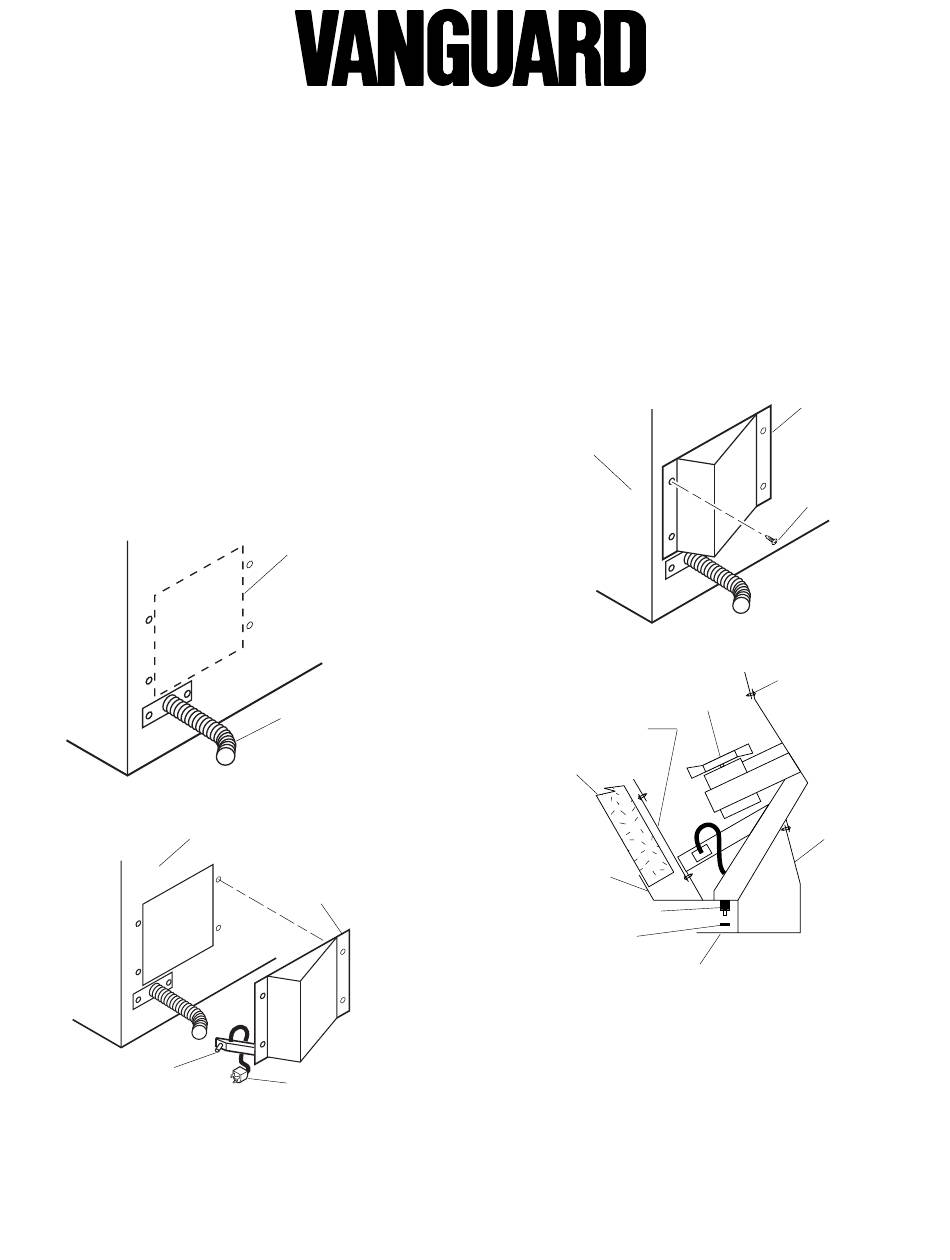

Figure 1 - Locating Knockout Tab
ON/OFF Switch
Figure 2 - Installing Blower Assembly
Knockout Tab
Electrical Connection
Fireplace
Blower
Assembly
Male Electrical
Connector
®
3. Take the 4 sheet metal screws provided and secure blower as-
sembly to the fireplace through the holes provided (see Figure 3).
4. Blower should now be in place and look similar to Figure 4.
Secure blower ON/OFF switch by replacing the knurled nut.
Note: See page 2 for special instructions if "Full View" glass
doors are installed.
Fireplace
Figure 3 - Fastening Sheet Metal Screws to Blower Assembly
Blower
Assembly
Blower Cover Plate
Firebrick
Firebrick
Retainer
ON/OFF Switch
Knurled Nut
Fireplace Face
Figure 4 - Connecting Blower Assembly Power Supply and ON/
OFF Switch (Top View)
Blower Assembly
Sheet Metal
Screw
Screw
Fireplace
