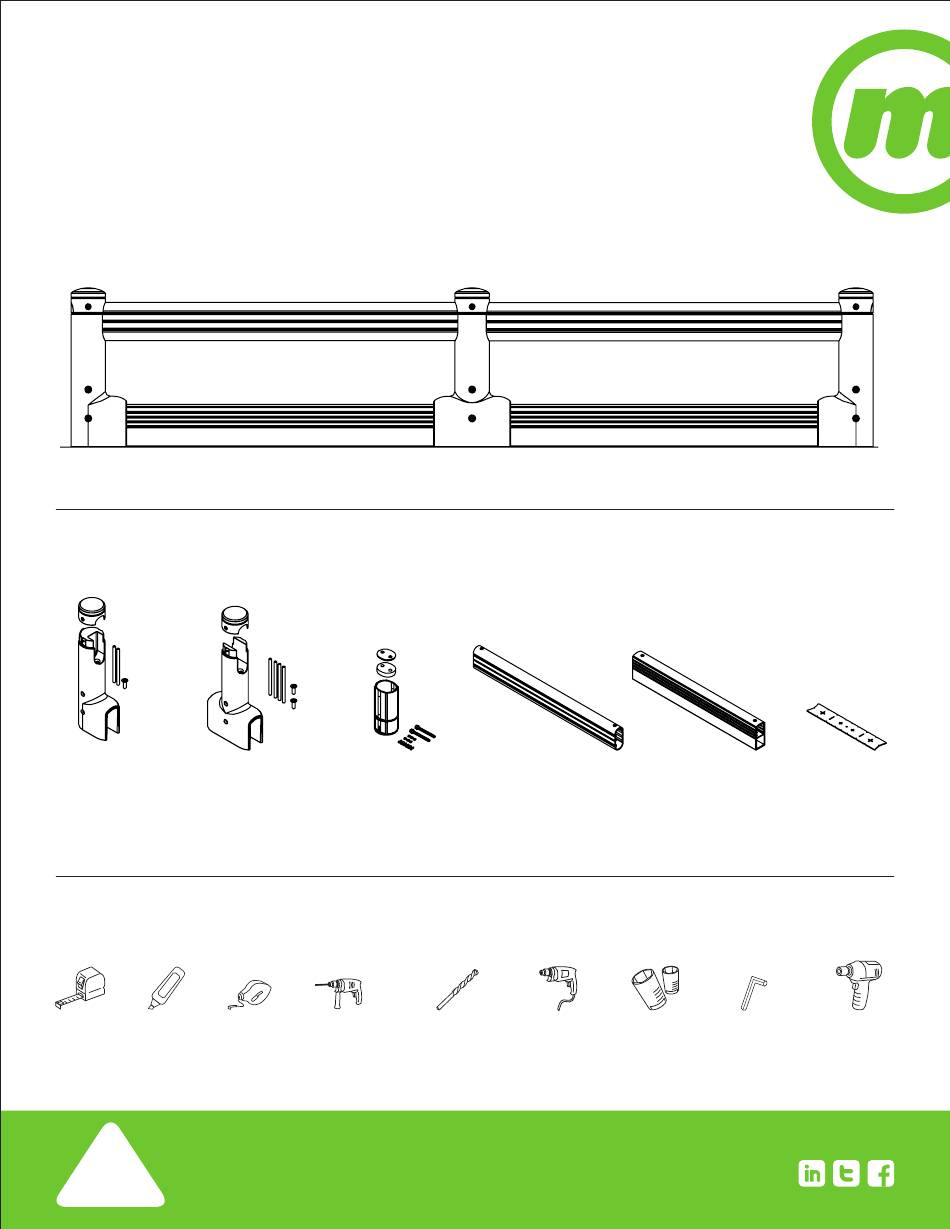

FlexCore Guardrail
INSTALLATION INSTRUCTIONS
Components
End Post Kit
Mid Post Kit
Core Kit
Top Rail
Lower Rail
Template
GR-K-END
GR-K-MID
GR-K-COR
GR-C-RAL
GR-C-EXT
GR-C-TMP
Tools Required
Tape
Marker
Chalk
Masonry Drill Bit
Corded
15/16˝ Socket
7/32˝
Drill with
Rotary
Measure
Line
5/8˝ [16mm]
Drill
& Extension
Hex Key
7/32˝Hex Bit
Hammer
1˝ [25mm]
mccue.com
?
McCue Corporation
McCue UK & Europe
McCue Asia
迈客(厦门)有限公司
Peabody, Massachusetts, USA
Milton Keynes, United Kingdom
+1 (800) 800 8503
+44 (0)1908 365 511
Xiamen, Fujian, China
FlexCore Guardrail | Page 1 of 9
customercare@mccue.com
uksales@mccue.com
+86-592-2200790
Questions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FlexCore Guardrail and is the answer not in the manual?

Questions and answers

Summary of Contents for McCue FlexCore Guardrail

  • Page 1 1˝ [25mm] mccue.com McCue Corporation McCue UK & Europe McCue Asia 迈客(厦门)有限公司 Peabody, Massachusetts, USA Milton Keynes, United Kingdom +1 (800) 800 8503 +44 (0)1908 365 511 Xiamen, Fujian, China FlexCore Guardrail | Page 1 of 9 customercare@mccue.com uksales@mccue.com +86-592-2200790 Questions...
  • Page 2 [152mm] Center to Flange Anchor Hole Mark 5/8" [16mm] Drill Bit Center 1.50in [38mm] Center to Anchor Anchor Hole Mark 5/8" [16mm] Drill Bit Flange Hole Mark 1" [25mm] Drill Bit Alignment Marks FlexCore Guardrail | Page 2 of 9...
  • Page 3: Top View

    5.5˝ [140mm] 5.5in [140mm] 5/8" Diameter 5/8" Diameter Anchor Hole Anchor Hole ↓ ↓ 5.5˝ [140mm] 5.5˝ [140mm] 1" Diameter Flange Hole ↓ 3˝ [75mm] Rotary Hammer with 1˝ & 5/8˝ Drill Bits FlexCore Guardrail | Page 3 of 9...
  • Page 4 Impact Driver with 15/16˝ Socket 5/8 Anchor Washer Damper Aluminum Pin Core Flange Attention: Start thread by hand. Do not 7/32˝ cross thread! Hex Key Drill Optional. FlexCore Guardrail | Page 4 of 9...
  • Page 5 Go to step 14 Mid Post: Continue to next step Attention: If rails are not Template & at the desired length, see Tape Measure cutting instructions 120in 3048mm Use template for this step Template FlexCore Guardrail | Page 5 of 9...
  • Page 6 5/8" Diameter 5/8" Diameter 1" Diameter Flange Hole Anchor Hole Anchor Hole Flange Hole ↓ ↓ ↓ ↓ 3˝ [75mm] 5.5˝ [140mm] 5.5˝ [140mm] 3˝ [75mm] Rotary Hammer with 1˝ & 5/8˝ Drill Bits FlexCore Guardrail | Page 6 of 9...
  • Page 7 Impact Driver with 15/16˝ Socket 5/8 Anchor Washer Damper Core 7/32˝ Hex Key Attention: Repeat steps 9-13 until last post FlexCore Guardrail | Page 7 of 9...
  • Page 8 7/32˝ Hex Key FlexCore Guardrail | Page 8 of 9...
  • Page 9 Installation instructions are provided for guidance only. The seller assumes no liability regarding improper FlexCore Guardrail | Page 9 of 9 installation or misapplication of its products. It is the installer’s responsibility to check for proper installation and, if in doubt, contact McCue Customer Care for assistance. ©2017 McCue Corporation. Jun 2017.
  • Page 10 Lower Rail Template Measure Line Drill GR-C-RAL GR-C-EXT GR-C-TMP mccue.com McCue Corporation McCue UK & Europe McCue Asia Peabody, Massachusetts, USA Milton Keynes, United Kingdom 迈客(厦门)有限公司 +1 (800) 800 8503 +44 (0)1908 365 511 Xiamen, Fujian, China customercare@mccue.com uksales@mccue.com +86-592-2200790...
  • Page 11 Template & Tape Measure Step 1: Measure to and place template at new core center. Use template to mark anchor holes and pin hole(s). Tape Measure Step 2: Measure distance between the pin hole and your newly marked pin mark. Cutting Extrusions to Length | Page 2 of 6...
  • Page 12 Flange Hole Extrusion Cut Line 2 1/8in [54mm] Tape Measure Step 3: On bottom rail extrusion, measure & mark new pin hole using dimension from Step 2. Mark new extrusion cut length at 2-1/8” [54mm] offset from pin hole mark. Drill with 1˝...
  • Page 13: Side View

    Step 5: Cut extrusion on new cut line. TOP VIEW Measure Pin Center to Pin Center SIDE VIEW Step 6: Once custom-length bottom rail and both posts are installed, measure between pin centers. Cutting Extrusions to Length | Page 4 of 6...
  • Page 14 Pin Hole Extrusion Cut Line 1.50in [38mm] Tape Measure & Marker Step 7: On top rail extrusion, measure and mark new pin hole using dimension from step 6. Mark your new cutting line at 1.5” [38mm] offset from the new Pin hole mark. Mark on both top and bottom of extrusion.
  • Page 15 Cutting Extrusions to Length | Page 6 of 6 installation or misapplication of its products. It is the installer’s responsibility to check for proper installation and, if in doubt, contact McCue Customer Care for assistance. ©2017 McCue Corporation. Jun 2017.
