Easi-Dec Access Systems Ltd.,
Merlin House,
Blaydon Road,
Sandy
SG19 1RZ
Tel:
+44 ( 0 ) 1767 691812
Fax:
+44 ( 0 ) 1767 691802
E-Mail:
info@easi-dec.com
Internet: www.easi-dec.com
Copyright © 2012 Kee Safety Ltd. All rights reserved.
SAFETY AT THE HIGHEST LEVEL
Easi-Dec
Dormer
Platform System
Assembly Instructions
DS010
Issue 01
Advertisement
Summary of Contents for Easi-Dec Dormer

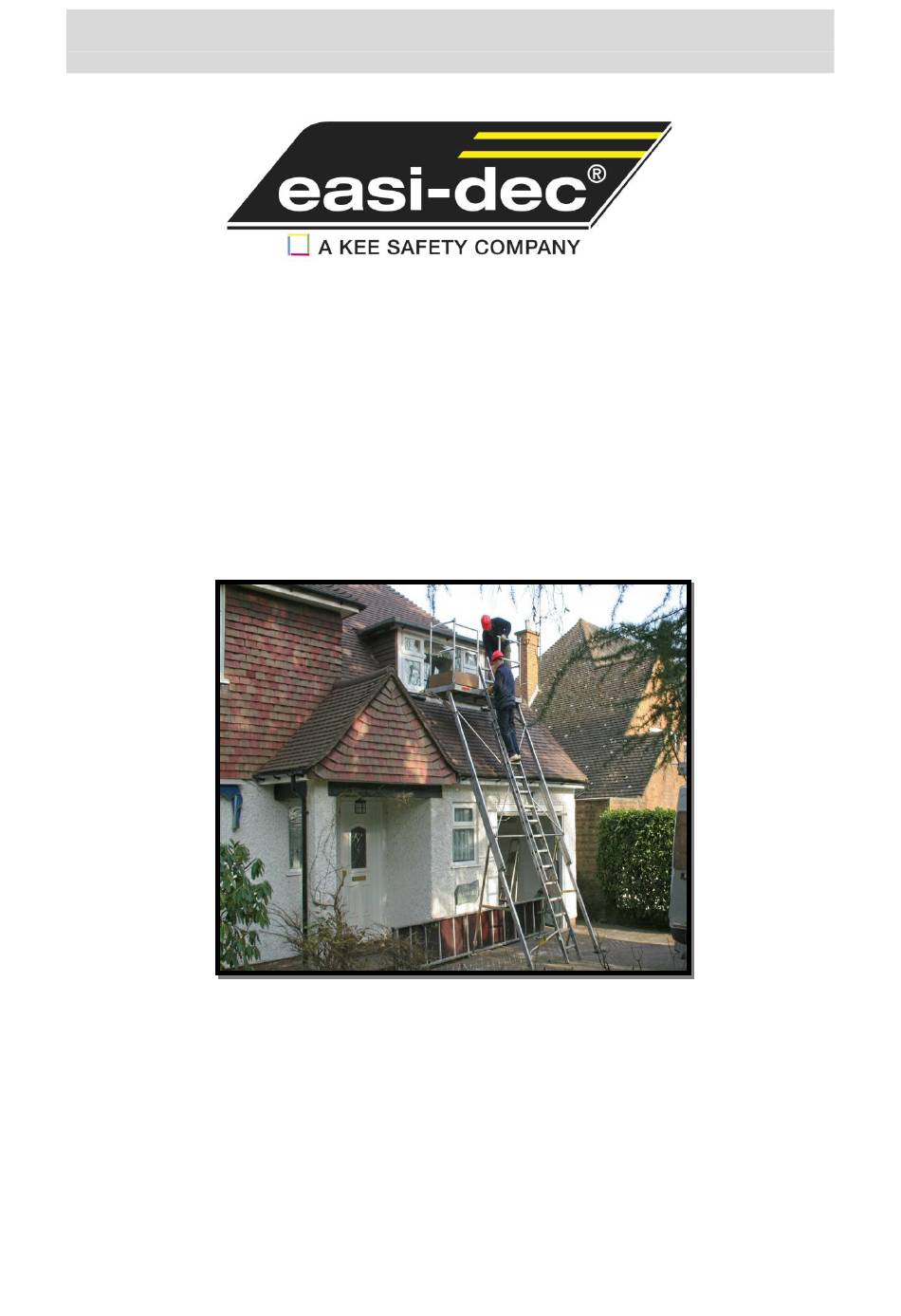

- Page 1 DS010 Issue 01 SAFETY AT THE HIGHEST LEVEL Easi-Dec Dormer Platform System Assembly Instructions Easi-Dec Access Systems Ltd., Merlin House, Blaydon Road, Sandy SG19 1RZ Tel: +44 ( 0 ) 1767 691812 Fax: +44 ( 0 ) 1767 691802 E-Mail: info@easi-dec.com...
- Page 2 DS010 Issue 01 PLEASE BE ADVISED: Before assembling the Dormer system for the first time, it is highly recommended that Installers familiarise themselves with the component parts and carry out a test assembly and disassembly in a safe area away from the point of final installation. All component parts detailed in the operating instructions must be used in the assembly of the system.
- Page 3 DS010 Issue 01 Step 7 Step 8 Pull out the Clips and release the two Cross Braces from their Fit the Horizontal Brace over the retaining studs. stowed position. Step 9 Step 10 Swing out each Diagonal Brace over to the opposite Leg. Secure each Brace onto the retaining studs using the ‘R’...
- Page 4 Foot the Ladder or use a suitable Ladder safety device, such as Positions the Left Guardrail over your shoulder, when climbing the Easi-Dec Ladder spurs shown in Fig 3. Climb the Ladder and Tie off Ladder maintain three points of contact. REMEMBER: When fitting both sides with the Ladder Ties provided.
- Page 5 Always tie off the Dec to the structure with a suitable Ring Bolt anchor for the base material and make sure it is installed correctly as per manufacturer’s instruction. It is important when handling the Easi-Dec products in elevated weather temperatures that the appropriate PPE is used.
