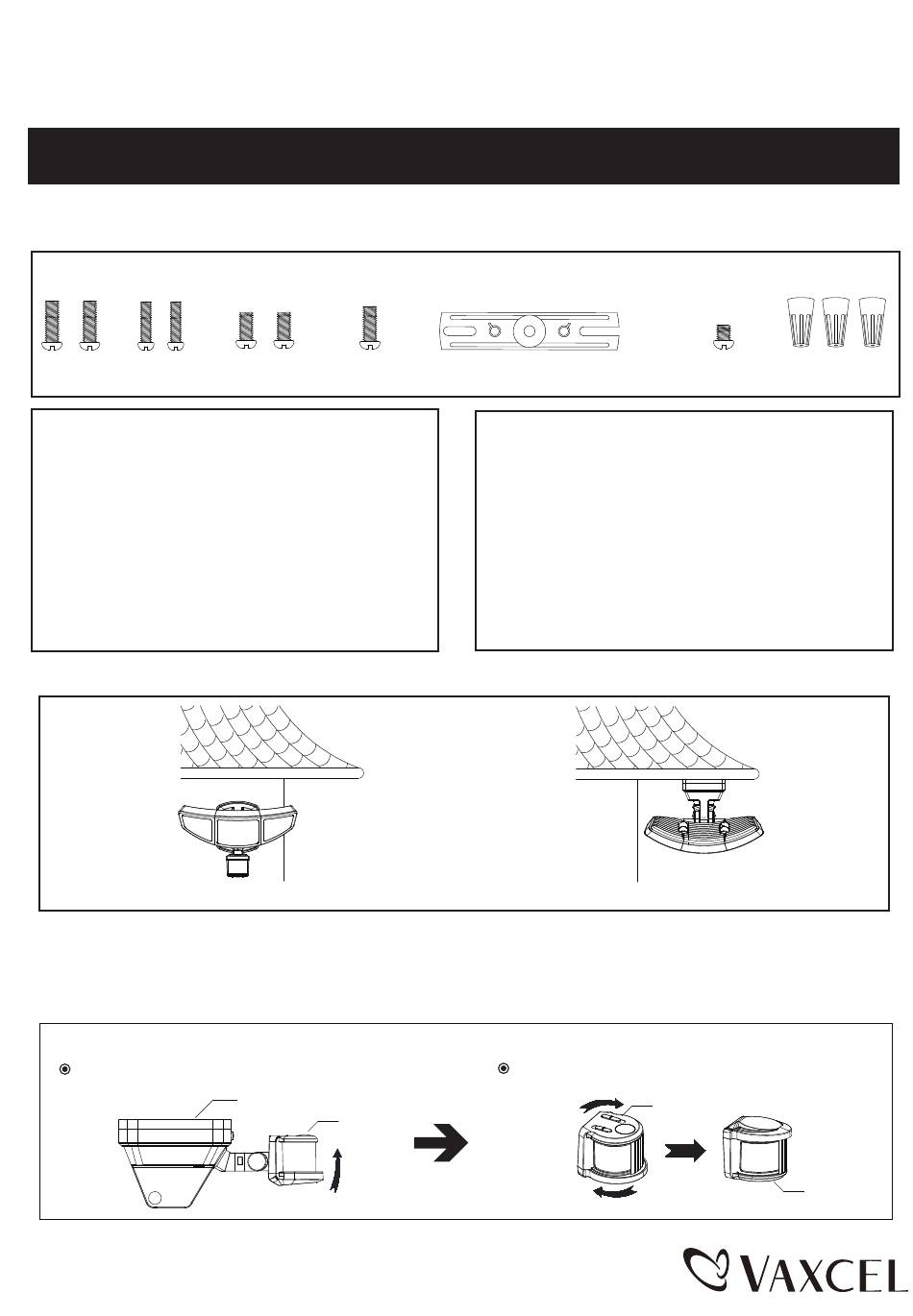

ASSEMBLY AND INSTALLATION
T0270 / T0271
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Mounting Screw X2
Mounting Screw X2
#6/32 X1/2 in
#8/32X1/2 in
Important to Know:
1. If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2. This fixture requires a 120 VAC, 60 Hz power
source.
3. For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Maximum Wattage: 34 W
Working Temperature Range: -4
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Read notes section on page.4 and page.5 for additional information about mounting location of fixture.
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
For eave mounted only:
Swing the sensor head towards the mounting bracket.
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw X2
Mounting Bracket Screw
#10/24 X1/4 in
0 F ~ 113 0 F
Mounting Bracket
Controls
Mounting Strap
Features:
1. Energy saving LED fixture.
2. Motion sensor: turns light ON automatically when
motion is detected and turns light OFF automatically
when motion stops.
3. Photocell keeps the light OFF during daylight hours.
4. When in manual override mode, use wall switch
to keep the light ON during the night.
Rotate the sensor head clockwise 180˚ so the controls face down.
Page 1 / 5
Fixture Mounting Screw
Eave Mounted
Controls
160518
Wire Nut X3
Controls

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T0270 and is the answer not in the manual?

Questions and answers

Related Manuals for Vaxcel T0270

Summary of Contents for Vaxcel T0270

  • Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS T0270 / T0271 WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.

  • Page 2: Installation Steps

    Mounting Bracket Mounting Bracket Screw Back Plate FRONT Wire Nut (G) Light Head Outlet Box Mounting Strap Sensor Installation Steps Turn off the power at fuse or circuit box. Fig. 1 1. The fixture mounting bracket is pre-assembled on the light fixture. Unscrew the fixture mounting screw in order to remove the mounting bracket.

  • Page 3: Function And Operation

    Fig. 3 Fig. 4 Adjustment Sensor Lower For Short Coverage Sensitivity of Motion Sensor ● You can adjust the sensitivity of the motion sensor by using the “SENSITIVITY” selector located on the right side of the bottom surface of the sensor. (See Fig. 6) ●...
  • Page 4 3. 3 HOURS (3H) MODE (nighttime operation only) ● The light turns to high-level brightness (100%) at dusk, and stays "ON" for 3 hours. Then it turns to low-level s brightness. It turns to high-level brightness (100%) when motion is detected, and stays on as long as motion continues.

  • Page 5: Troubleshooting

    4. The sensor will be more sensitive to motion across its Fig. 11 detection path than motion directly towards it. (See Fig.11) Motion Motion 5. To reduce possible nuisances, do not mount the fixture near a heat source like an air conditioner, vent or furnace exhaust, or in a direction facing any reflecting object or other light source.

This manual is also suitable for:

T0271
