Solero Microwave Tissue Ablation Quick Reference Manual

Q U I C K R E F E R E N C E G U I D E
INDICATION FOR USE
The Solero* Microwave Tissue Ablation
(MTA) System and Accessories are
indicated for the ablation of soft
tissue during open, laparoscopic, or
‡
percutaneous procedures. The Solero
MTA System is not intended for
cardiac use.
Note Canada Only: Throughout this
‡
document, any reference to "soft
tissue" means the following tissue
types: liver, kidney, and lung (early
stage non-small cell lung cancer
(NSCLC) and inoperable pulmonary
malignancies).
EQUIPMENT

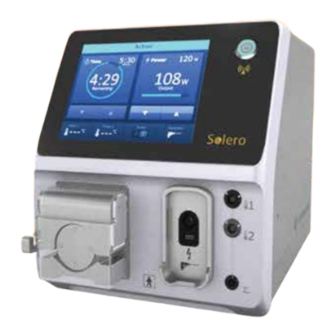

• Solero Generator
• Solero Applicator
• Power cable
• Footswitch (optional)
• Chilled sterile saline (1-3 L)
• IV pole
†
SETUP
1. Attach the power cable into the back of the Solero Generator.
2. Plug the generator into an electrical outlet.
3. Turn the generator power switch on (located on the back).
4. Connect the Solero Applicator's cartridge to the generator's connection.
5. Spike the applicator tubing into a chilled saline bag (1-3 L) and place the bag
above the system with an IV pole.
6. Load the applicator tubing set into the generator pump and pump clip holder.
7. Press the pump button to start the pump.
8. Test the applicator tip at 100 W for 10 seconds with sterile water or saline to
ensure device is functional.
DEVICE PLACEMENT
Ablation zone diameter (A) and length (B)
A
1. Using image guidance such as ultrasound or CT, determine the target location
for the ablation.
2. Insert the applicator using the clinician's preferred method.
3. Place the transition of the stainless steel shaft and the ceramic tip at the center
of the intended area of the ablation.
» When using CT guidance, the transition will show up as a black band in
bone windows.
» When using ultrasound, the emitting antenna is 1.7 cm from the tip
of the device.
4. Make sure that the black shaded area on the shaft of the device is fully inserted
into the tissue.
B
