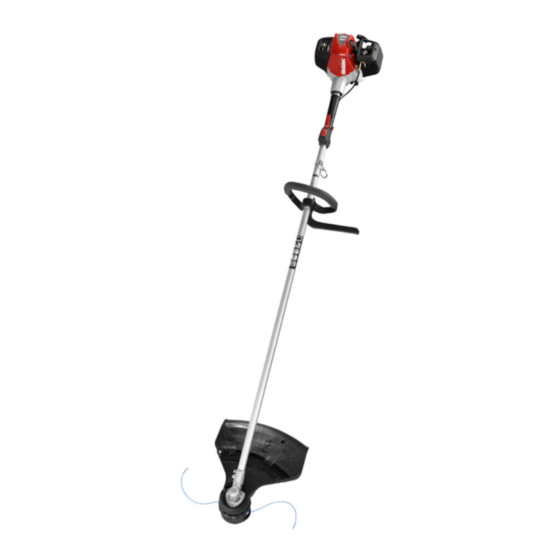

GRASS TRIMMER
/ BRUSH CUTTER
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
X7502341601
© 10/19 ECHO Incorporated
Operator's
Manual
T262X
Advertisement
Table of Contents
Related Manuals for Shindaiwa T262X
Summary of Contents for Shindaiwa T262X
- Page 1 Operator’s Manual T262X GRASS TRIMMER / BRUSH CUTTER The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury.
-
Page 2: Table Of Contents
TABLE OF CONTENTS T262X TABLE OF CONTENTS Introduction ....................3 Servicing Information .................. 3 Parts/Serial Number................3 Service ....................4 Consumer Product Support ..............4 Product Registration ................4 Additional Literature ................4 Safety ......................5 Manual Safety Symbols and Important Information ......5 ...................... - Page 3 T262X TABLE OF CONTENTS Storage ..................... 45 Long Term Storage (Over 30 Days) ..........45 Specifications ................... 46 Product Registration ................. 48 Notes ......................50 X7502341601 © 10/19 ECHO Incorporated...
-
Page 4: Introduction
SERVICING INFORMATION Parts/Serial Number Genuine SHINDAIWA Parts and Assemblies for your SHINDAIWA products are available only from an Authorized SHINDAIWA Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. -
Page 5: Service
Service Service of this product during the warranty period must be performed by an Authorized SHINDAIWA Service Dealer. For the name and address of the Authorized SHINDAIWA Service Dealer nearest you, ask your retailer or call: 1-877-986-7783. Dealer information is also available on WWW.SHINDAIWA-USA.COM. -
Page 6: Safety
SAFETY T262X SAFETY Manual Safety Symbols and Important Information Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you. -
Page 7: International Symbols
T262X SAFETY International Symbols Symbol Description Symbol Description Warning, See Carburetor Adjustment - Operator’s Manual High Speed Mixture Wear Eye, Ear and Carburetor Adjustment - Head Protection Idle Speed Wear Hand Carburetor Adjustment - and Foot Protection Low Speed Mixture... - Page 8 SAFETY T262X Symbol Description Symbol Description Keep Bystanders and Do not use blades. Helpers String line only. Away 15 m (50 ft.). Beware Thrown Do not use blades. Objects String line only. X7502341601 © 10/19 ECHO Incorporated...
-
Page 9: Personal Condition And Safety Equipment
T262X SAFETY Personal Condition and Safety Equipment Cancer and Reproductive Harm www.P65Warnings.ca.gov The muffler or catalytic muffler and surrounding cover may become extremely hot. Always keep clear of exhaust and muffler area, otherwise serious personal injury may occur. Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. - Page 10 SAFETY T262X Hand Protection Wear sturdy, no-slip, rubber work gloves to improve your grip on the handles. Gloves also provide protection against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your hands. Hearing/Ear Protection ECHO recommends wearing personal protection whenever unit is used.
- Page 11 T262X SAFETY The components of this machine generate an electromagnetic field during operation, which may interfere with some pacemakers. To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine.
- Page 12 SAFETY T262X Repetitive Stress Injuries (RSI) It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).
- Page 13 T262X SAFETY Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. Read Manuals • Provide all users of this equipment with literature for instructions on safe operation.
-
Page 14: Equipment
SAFETY T262X Equipment Use only approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO INC. - Page 15 T262X SAFETY Position wiring safely to prevent snagging, separation of ◆ connectors, or breakage during operation. Gather excess wire, and secure with wiring clamp if provided on equipment, or tuck behind the air filter area. Do not place wiring directly against hot engine components.
-
Page 16: Emission Control (Exhaust & Evaporative)
EMISSION CONTROL T262X EMISSION CONTROL (EXHAUST & EVAPORATIVE) CARB And EPA Emissions Control Information The emission control system for the engine is EM (engine modification) and, if the second to last character of the Engine Family on the Emission Control Information label (sample below) is “B”, “C”, “K”, or “T”, the emission... -
Page 17: Description
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your SHINDAIWA dealer. Safety label is for example only. Your label may appear slightly different. - Page 18 DESCRIPTION T262X Power Head Throttle Handle - For Right Hand Throttle Trigger Lockout Stop Switch Support Handle - For Left Hand Drive Shaft Assembly Nylon Cutter Head Cut-off Knife Debris Shield With Cut-off Knife 10. Throttle Trigger 11. Spark Plug 12.
-
Page 19: Contents
Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or SHINDAIWA Dealer of damaged or missing parts. Use the contents list to check for missing parts. Power Head / Drive Shaft Assembly Operator’s Manual... -
Page 20: Assembly
ASSEMBLY T262X ASSEMBLY Support Handle Installation Note: Label shows minimum spacing for support handle location. Install handle spacer (A) inside handle (B). Assure pegs on spacer fit into holes in handle. Spread handle and install over bracket (C) on shaft. -
Page 21: Blade Operation
T262X ASSEMBLY Blade Operation Shield installation Parts Required: Shield without cutoff knife Wear Gloves or personal injury may result: Cutoff knife is sharp. ◆ Gearcase and surrounding area may be hot. ◆ If installed remove nylon line head and shield with cutoff knife. - Page 22 ASSEMBLY T262X Loosen bolt and nut (J, K) holding shield with cutoff knife to shield base. Press tab (L) and slide shield off shield base. Retain line head and shield with cutoff knife for conversion back to nylon line head operation.
- Page 23 T262X ASSEMBLY Install Blade Never reuse a cotter pin - install a new cotter pin each time a blade is installed or replaced. Parts Required: Upper Plate, Lower Plate, 10 mm Nut with Left Hand threads, 2 x 25 mm Cotter Pin, Blade...
-
Page 24: Line Head Operation
ASSEMBLY T262X Line Head Operation Shield Installation Parts Required: Shield with cutoff knife Shield with cutoff knife is for use with the Nylon Line Head only. Install shield without cutoff knife when using plastic or metal blades, or serious injury may result. - Page 25 T262X ASSEMBLY Nylon Line Head Installation Wear Gloves or personal injury may result: Cutoff knife is sharp. ◆ Gearcase and surrounding area may be hot. ◆ Speed Feed Head Parts Required: Speed Feed Head. Make sure shield with cutoff knife and upper plate are properly installed.
- Page 26 ASSEMBLY T262X HDFH Line Head Parts Required: HDFH, washer, nut, split pin Make sure shield with cutoff knife and upper plate are properly installed. Align hole in upper plate with notch in edge of gear housing and insert head locking tool (H) Install HDFH onto upper plate.
-
Page 27: Operation
Fuel Diesel fuels and alternative fuels, such as E15 (15% ethanol), E85 (85% ethanol) or any fuels not meeting Shindaiwa requirements are NOT approved for use in Shindaiwa 2-stroke or Hybrid 4-stroke gasoline engines. Use of diesel or alternative... - Page 28 2-stroke and 2/4-stroke hybrid engines. Two Stroke Oil - A 2-stroke engine oil, such as Shindaiwa branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used. Shindaiwa branded 2-stroke oils meet these standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L- EGD (ISO/CD 13738) and J.A.S.O.
- Page 29 T262X OPERATION Use an approved fuel container. ◆ DO NOT smoke near fuel. ◆ DO NOT allow flames or sparks near fuel. ◆ Fuel tanks/cans may be under pressure. Always loosen ◆ fuel caps slowly allowing pressure to equalize. NEVER refuel a unit when the engine is HOT or RUNNING! ◆...
-
Page 30: Starting Cold Engine
OPERATION T262X After use • Empty the fuel tank prior to storing the unit. Return unused fuel to an approved fuel storage container. Storage - Fuel storage laws vary by locality. Contact your local government for the laws affecting your area. As a precaution, store fuel in an approved, airtight container. - Page 31 T262X OPERATION Choke Move choke (B) to COLD START ) (CLOSED) position. Purge Bulb Pump purge bulb (C) until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an additional 4 or 5 times.
-
Page 32: Starting Warm Engine
OPERATION T262X Starting Warm Engine The starting procedure is the same as Cold Start except DO NOT close the choke, and do not hold throttle trigger fully depressed. The attachment should not move at idle, otherwise serious personal injury may result. -
Page 33: Stopping Engine
T262X OPERATION Recoil Starter Lay the unit on a flat area and keep movable attachment parts clear of all obstacles. Firmly grip throttle handle and throttle trigger lockout with left hand. Rapidly pull recoil starter handle/rope (D) until engine fires. -
Page 34: Operation With Blades
OPERATION T262X Operation With Blades Blade use DEMANDS specific Brush Cutter configuration. Operation without specified shield, barrier bar or U-handle, and harness can result in serious personal injury. Follow installation instructions. PARTS REQUIRED FOR THESE BLADES: Rigid Plastic Pro Maxi-Cut... -
Page 35: Blade Selection
T262X OPERATION Blade Selection The type of Blade used MUST be matched to the type and size of material cut. An improper or dull blade can cause serious personal injury. Blades MUST be sharp. Dull blades increase the chance of kick-out and injury to yourself and bystanders. -
Page 36: Applications
OPERATION T262X Use Shoulder/Waist Harness Use of the Shoulder/Waist Harness is recommended for ALL Trimmer/ Brush Cutter use, not just Blade operation. The Shoulder/Waist Harness when used in a trimming operation with nylon line head suspends the trimmer from the operator's shoulder and reduces operator fatigue. -
Page 37: Operating Techniques
T262X OPERATION Operating Techniques • Debris flows in direction of line head rotation. Change line head position to assure debris flow is directed away from operator. • Keep cutting line away from wire fences to avoid entanglement. • Operate trimmer only with cutting head below knee height. -
Page 38: Blade Cutting Problems
OPERATION T262X Kickout Kickout is also a reactive force caused by resistance to cutting, but the direction of blade thrust is lateral (to the left or right of the blade), instead of forward or back toward the operator. In most cases, Push, Pull, and Kickout can be reduced or eliminated by: •... -
Page 39: Maintenance
T262X MAINTENANCE MAINTENANCE Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit. -
Page 40: Maintenance Intervals
MAINTENANCE T262X Maintenance Intervals REQ’D MAINTENANCE COMPONENT/SYSTEM SKILL PROCEDURE LEVEL Daily or Before Use Air Filter Inspect/Clean * Choke Shutter Inspect/Clean * Fuel System Inspect Cooling System Inspect/Clean Recoil Starter Rope Inspect/Clean * Screws/Nuts/Bolts Inspect/Tighten/Replace * Every Refuel Fuel System... -
Page 41: Lubrication
T262X MAINTENANCE * Replacement is recommended based on the finding of damage or wear during inspection. Lubrication Level 1. Parts Required: Lithium Based Grease. Gear Case Gear cases without grease plug (A) do not require lubrication. Clean all loose debris from gear case. -
Page 42: Nylon Line Head Disassembly Instructions
MAINTENANCE T262X Nylon Line Head Disassembly Instructions ® Note: For normal use, Speed Feed head disassembly is not necessary. However, if circumstances require disassembly, follow these instructions. Press top of locking tabs (A) on ® both sides of Speed Feed head to release cover (B) from eyelet carrier (C). - Page 43 T262X MAINTENANCE Insert one end of trimmer line into an eyelet, and push line equal distance through trimmer head. Hold trimmer head while turning knob clockwise to wind line onto spool until about 13 cm (5 in.) of each line remains exposed.
-
Page 44: Troubleshooting
TROUBLESHOOTING T262X TROUBLESHOOTING ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy Fuel strainer or Clean or replace Fuel at No fuel at fuel line carburetor carburetor See your dealer obstructed No fuel at Carburetor See your dealer cylinder OPEN choke... - Page 45 T262X TROUBLESHOOTING ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy Air filter Air filter Normal wear Clean or replace dirty Contaminants Fuel filter Replace filter or Fuel filter or residue in dirty replace fuel fuel Engine Fuel vent Contaminated...
-
Page 46: Storage
STORAGE T262X STORAGE During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (Over 30 Days) -
Page 47: Specifications
T262X SPECIFICATIONS SPECIFICATIONS MODEL T262X Length w/o cutter head 1790 mm (70.5 in.) Width 326 mm (12.8 in.) Height 356 mm (14 in.) Weight (dry) w/o cutter 5.2 kg (11.5 lb.) head Engine Type Air cooled, two-stroke, single cylinder gasoline engine Bore 34 mm (1.34 in.) - Page 48 PRODUCT REGISTRATION Thank you for choosing Shindaiwa Power Equipment Please go to http://www.shindaiwa-usa.com to register your new product on- line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
-
Page 49: Product Registration
T262X PRODUCT REGISTRATION X7502341601 © 10/19 ECHO Incorporated... - Page 50 NOTES T262X NOTES X7502341601 © 10/19 ECHO Incorporated...
-
Page 51: Notes
T262X NOTES X7502341601 © 10/19 ECHO Incorporated... - Page 52 T95315001001 - T95315999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 -usa www.shindaiwa .com...
