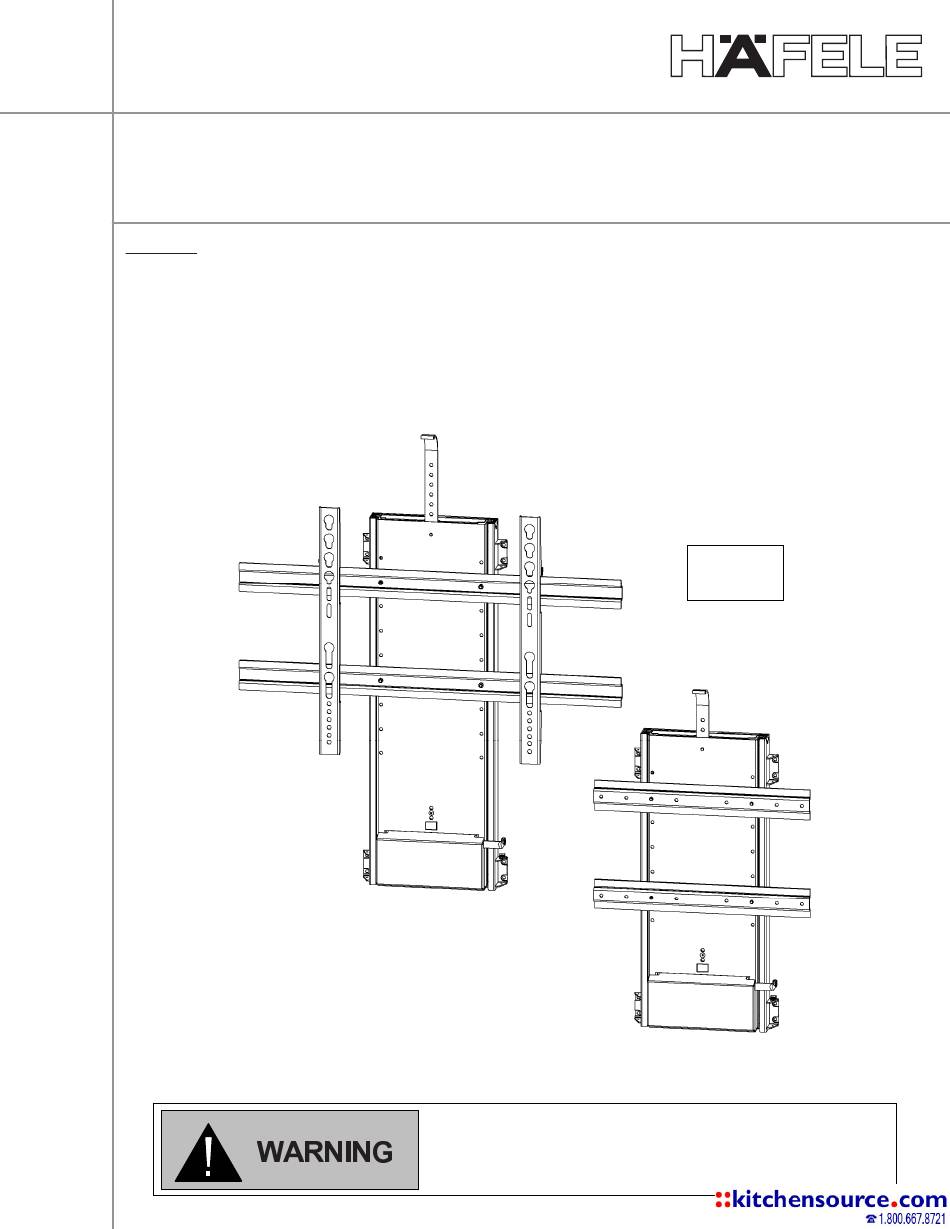

Mounting Instructions
Item No.: 421.68.443 & 421.68.444
Motorized Flat Panel TV Lift
Content
1. Important safety instructions.
2. Specifications and main dimensions.
3. Parts included.
4. Installation.
5. Adjusting the stroke length of the lift.
6. Declaration of conformity.
1
A
421.68.444
ARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL
ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS PROD-
UCT MAY RESULT IN SERIOUS BODILY INJURY.
oad with
min. 5 kg
TS700 A
421.68.443
