Summary of Contents for Alphatech Slim Key Board

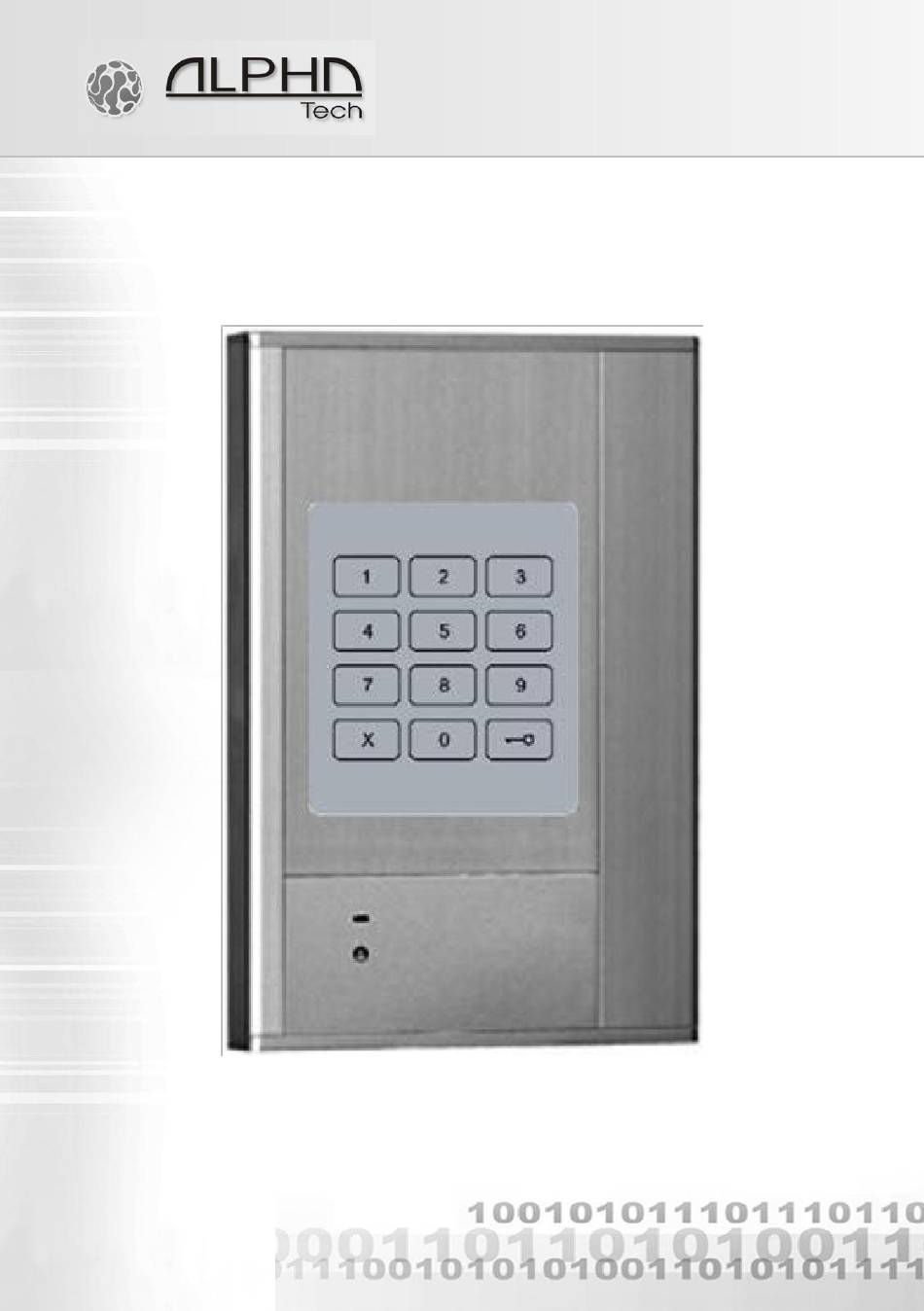

- Page 1 LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Slim Key Board User manual...
- Page 2 Welcome, we congratulate you to good buy code keyboard "SlimKeyBoard". This keyboard manage widely satisfy your need management codes for competence entry into object. Code keyboard can work separately or in connection with SlimDoorPhone. Separate code keyboard is connect on source 12V (DC/AC) and contain one double throw contact.
-
Page 3: Table Of Contents
Table of contents BASIC DESCRIPTION ..................4 ...................... 4 EATURES INSTALL CODE KEYBOARD................5 ..........5 ONTAGE AND CONNECT OARD 2.1.1 Description of keyboard ................5 2.1.2 Open keyboard ..................5 2.1.3 Wall mounting and cables connection ............6 2.1.4 connecting and control elements ............... -
Page 4: Basic Description
1 Basic description 1.1 Features compact very thin modulus with assembly on plaster without the need of other mechanical partpossibility connection door phone SlimDoorPhone with second relay possibility connect lock for open door modes of relay (1 impulse, 2 impulses and switch on / switch off) ... -
Page 5: Install Code Keyboard
2 Install code keyboard SlimKeyBoard is mechanically compact unit, wall-mounted by force of two screws . Bottom and upper forehead is bonded special cement at production, therefore please put in enhanced focus dismounting and mounting code keyboard. 2.1 Montage and connect SlimKeyBoard 2.1.1 Description of keyboard 1. -
Page 6: Wall Mounting And Cables Connection
2.1.3 Wall mounting and cables connection Wall mounting does by two screws, it depends on basis. Into a wall, beton and stone will carry out by force of plug 6mm or 8mm, if background is wood or metal plate, then use special wood screw further to designate, if is wall from metal, then is necessary to the drilled... -
Page 7: Connecting And Control Elements
.On clamp on the right is connected Exit button. Lead to button can be up to 100m, is connected in current loops with separation by optocoupler. Button it is possible set in programme like switch on or switch off as well as is adjustable time press buttons after which will execute closure lock. -
Page 8: Final Enclosure Slimdoorphone
2.1.5 Final enclosure SlimDoorPhone Closure keyboard SlimKeyBoard will carry out opposite way like opening. 1. special tool push back what deepest as it is schematic on picture 2. modulus keyboard push back on backstop in SlimKeyBoard 3. and in direction arrow keys push in below upper forehead SlimKeyBoard, spring snap and tool take out Attention before shut assure, that the isn't keyboard in mode programming and in case connection SlimDoorPhone, that the link in connecting cable. -
Page 9: Connect The Keyboard
2.2 Connect the Keyboard Keyboard work as separate code lock, he has connection power supply 12V, input for departure button and one relay with change-over contact. In case connection by special cable keyboard with SlimDoorPhone characteristics those code lock expand and keyboard can be use not only to control relay in keyboard, but relay in doorphone SlimDoorPhone contol too and use so 10 codes for one and 10 codes for second relay. -
Page 10: Slimkeyboard Services
3 SlimKeyBoard services 3.1 Signalling overview Code keyboard acoustic and optical signalling operation. These signalling can be separately switch off or switch on. Condition Tones –––■––– –––■––– Press button ––██–– ––██–– Confirm –■–■–■– –■–■–■– Error ––▓–▓–––––▓–▓– Programming mode Connection SlimDoorPhone and –▄–■–▄–■–▄–... -
Page 11: Person Inside Object
combination for control relays – symbol X = after pressing doorphone promptly hang up and next cancel action setting numeric combination. Arrival on buttons votes number, like on phone – between press of button must be time less than given to setting appropriate parameter (par.45) in keyboard, after this time doorphone pick up and dial engaged telephone number. -
Page 12: Parameter Programming
To communication with keyboard is using USB cable and that requires driver USB. This driver is on CD , or on our WEBu www.alphatech .cz . Procedure is such, that the to the PC plug in USB cable, PC you invite to setting path to driveru - care don't let driver install automatically, but by hand enter path to driveru. -
Page 13: Programming From A Pc - Slimkeyset Program
4.3 Programming from a PC – SlimKeySet program To setup the unit from a PC you will require a special USB tool cable, available separately, and must first install the USB driver and SlimKeySet software. Refer to the CD for more details. The unit must also be connected to the 12V. Procedure: Connect the Keyboard to the 12V Connect the unit to the PC with the USB tool cable. -
Page 14: Parameter Description
5 Parameter description 5.1 Access codes Parameter Value Description Default Access code hh in sequence p hh… p for closure relay in keyboard p – number of sequence (memory) [0-9] hh – Access code for closure relay 2 - 8 gigits, for storage. Delete is make by pressing combination 1 p and access code is deleted. -
Page 15: Relay
5.2 Relay Parameter Value Description Default Relay working in mode m m – mode of relay [1 - 3] m=1 mode switch - switch on by command or by password to adjusted time (using for electric lock, open gate ...) m=2 mode two impulses - switch on by command or by password on adjusted time, past adjusted time is switch off and again switch on to adjusted time (using electric movable gates - mode wicket) -
Page 16: Basic Parameters
Parameter Value Description Default Time between 2 impulses [sec] dd – duration of delay between 2 impulses of relay [2 digits 00-99] Combination 00 means time 0,5sec 5.3 Basic parameters Parameter Value Description Default Connection keyboard with SlimDoorPhone p – connection SlimDoorPhone with keyboard, p=0 disconnected, p=1 connected Rem: make a difference only in suppression and evaluate commands for SlimDoorPhone... -
Page 17: Presetting And Deleting
Parameter Value Description Default Time between button presses c - maximal time between press buttons If time between two next presses is bigger than c time, the code is not evaluated correctly. Parameter Value Description Default Acoustic signalling a - acoustic signalling (evaluation code, sending command to the SlimDoorPhone...) it is possible switch off a=0 isn't acoustic signalling, a=1 is acoustic signalling Parameter... -
Page 18: Overview Of Parameters
Overview of Parameters Parameter Value Description Default Access code hh in sequence p hh… p for closure relay in keyboard Access code hh in sequence p hh… p for closure relay in SlimDoorPhone Relay working in mode m Relay closing time rr [sec] - command evoked from keyboard Relay closing time ss [sec] - command evoked from Exit button... -
Page 19: Technical Parameters
6 Technical parameters 6.1 Electrical parameters Parameter Value Conditions Power supply keyboard and 12VDC ± 2V , 10-12VAC ± 2V heating Max. consumption keyboard 200mA 12VDC and heating Max. voltage of switch contact At I < 0,5A Max. current of switch contact At U <... -
Page 20: Vrtací Šablona
7 Vrtací šablona SlimKeyBoard – User guide... - Page 21 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
